Silverlight reporting using both HTTP and HTTPS

5 Answers 336 Views

General Discussions

This is a migrated thread and some comments may be shown as answers.

5 Answers, 1 is accepted

answered on 24 Jun 2011, 01:43 PM

Hello Russell,

You simply need to define two endpoints for each of the protocols e.g.:

Copy Code

<endpoint address="https://demos.telerik.com/reporting/reportservice.svc"

binding="basicHttpBinding"

bindingConfiguration="SecuredBasicHttpBindingConfig"

contract="Telerik.Reporting.Service.IReportService">

<identity>

<dns value="localhost" />

</identity>

</endpoint>

<endpoint address="http://demos.telerik.com/reporting/reportservice.svc"

binding="basicHttpBinding"

contract="Telerik.Reporting.Service.IReportService">

<identity>

<dns value="localhost" />

</identity>

</endpoint>

Best wishes,
Steve
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items

answered on 17 Oct 2011, 08:57 PM

Steve,
My problem is similar, but I would like to access the Telerik reporting service over http in development while still allowing https in production environments. I was able to access the Telerik reporting service over http before I tried to set up the https configuration, but now I am getting an error. Since I do not know the port number that the VS.Net web server will be running on until it is running, I can't set an endpoint address in the web.config. When I try to access the Telerik reporting service over http now, I get this error:

Server Error in '/' Application.

Could not find a base address that matches scheme https for the endpoint with binding BasicHttpBinding. Registered base address schemes are [http].

Description: An unhandled exception occurred during the execution of the current web request. Please review the stack trace for more information about the error and where it originated in the code.

Exception Details: System.InvalidOperationException: Could not find a base address that matches scheme https for the endpoint with binding BasicHttpBinding. Registered base address schemes are [http].

Source Error:

An unhandled exception was generated during the execution of the
            current web request. Information regarding the origin and location of the
            exception can be identified using the exception stack trace below.

Stack Trace:

[InvalidOperationException: Could not find a base address that matches scheme https for the endpoint with binding BasicHttpBinding. Registered base address schemes are [http].]
   System.ServiceModel.ServiceHostBase.MakeAbsoluteUri(Uri relativeOrAbsoluteUri, Binding binding, UriSchemeKeyedCollection baseAddresses) +12349612
   System.ServiceModel.Description.ConfigLoader.LoadServiceDescription(ServiceHostBase host, ServiceDescription description, ServiceElement serviceElement, Action`1 addBaseAddress) +12346965
   System.ServiceModel.ServiceHostBase.LoadConfigurationSectionInternal(ConfigLoader configLoader, ServiceDescription description, ServiceElement serviceSection) +67
   System.ServiceModel.ServiceHostBase.ApplyConfiguration() +108
   System.ServiceModel.ServiceHostBase.InitializeDescription(UriSchemeKeyedCollection baseAddresses) +192
   System.ServiceModel.ServiceHost.InitializeDescription(Type serviceType, UriSchemeKeyedCollection baseAddresses) +49
   System.ServiceModel.ServiceHost..ctor(Type serviceType, Uri[] baseAddresses) +151
   System.ServiceModel.Activation.ServiceHostFactory.CreateServiceHost(Type serviceType, Uri[] baseAddresses) +30
   System.ServiceModel.Activation.ServiceHostFactory.CreateServiceHost(String constructorString, Uri[] baseAddresses) +422
   System.ServiceModel.HostingManager.CreateService(String normalizedVirtualPath) +1461
   System.ServiceModel.HostingManager.ActivateService(String normalizedVirtualPath) +44
   System.ServiceModel.HostingManager.EnsureServiceAvailable(String normalizedVirtualPath) +651

[ServiceActivationException: The service '/ReportService.svc' cannot be activated due to an exception during compilation.  The exception message is: Could not find a base address that matches scheme https for the endpoint with binding BasicHttpBinding. Registered base address schemes are [http]..]
   System.Runtime.AsyncResult.End(IAsyncResult result) +688590
   System.ServiceModel.Activation.HostedHttpRequestAsyncResult.End(IAsyncResult result) +190
   System.ServiceModel.Activation.HostedHttpRequestAsyncResult.ExecuteSynchronous(HttpApplication context, String routeServiceVirtualPath, Boolean flowContext, Boolean ensureWFService) +234
   System.ServiceModel.Activation.HttpHandler.ProcessRequest(HttpContext context) +24
   System.Web.CallHandlerExecutionStep.System.Web.HttpApplication.IExecutionStep.Execute() +100
   System.Web.HttpApplication.ExecuteStep(IExecutionStep step, Boolean& completedSynchronously) +75

Here is the system.serviceModel section from my web.config:

<system.serviceModel>

<bindings>

<basicHttpBinding>

<binding name="BasicHttpsBindingConfig">

<security mode="Transport"/>

</binding>

</basicHttpBinding>

<webHttpBinding>

<binding name="WebHttpBindingConfig">

<security mode="Transport"/>

</binding>

</webHttpBinding>

</bindings>

<services>

<service

name="Telerik.Reporting.Service.ReportService"

behaviorConfiguration="ReportServiceBehavior">

<endpoint

address=""

binding="basicHttpBinding"

contract="Telerik.Reporting.Service.IReportService">

<identity>

<dns value="localhost" />

</identity>

</endpoint>

<endpoint

address=""

binding="basicHttpBinding"

bindingConfiguration="BasicHttpsBindingConfig"

contract="Telerik.Reporting.Service.IReportService">

<identity>

<dns value="localhost" />

</identity>

</endpoint>

<endpoint

address="resources"

binding="webHttpBinding"

bindingConfiguration="WebHttpBindingConfig"

behaviorConfiguration="WebBehavior"

contract="Telerik.Reporting.Service.IResourceService"/>

<endpoint

address="mex"

binding="mexHttpsBinding"

contract="IMetadataExchange" />

</service>

</services>

<behaviors>

<serviceBehaviors>

<behavior name="">

<serviceMetadata httpGetEnabled="true" />

<serviceDebug includeExceptionDetailInFaults="false" />

</behavior>

<behavior name="ReportServiceBehavior">

<serviceMetadata httpsGetEnabled="true" />

<serviceDebug includeExceptionDetailInFaults="false" />

</behavior>

</serviceBehaviors>

<endpointBehaviors>

<behavior name="WebBehavior">

<webHttp />

</behavior>

</endpointBehaviors>

</behaviors>

<serviceHostingEnvironment aspNetCompatibilityEnabled="true"

multipleSiteBindingsEnabled="true" />

</system.serviceModel>

answered on 20 Oct 2011, 02:06 PM


Hi Brian,

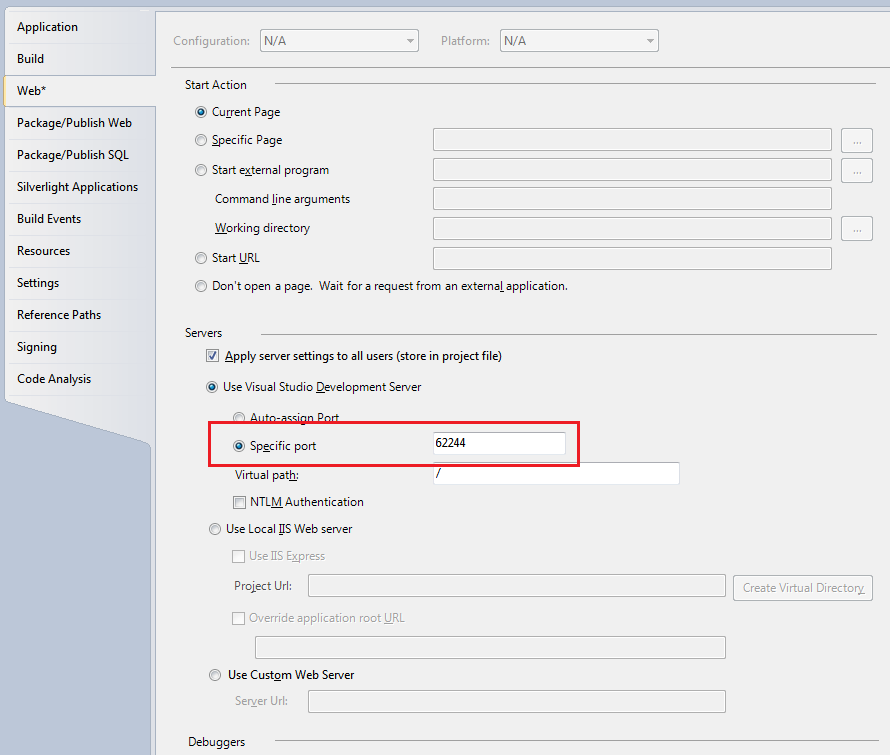

You can instruct the VS Web Development Server to use always one and the same port every time through the settings of the Web Application project. Please, check the attached screenshot. In this way each time you start the application the port number will be the same.

Hope this helps.

Kind regards,
Chavdar
the Telerik team
