Hello,
I was able to successfully get the drag and drop functionality to work with my radgrid. However, a small issue I am having is that as I drag my row from a grid on the top of my page to a grid on the bottom of my page, the grid I am dragging the row from begins to scroll as I am moving out of that grid. Is there anyway I can disable the scrolling on the grid as I am dragging items from it.

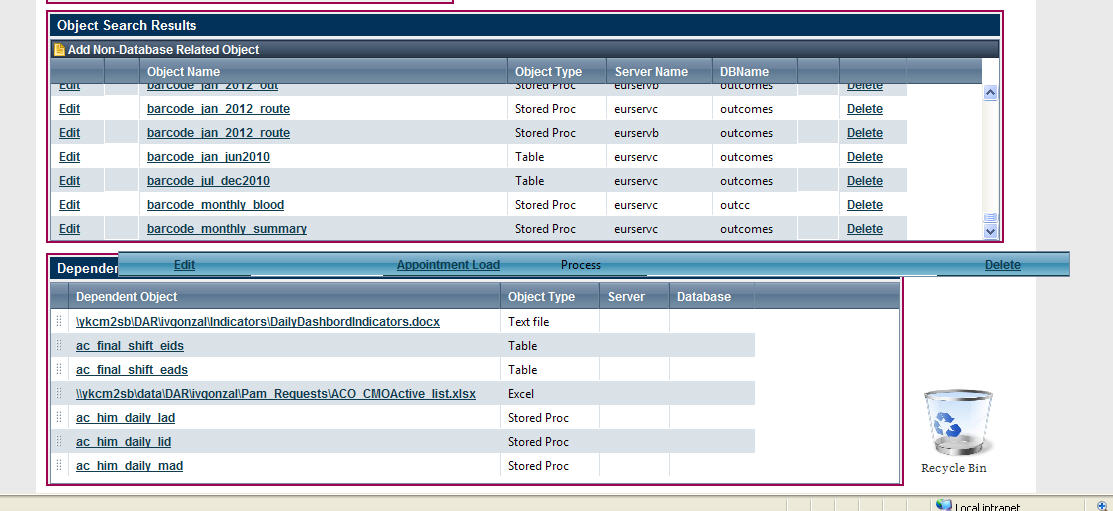

I attached a picture of my issue to this post. As you can see from the image, when I move the row from the top grid to the bottom of the page, the top grid scrolls all the way to the bottom. I would like to freeze the scrolling of that grid as I drag items from it.
Please Help
I was able to successfully get the drag and drop functionality to work with my radgrid. However, a small issue I am having is that as I drag my row from a grid on the top of my page to a grid on the bottom of my page, the grid I am dragging the row from begins to scroll as I am moving out of that grid. Is there anyway I can disable the scrolling on the grid as I am dragging items from it.
I attached a picture of my issue to this post. As you can see from the image, when I move the row from the top grid to the bottom of the page, the top grid scrolls all the way to the bottom. I would like to freeze the scrolling of that grid as I drag items from it.
Please Help
5 Answers, 1 is accepted
0
Accepted
Hi Aret,
In order to avoid this behaviour you could set the "AllowAutoScrollOnDragDrop" client property to "false" like this:
I hope this helps.
Greetings,
Maria Ilieva
the Telerik team
In order to avoid this behaviour you could set the "AllowAutoScrollOnDragDrop" client property to "false" like this:
<
telerik:RadGrid
runat
=
"server"
ID
=
"grdPendingOrders"
OnNeedDataSource
=
"grdPendingOrders_NeedDataSource"
AllowPaging
=
"True"
Width
=
"350px"
OnRowDrop
=
"grdPendingOrders_RowDrop"
AllowMultiRowSelection
=
"true"
PageSize
=
"30"
EnableHeaderContextMenu
=
"true"
>
<
MasterTableView
DataKeyNames
=
"OrderId"
TableLayout
=
"Fixed"
>
<
Columns
>
<
telerik:GridDragDropColumn
HeaderStyle-Width
=
"18px"
Visible
=
"false"
/>
</
Columns
>
</
MasterTableView
>
<
ClientSettings
AllowRowsDragDrop
=
"True"
AllowColumnsReorder
=
"true"
AllowAutoScrollOnDragDrop
=
"false"
ReorderColumnsOnClient
=
"true"
>
<
Resizing
AllowColumnResize
=
"true"
/>
<
Selecting
AllowRowSelect
=
"True"
EnableDragToSelectRows
=
"false"
/>
<
ClientEvents
OnRowDropping
=
"onRowDropping"
/>
<
Scrolling
AllowScroll
=
"true"
UseStaticHeaders
=
"true"
/>
</
ClientSettings
>
<
PagerStyle
Mode
=
"NumericPages"
PageButtonCount
=
"4"
/>
</
telerik:RadGrid
>
I hope this helps.
Greetings,
Maria Ilieva
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
0
![](/forums/images/avatarimages/default.gif)
Aret
Top achievements
Rank 1
answered on 29 Jun 2012, 05:45 PM
THANK YOU SO MUCH MARIA! That was the answer I was looking for.
0
![](/forums/images/avatarimages/default.gif)
MDS
Top achievements
Rank 1
answered on 31 Oct 2014, 03:44 PM
Dears,
Is it possible to do the same on the custom RadGridView (Winforms) ?
AllowAutoScrollOnDragDrop does not exist.
Best regards,
Dmitriy Utsmiyev.
Is it possible to do the same on the custom RadGridView (Winforms) ?
AllowAutoScrollOnDragDrop does not exist.
Best regards,
Dmitriy Utsmiyev.
0
Hello Dmitriy,
Thank you for writing.
RadGridView from the Telerik UI for WinForms suite does not offer such a property. However, this is a reasonable request. I have logged it in our feedback portal. You can track its progress, subscribe for status changes and add your vote/comment to it on the following link - feedback item.
I have also updated your Telerik points.
Currently, the possible solution that I can suggest is to adjust manually the TableElement.VScrollBar.Value. If the drag and drop functionality is implemented as it is demonstrated in the GridView >> Drag and Drop help article, you can use the following example to stop the scrolling behavior when dragging a row:
I hope this information helps. Should you have further questions, I would be glad to help.
Regards,
Desislava
Telerik
Thank you for writing.
RadGridView from the Telerik UI for WinForms suite does not offer such a property. However, this is a reasonable request. I have logged it in our feedback portal. You can track its progress, subscribe for status changes and add your vote/comment to it on the following link - feedback item.
I have also updated your Telerik points.
Currently, the possible solution that I can suggest is to adjust manually the TableElement.VScrollBar.Value. If the drag and drop functionality is implemented as it is demonstrated in the GridView >> Drag and Drop help article, you can use the following example to stop the scrolling behavior when dragging a row:
RadDragDropService dragDropService;
int
scrollValue = 0;
public
Form1()
{
InitializeComponent();
dragDropService =
this
.leftGrid.GridViewElement.GetService<RadDragDropService>();
dragDropService.Started += dragDropService_Started;
leftGrid.TableElement.VScrollBar.ValueChanged += VScrollBar_ValueChanged;
}
private
void
dragDropService_Started(
object
sender, EventArgs e)
{
scrollValue =
this
.leftGrid.TableElement.VScrollBar.Value;
}
private
void
VScrollBar_ValueChanged(
object
sender, EventArgs e)
{
if
(dragDropService !=
null
&& dragDropService.State == RadServiceState.Working)
{
this
.leftGrid.TableElement.VScrollBar.Value = scrollValue;
}
}
I hope this information helps. Should you have further questions, I would be glad to help.
Regards,
Desislava
Telerik
Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.
0
![](/forums/images/avatarimages/default.gif)
MDS
Top achievements
Rank 1
answered on 10 Nov 2014, 10:23 AM
Desislava,
It work, thanks.
Best regards,
Dmitriy Utsmiyev.
It work, thanks.
Best regards,
Dmitriy Utsmiyev.
