RadChart MOSS 2007 WebPart

[talha]

sing System;
using System.Runtime.InteropServices;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Xml.Serialization;
using System.Drawing;
using Microsoft.SharePoint;
using Microsoft.SharePoint.WebControls;
using Microsoft.SharePoint.WebPartPages;
using Telerik.WebControls;
using Telerik.WebControls.Dialogs;
using Telerik.Charting;
using Telerik.Charting.Styles;
namespace telerik
{
    [Guid("fabcf876-e087-4609-8c4c-b236a86750c7")]
    public class telchart : Microsoft.SharePoint.WebPartPages.WebPart
    {
        private bool _error = false;
        private string _myProperty = null;







        [Personalizable(PersonalizationScope.Shared)]
        [WebBrowsable(true)]
        [System.ComponentModel.Category("My Property Group")]
        [WebDisplayName("MyProperty")]
        [WebDescription("Meaningless Property")]
        public string MyProperty
        {
            get
            {
                if (_myProperty == null)
                {
                    _myProperty = "Hello SharePoint";
                }
                return _myProperty;
            }
            set { _myProperty = value; }
        }


        public telchart()
        {
            this.ExportMode = WebPartExportMode.All;
        }



        /// <summary>
        /// Create all your controls here for rendering.
        /// Try to avoid using the RenderWebPart() method.
        /// </summary>
        ///


        protected override void Render(System.Web.UI.HtmlTextWriter writer)
        {
            RenderChildren(writer);



        }





        protected override void CreateChildControls()
        {
            if (!_error)
            {
                try
                {

                    base.CreateChildControls();




                    base.CreateChildControls();
                    RadChart myc = new RadChart();
                    ChartSeries mcs = new ChartSeries();
                    mcs.Type = ChartSeriesType.Pie;


                    myc.RadControlsDir = "~/_layouts/RadControls/";
                    Controls.Add(myc);







                }
                catch (Exception ex)
                {
                    HandleException(ex);
                }
            }
        }

        /// <summary>
        /// Ensures that the CreateChildControls() is called before events.
        /// Use CreateChildControls() to create your controls.
        /// </summary>
        /// <param name="e"></param>
        protected override void OnLoad(EventArgs e)
        {
            if (!_error)
            {
                try
                {
                    base.OnLoad(e);
                    this.EnsureChildControls();







                }
                catch (Exception ex)
                {
                    HandleException(ex);
                }
            }
        }

        /// <summary>
        /// Clear all child controls and add an error message for display.
        /// </summary>
        /// <param name="ex"></param>
        private void HandleException(Exception ex)
        {
            this._error = true;
            this.Controls.Clear();
            this.Controls.Add(new LiteralControl(ex.Message));
        }
    }
}

hello,

im developing a telerik chart web part in moss 2007, here is the code

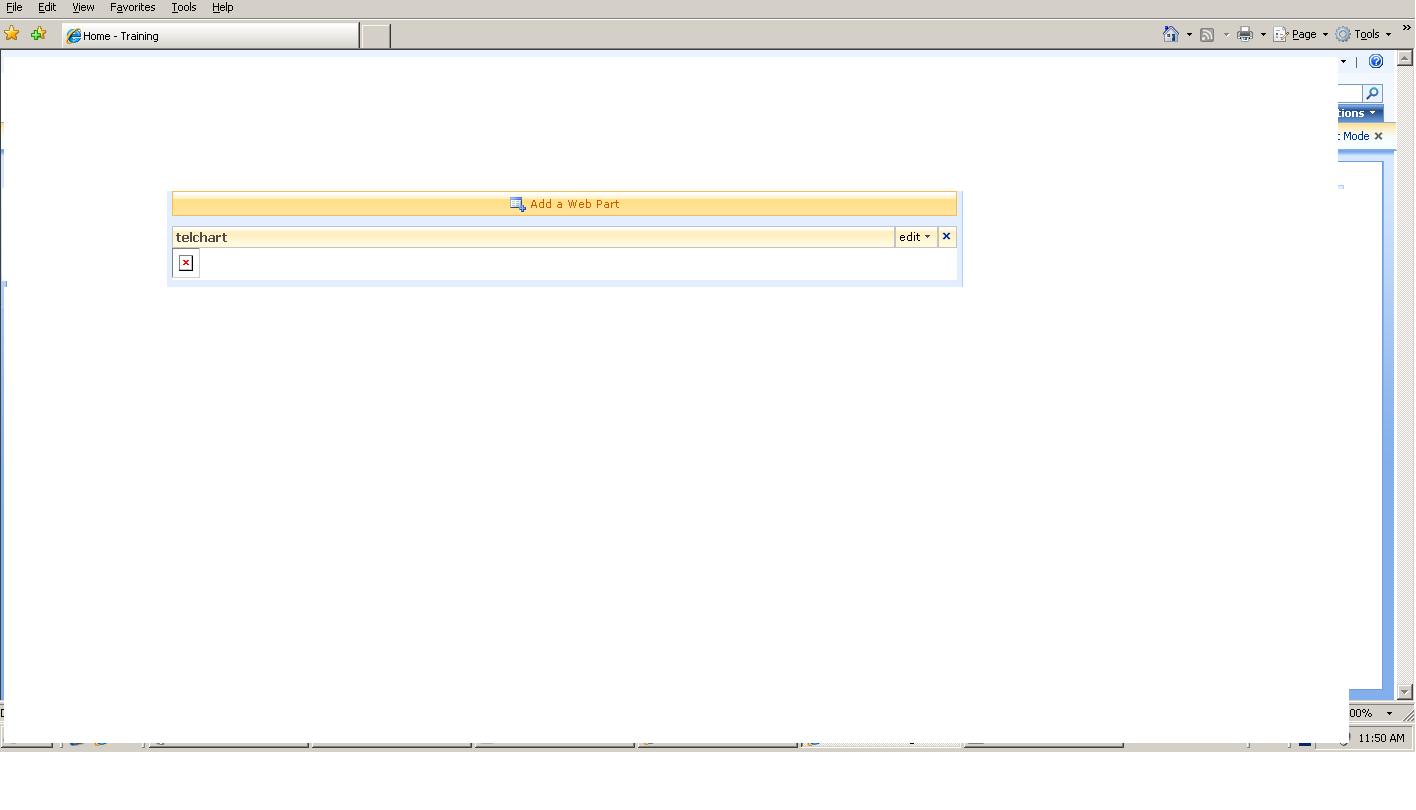

the problem is that when the web part loads im not getting any image of a chart ive attached a jpeg image...

any suggestions ? thanks

[Ves]

Hi talha,

Please, check the "Integrating RadControls in Sharepoint" section of our online help. In addition, here are some general hints about RadChart -- make sure the chart httphandler is correctly registered in your moss site web.config file. In this page you can find details about extending your moss site with MS ASP.NET AJAX. In a similar manner, you need to add this line to the <httphandlers> section:

<add path="ChartImage.axd" type="Telerik.Web.UI.ChartHttpHandler" verb="*" validate="false"/>

RadChart uses an additional namespace -- Telerik.Charting, you may need to add an additional tag in the safe controls section.

In addition, RadChart needs the SessionState by default. If you have disabled it - you may configure RadChart not to use it. You can find more details here.

Finally, you can check this forum thread, discussing RadChart and MOSS. Hope this helps.

Greetings,
Ves
the Telerik team
