Predictable stack layout heights

2 Answers 21 Views
Button Grid StackLayout
Joel
Top achievements
Rank 3
Bronze
Iron
Iron
Joel asked on 30 May 2025, 02:03 PM

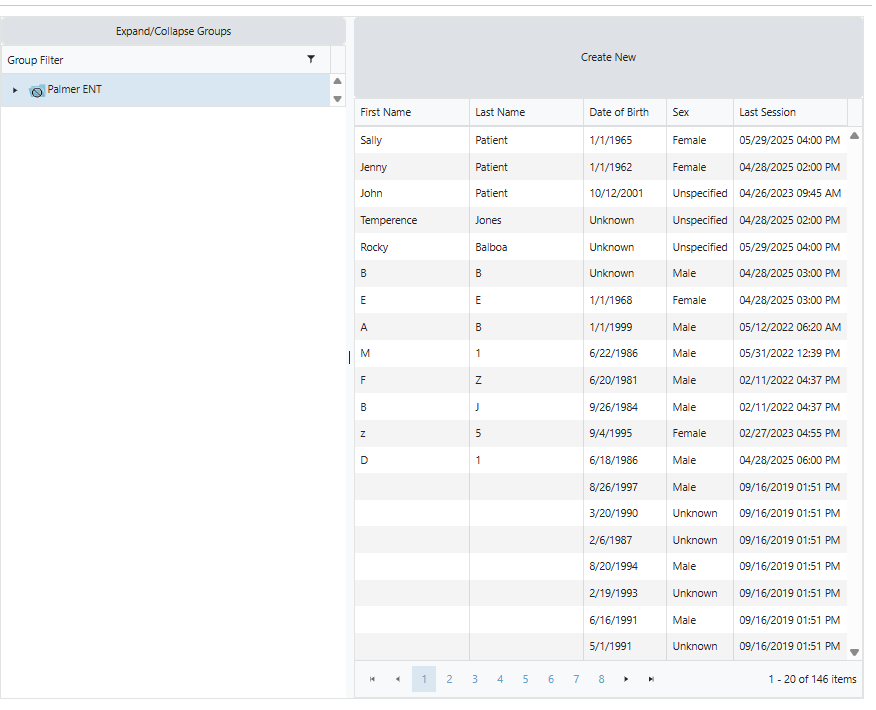

Can you tell me how to get a consistent height for my huge "Create New" button?  I expected it to just use the space it needed instead of being 5X the size it is.

.gsi-height-32px{
    height: 32px !important;
}
<TelerikStackLayout Height="100%"
                    Width="100%"
                    Orientation="StackLayoutOrientation.Vertical">

    <TelerikButton OnClick="@OnCreate"
                   Class="gsi-width-100pct gsi-height-32px">
        Create New
    </TelerikButton>

    <TelerikGrid Data=@Patients
                 SelectedItems="SelectedPatients"
                 Pageable=true
                 PageSize="20"
                 Height="100%"
                 SelectionMode=GridSelectionMode.Single
                 SelectedItemsChanged="@((IEnumerable<Gsi.Customer.Models.Person> m) => OnPatientSelected(m))">

        <GridColumns>
            <GridColumn Field=@nameof(Person.FirstName) Title="First Name" />
            <GridColumn Field=@nameof(Person.LastName) Title="Last Name" />
            <GridColumn Field=@($"{nameof(Patient)}.{nameof(Patient.DateOfBirthDisplay)}") Title="Date of Birth" Width="125px" />
            <GridColumn Field=@($"{nameof(Patient)}.{nameof(Patient.GenderDisplay)}") Title="Sex" Width="100px" />
            <GridColumn Field=@nameof(Person.LastSessionTimestampDisplay) Title="Last Session" />
        </GridColumns>
    </TelerikGrid>
</TelerikStackLayout>

2 Answers, 1 is accepted

Sort by
0
Dimo
Telerik team
answered on 03 Jun 2025, 10:21 AM

Hello Joel,

The Telerik StackLayout component relies on flexbox styles. You can get familiar with the mechanism, then inspect the currently applied styles, and make the desired changes:

https://blazorrepl.telerik.com/mfYUkxvu20rP5lmU35

Regards,
Dimo
Progress Telerik

Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.

0
Joel
Top achievements
Rank 3
Bronze
Iron
Iron
answered on 27 Jun 2025, 02:49 PM

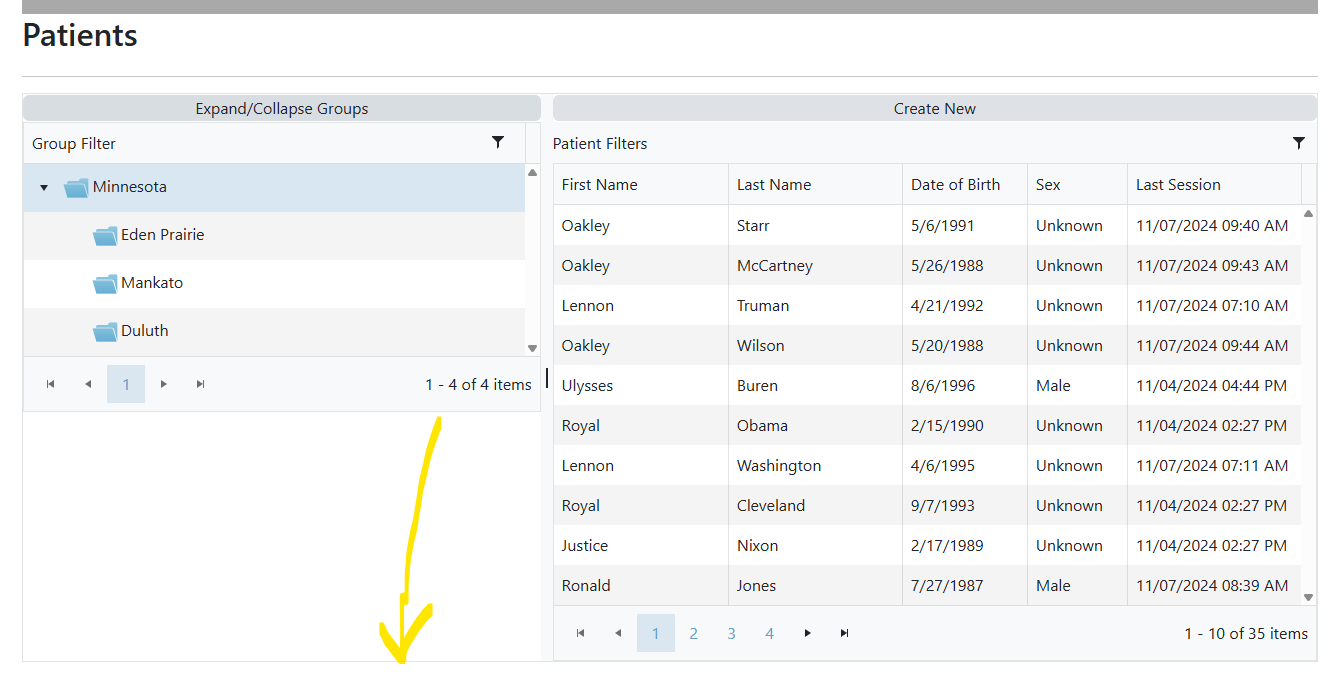

Ultimately, I fixed this by switching to the GridLayout.  However, I still don't like how the treelist doesn't fill the area:


            <TelerikGridLayout Class="grid-layout">
                <GridLayoutRows>
                    <GridLayoutRow Height="28px" />
                    <GridLayoutRow />
                </GridLayoutRows>
                <GridLayoutItems>

                    @if (Groups?.Count > 0)
                    {
                        <GridLayoutItem Row="1">
                            <TelerikButton OnClick="@(() => SetTreeListExpandedItems())"
                                           Class="gsi-width-100pct gsi-padding-0">
                                Expand/Collapse Groups
                            </TelerikButton>
                        </GridLayoutItem>
                    }

                    <GridLayoutItem Row="2">

                        <TelerikTreeList @ref=@TreeListRef
                                         Data="@Groups"
                                         SelectedItems="@SelectedGroups"
                                         IdField="@nameof(Gsi.Customer.Models.Group.Id)"
                                         ParentIdField="@nameof(Gsi.Customer.Models.Group.ParentId)"
                                         OnStateInit="((TreeListStateEventArgs<Gsi.Customer.Models.Group> args) => OnStateInitHandler(args))"
                                         Pageable="true"
                                         PageSize="10"
                                         Sortable="false"
                                         SelectionMode="TreeListSelectionMode.Single"
                                         FilterMode="@TreeListFilterMode.FilterMenu"
                                         SelectedItemsChanged="@((IEnumerable<Gsi.Customer.Models.Group> m) => OnGroupSelected(m))">
                            <TreeListColumns>
                                <TreeListColumn Field="Name" Title="Group Filter" Expandable="true">
                                    <Template>
                                        @{
                                            var item = context as Gsi.Customer.Models.Group;
                                            <img height="32" width="32" src="@item.ImageUrl" />
                                            @item.Name
                                        }
                                    </Template>
                                </TreeListColumn>
                            </TreeListColumns>
                        </TelerikTreeList>

                    </GridLayoutItem>
                </GridLayoutItems>
            </TelerikGridLayout>


Dimo
Telerik team
commented on 30 Jun 2025, 05:59 AM

The TreeList appears to be missing a Height="100%" setting.
