Pie chart labels: can they be configured to overlay the chart itself

[Kyle]

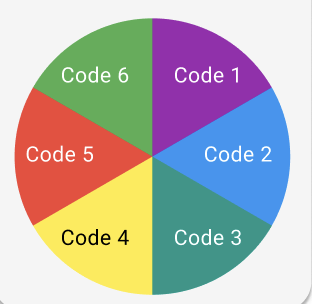

I want to show a series of pie charts but with the series labels on top of each section like so:

I haven't found anything that suggests the labels can be anywhere except attached by lines. Is this possible?

[Hristian Stefanov]

Hi Kyle,

To display the labels on top of each section in a pie chart, you can configure the ChartSeriesLabels to position the labels inside the pie sections. Here's how you can achieve this:

1. Set the Position of Labels: Use the Position property of ChartSeriesLabels and set it to ChartSeriesLabelsPosition.Center to place the labels inside the pie sections.

2. Enable the Labels: Ensure that the labels are enabled by setting the Visible property of ChartSeriesLabels to true.

Here's a code snippet to illustrate this configuration:

<TelerikChart Width="600px" Height="600px">
    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Donut" Data="@donutData"
                     Field="@nameof(MyDonutChartModel.SegmentValue)" CategoryField="@nameof(MyDonutChartModel.SegmentName)">
            <ChartSeriesLabels Visible="true" Position="ChartSeriesLabelsPosition.Center" Template="@labelTemplate"></ChartSeriesLabels>
        </ChartSeries>
    </ChartSeriesItems>

    <ChartTitle Text="Revenue per product"></ChartTitle>
    <ChartLegend Position="ChartLegendPosition.Right">
    </ChartLegend>
</TelerikChart>

@code {
    private string labelTemplate = "#=dataItem.SegmentCategory#";

    public class MyDonutChartModel
    {
        public string SegmentName { get; set; }
        public double SegmentValue { get; set; }
        public bool ShouldShowInLegend { get; set; } = true;
        public string SegmentCategory { get; set; }
    }

    private List<MyDonutChartModel> donutData = new List<MyDonutChartModel>
    {
        new MyDonutChartModel
        {
            SegmentName = "Product 1",
            SegmentValue = 2,
            SegmentCategory = "Category 1"
        },
        new MyDonutChartModel
        {
            SegmentName = "Product 2",
            SegmentValue = 3,
            SegmentCategory = "Category 2"
        },
        new MyDonutChartModel
        {
            SegmentName = "Product 3",
            SegmentValue = 4,
            SegmentCategory = "Category 3"
        }
    };
}

Regards,
Hristian Stefanov
Progress Telerik

[Kyle]

Oh bother, I should have read the docs more closely. I thought all of the position options related to the label's position relative to the line. Thank you. That works for me.
