Nested Grid column sizing

3 Answers 247 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Ed
Top achievements
Rank 1
Ed asked on 23 Nov 2020, 01:37 PM

Hello, I'm having trouble getting nested grid and or column sizes to work.
If we use this as our example: https://docs.telerik.com/blazor-ui/components/grid/hierarchy

The nested grid, DetailTemplate, when expanded fills the row space as defined by the parent grid.

Even if I add Width parameters to the  DetailTemplate Grid and GridColumn controls the DetailTemplate Grid and columns still fill the row space.

Looks funny to me to have the OrderId and DealSize columns in the DetailTemplate to be so large.
Is it possible to size the DetailTemplate Grid and column more appropriatly?

Thanks

3 Answers, 1 is accepted

Sort by
0
Marin Bratanov
Telerik team
answered on 23 Nov 2020, 01:44 PM

Hi Ed,

The grid takes the available width by default, and its columns take the width of the grid too (see more on the behavior of column widths in the docs, as there are several cases depending on the configuration: https://docs.telerik.com/blazor-ui/components/grid/columns/width).

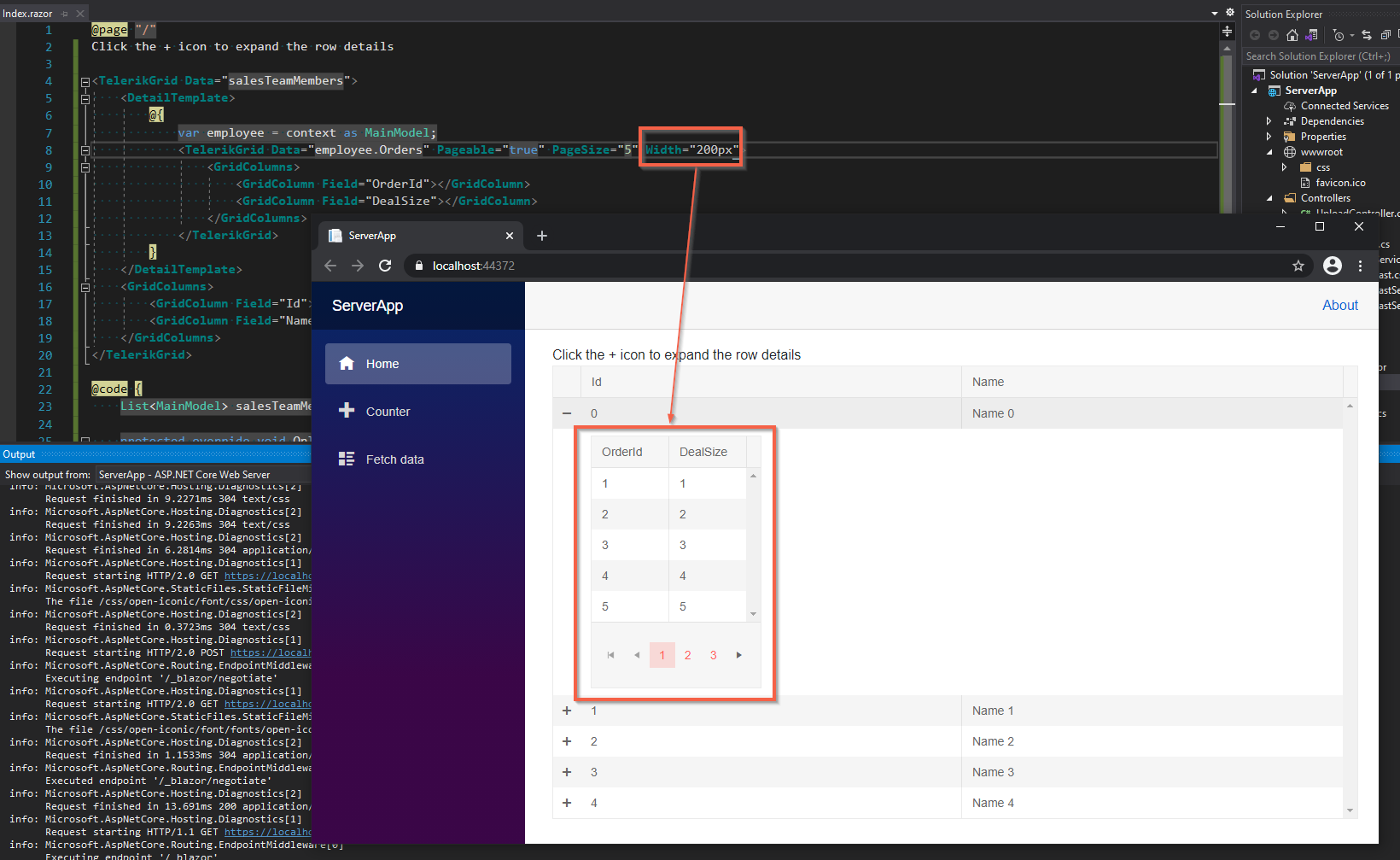

Thus, setting the Width of the nested grid can let you reduce its size, for example (screenshot of the result is attached):



Click the + icon to expand the row details

<TelerikGrid Data="salesTeamMembers">
    <DetailTemplate>
        @{
            var employee = context as MainModel;
            <TelerikGrid Data="employee.Orders" Pageable="true" PageSize="5" Width="200px">
                <GridColumns>
                    <GridColumn Field="OrderId"></GridColumn>
                    <GridColumn Field="DealSize"></GridColumn>
                </GridColumns>
            </TelerikGrid>
        }
    </DetailTemplate>
    <GridColumns>
        <GridColumn Field="Id"></GridColumn>
        <GridColumn Field="Name"></GridColumn>
    </GridColumns>
</TelerikGrid>

@code {
    List<MainModel> salesTeamMembers { get; set; }

    protected override void OnInitialized()
    {
        salesTeamMembers = GenerateData();
    }

    private List<MainModel> GenerateData()
    {
        List<MainModel> data = new List<MainModel>();
        for (int i = 0; i < 5; i++)
        {
            MainModel mdl = new MainModel { Id = i, Name = $"Name {i}" };
            mdl.Orders = Enumerable.Range(1, 15).Select(x => new DetailsModel { OrderId = x, DealSize = x ^ i }).ToList();
            data.Add(mdl);
        }
        return data;
    }

    public class MainModel
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public List<DetailsModel> Orders { get; set; }
    }

    public class DetailsModel
    {
        public int OrderId { get; set; }
        public double DealSize { get; set; }
    }
}





Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
Ed
Top achievements
Rank 1
answered on 23 Nov 2020, 02:42 PM

Rookie mistake, I coded the width as "200" and not "200px"
Let me echo as so many people have, how impressed I am with customer support from you guys.

We have bid the Blazor UI components on a recent opportunity and I'm looking forward to bidding them on more opportunities as we go forward :)
Thanks again.

0
Marin Bratanov
Telerik team
answered on 23 Nov 2020, 03:11 PM

Glad to see you moving forward, Ed!

Thank you for the kind words, I will make sure the team sees your post :)



Regards,
Marin Bratanov
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.
