Multi-column line in Grid occasionally missing

1 Answer 26 Views
Grid
Bob Nonnemann
Top achievements
Rank 1
Bob Nonnemann asked on 14 May 2021, 07:24 PM

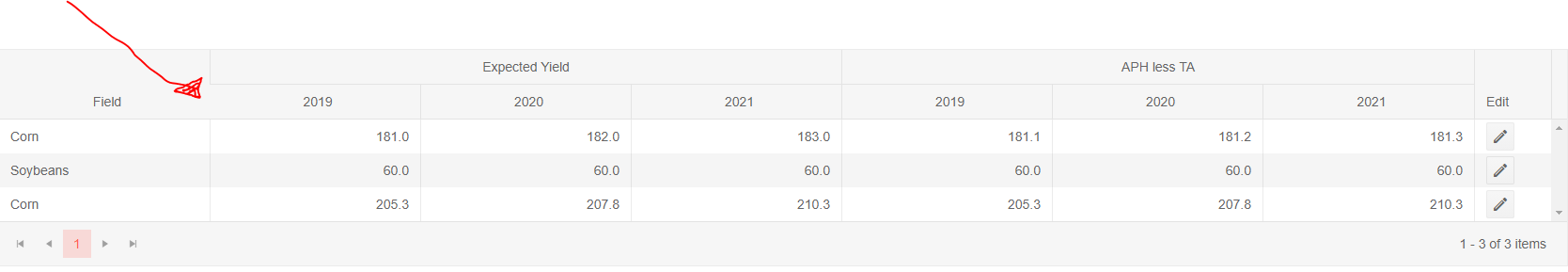

Just updated to the latest release and gave the multi-column option on the grid a try.  It worked well for most cases, but on an initial transition from a non-multi-column to a multi-column, part of a grid line is missing.  Code is pretty standard stuff, but then, being new to Blazor (or any kind of web programming) I could easily be missing something obvious:



        <TelerikGrid Data="@lstOpsYields" Sortable="true" Pageable="true" PageSize="20" Width="100%">

            <GridColumns>

                <GridColumn Title="Field" Field="DisplayName" />

                <GridColumn>
                    <HeaderTemplate><div style="text-align:center">Expected Yield</div></HeaderTemplate>
                    <Columns>
                        <GridColumn Title=@oAppData.SimpleYear1Heading() Field="ExpectedYieldY1">
                            <Template>
                                <div style="text-align: right;"> @((context as CCropOperations).ExpectedYieldY1.ToString(cnYieldFormat))</div>
                            </Template>
                        </GridColumn>

                        <GridColumn Title=@oAppData.SimpleYear2Heading() Field="ExpectedYieldY2">
                            <Template>
                                <div style="text-align: right;">@((context as CCropOperations).ExpectedYieldY2.ToString(cnYieldFormat))</div>
                            </Template>
                        </GridColumn>

                        <GridColumn Title=@oAppData.SimpleYear3Heading() Field="ExpectedYieldY3">
                            <Template>
                                <div style="text-align: right;">@((context as CCropOperations).ExpectedYieldY3.ToString(cnYieldFormat))</div>
                            </Template>
                        </GridColumn>
                    </Columns>
                </GridColumn>

                <GridColumn>
                    <HeaderTemplate><div style="text-align:center">APH less TA</div></HeaderTemplate>
                    <Columns>
                        <GridColumn Title=@oAppData.SimpleYear1Heading() Field="AphTaLessAphY1">
                            <Template>
                                <div style="text-align: right;"> @((context as CCropOperations).AphTaLessAphY1.ToString(cnYieldFormat)) </div>
                            </Template>
                        </GridColumn>

                        <GridColumn Title=@oAppData.SimpleYear2Heading() Field="AphTaLessAphY2">
                            <Template>
                                <div style="text-align: right;">@((context as CCropOperations).AphTaLessAphY2.ToString(cnYieldFormat))</div>
                            </Template>
                        </GridColumn>

                        <GridColumn Title=@oAppData.SimpleYear3Heading() Field="AphTaLessAphY3">
                            <Template>
                                <div style="text-align: right;">@((context as CCropOperations).AphTaLessAphY3.ToString(cnYieldFormat)) </div>
                            </Template>
                        </GridColumn>
                    </Columns>
                </GridColumn>

                <GridCommandColumn Title="Edit" Width="5%">
                    <GridCommandButton OnClick="@((args) => SelectYield(args.Item as CCropOperations))" Icon="edit" />
                </GridCommandColumn>

            </GridColumns>

        </TelerikGrid>

1 Answer, 1 is accepted

Sort by
0
Dimo
Telerik team
answered on 18 May 2021, 01:15 PM

Hi Bob,

Thank you for reporting this behavior. I confirm this is a bug and I updated your Telerik points.

Possible workarounds include:

  • Move the "Field" column to another position. The problem is exhibited only when the non-grouped column is at first position.
  • Wrap the non-grouped column in its own group, similar to the "Company" column here:
    https://demos.telerik.com/blazor-ui/grid/multi-column-headers
    You can use an empty column title for the group or "leaf" column, but you will still get an extra horizontal border, indeed.

I have logged a public item on your behalf that you can track:

https://feedback.telerik.com/blazor/1520106

Regards,
Dimo
Progress Telerik
