Limiting # Rows When Reordering TileLayout

[Zachary]

I have a layout of three tiles like so:

<TelerikTileLayout Columns="3"
                   RowHeight="18vh"
                   Resizable="true"
                   Reorderable="true"
                   >

    <TileLayoutItems>
        <TileLayoutItem RowSpan="2" ColSpan="2">
            <Content>
                content
            </Content>
        </TileLayoutItem>
        <TileLayoutItem RowSpan="4">
            <Content>
                content
            </Content>
        </TileLayoutItem>
        <TileLayoutItem RowSpan="2" ColSpan="2">
            <Content>
               content
            </Content>
        </TileLayoutItem>
    </TileLayoutItems>
</TelerikTileLayout>

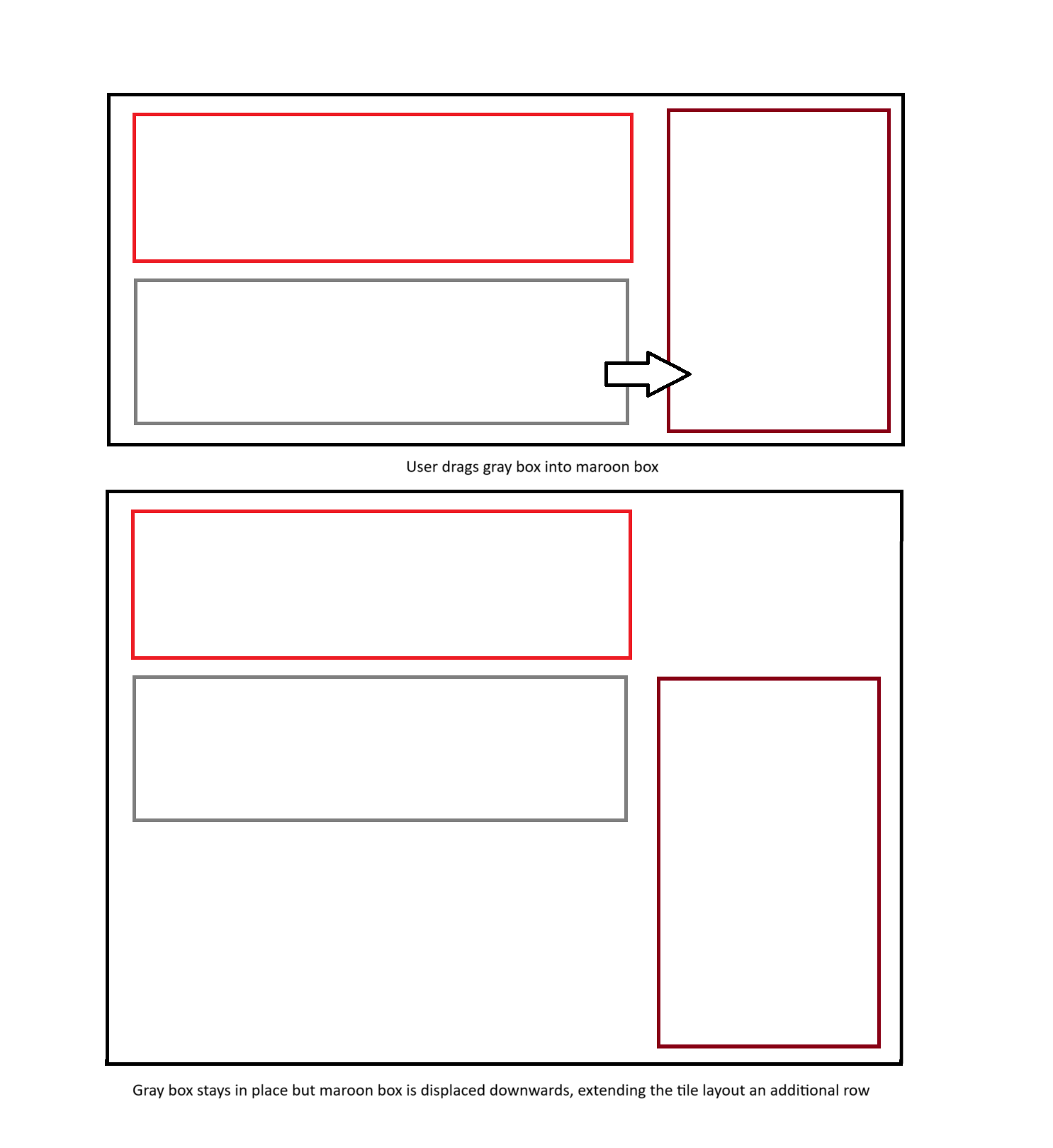

I would like the tile layout to stay 4 rows in height, however when a user reorders one of the tiles in a certain way, it extends it down to a 5th row, and displaces one of the tiles in an unpleasing way, which I've shown in the attached image. I want to restrict the tile layout so that it stays 4 rows deep, but still allow my users to rearrange the tiles within that restricted space. Is this possible?

[Hristian Stefanov]

Hi Zachary,

A feature request for TileLayout Constrain RowSpan and ColSpan has already been submitted on our public feedback portal. Could you take a look at the public item to confirm if this is what you are looking for?

Kind Regards,

Hristian

[Zachary]

I dont think this would help, as I am looking to constrain the overall RowSpan of the entire TileLayout so that I may stop the user from making unintended layouts. The issue I am running into is that one of the tiles is creating a new row and then filling that space like shown in the attached image. This will happen even if the TileLayout has a fixed height. The RowSpan of the individual tiles is not changing when this happens, so constraining them would not solve the issue. Ideally, I'd like if the TileLayout component had a Rows parameter I could set to restrict automatically creating rows. I don't know enough about css grid styling to know how to achieve this. Is there a styling parameter I can overwrite to do this?

[Hristian Stefanov]

Hi Zachary,

Thank you for getting back to me with feedback.

I will discuss the scenario with our development team and get back to you very shortly with more details.

Your patience is highly appreciated.

Kind Regards,

Hristian

[Hristian Stefanov]

Hi Zachary,

I am ready to share an update from reviewing the case with the team.

I confirm that the issue you encountered is indeed a bug in the TileLayout. I have created a public item on your behalf to address this: Reordering Tiles breaks the layout.

You are automatically subscribed as a creator, which means you will receive email notifications regarding the status updates of this item.

I am sorry for any inconvenience the issue may have caused you.

Additionally, as a token of appreciation, I have credited your account with Telerik points for reporting the behavior.

Kind Regards,

Hristian
