Is there a grid setting to not show the expander column completely?

[John]

I figured out a way to hide the expander icon during the onRowRender. I've tried different css routes using style which does no consistently hide the column .k-grid k-hierarchy-col (etc.). Is there a setting / way to onRowRender hide this column completely? I am using a context menu to expand and feel it is taking up space on screen.

[Marin Bratanov]

Hello John,

You can use CSS to hide those elements from the grid, like so:

<style>
    .no-expand-column .k-grid-content colgroup col:first-of-type,
    .no-expand-column .k-grid-header thead th:first-of-type,
    .no-expand-column .k-grid-header colgroup col:first-of-type {
        width: 0px;
    }

    .no-expand-column .k-grid-content td.k-hierarchy-cell * {
        display: none;
    }
</style>
<TelerikGrid Class="no-expand-column" Data="salesTeamMembers">
    <DetailTemplate>
        @{
            var employee = context as MainModel;
            <TelerikGrid Data="employee.Orders" Pageable="true" PageSize="5">
                <GridColumns>
                    <GridColumn Field="OrderId"></GridColumn>
                    <GridColumn Field="DealSize"></GridColumn>
                </GridColumns>
            </TelerikGrid>
        }
    </DetailTemplate>
    <GridColumns>
        <GridColumn Field="Id"></GridColumn>
        <GridColumn Field="Name"></GridColumn>
    </GridColumns>
</TelerikGrid>

@code {
    List<MainModel> salesTeamMembers { get; set; }

    protected override void OnInitialized()
    {
        salesTeamMembers = GenerateData();
    }

    private List<MainModel> GenerateData()
    {
        List<MainModel> data = new List<MainModel>();
        for (int i = 0; i < 5; i++)
        {
            MainModel mdl = new MainModel { Id = i, Name = $"Name {i}" };
            mdl.Orders = Enumerable.Range(1, 15).Select(x => new DetailsModel { OrderId = x, DealSize = x ^ i }).ToList();
            data.Add(mdl);
        }
        return data;
    }

    public class MainModel
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public List<DetailsModel> Orders { get; set; }
    }

    public class DetailsModel
    {
        public int OrderId { get; set; }
        public double DealSize { get; set; }
    }
}



Regards,
Marin Bratanov
Progress Telerik

[John]

Thank you. This worked for me 100%. Previously, I was able to hide a lot of things, but not the column itself.

[Marin Bratanov]

Glad I could help!

[pihi]

Hello, there is a issue with this solution:

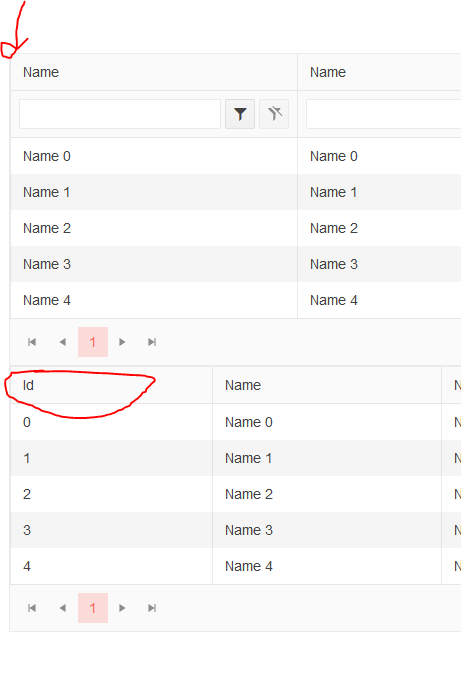

When performing manual column resize with FilterMode="Telerik.Blazor.GridFilterMode.FilterRow" first column disappear.

<style>

    .no-expand-column .k-grid-content colgroup col:first-of-type,

    .no-expand-column .k-grid-header thead th:first-of-type,

    .no-expand-column .k-grid-header colgroup col:first-of-type {

        width: 0px;

    }

    .no-expand-column .k-grid-content td.k-hierarchy-cell * {

        display: none;

    }

</style>

<TelerikGrid FilterMode="Telerik.Blazor.GridFilterMode.FilterRow" Class="no-expand-column" Data="salesTeamMembers" Pageable="true" Sortable="true" Groupable="false" Resizable="true" Reorderable="true">

    <DetailTemplate>

        @{

            var employee = context as MainModel;

            <TelerikGrid Data="employee.Orders" Pageable="true" PageSize="5">

                <GridColumns>

                    <GridColumn Field="OrderId"></GridColumn>

                    <GridColumn Field="DealSize"></GridColumn>

                </GridColumns>

            </TelerikGrid>

        }

    </DetailTemplate>

    <GridColumns>

        <GridColumn Field="Id"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

    </GridColumns>

</TelerikGrid>

<TelerikGrid Class="no-expand-column" Data="salesTeamMembers" Pageable="true" Sortable="true" Groupable="false" Resizable="true" Reorderable="true">

    <DetailTemplate>

        @{

            var employee = context as MainModel;

            <TelerikGrid Data="employee.Orders" Pageable="true" PageSize="5">

                <GridColumns>

                    <GridColumn Field="OrderId"></GridColumn>

                    <GridColumn Field="DealSize"></GridColumn>

                </GridColumns>

            </TelerikGrid>

        }

    </DetailTemplate>

    <GridColumns>

        <GridColumn Field="Id"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

        <GridColumn Field="Name"></GridColumn>

    </GridColumns>

</TelerikGrid>

@code {

    List<MainModel> salesTeamMembers { get; set; }

    protected override void OnInitialized()

    {

        salesTeamMembers = GenerateData();

    }

    private List<MainModel> GenerateData()

    {

        List<MainModel> data = new List<MainModel>();

        for (int i = 0; i < 5; i++)

        {

            MainModel mdl = new MainModel { Id = i, Name = $"Name {i}" };

            mdl.Orders = Enumerable.Range(1, 15).Select(x => new DetailsModel { OrderId = x, DealSize = x ^ i }).ToList();

            data.Add(mdl);

        }

        return data;

    }

    public class MainModel

    {

        public int Id { get; set; }

        public string Name { get; set; }

        public List<DetailsModel> Orders { get; set; }

    }

    public class DetailsModel

    {

        public int OrderId { get; set; }

        public double DealSize { get; set; }

    }

}

[Dimo]

@pihi - this is a bug and I logged it in our public portal on your behalf. I experimented to find a workaround, but I am afraid I didn't find one. Your only option is to bring back the expand column. However, you can still hide the [ + ] and [ - ] icons in it, so that users cannot control the hierarchy.
