How to remove the word "Sum" at footer of Grid when export data into Excel

1 Answer 178 Views
Grid
Chinh
Top achievements
Rank 1
Chinh asked on 31 May 2023, 07:40 AM

Hi all,

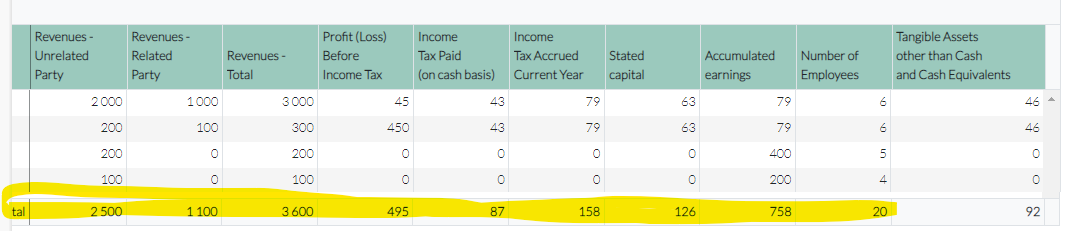

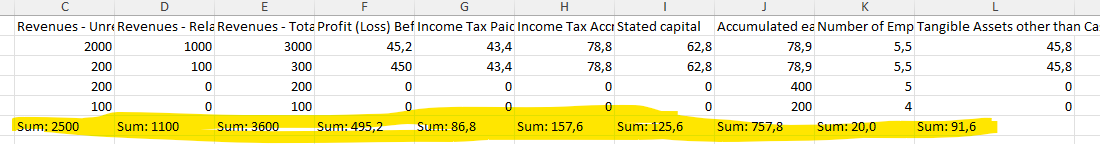

I want to remove the word "Sum", and only keep the number at the footer of the Excel file when I export data from the grid as pictures below. Is there anyone know? Please help me.

Thank you

1 Answer, 1 is accepted

Sort by
0
Dimo
Telerik team
answered on 02 Jun 2023, 12:21 PM

Hi Chinh,

Use the OnAfterExport event of the Grid to obtain the exported Excel file. Then use RadSpreadProcessing to modify the desired cell value(s).

The example below is based on this one - Custom cell formatting of the exported file with RadSpreadProcessing. Follow the step-by-step instructions there.

@using Telerik.Windows.Documents.Spreadsheet.FormatProviders.OpenXml.Xlsx
@using Telerik.Windows.Documents.Spreadsheet.Model

<TelerikGrid Data="@GridData">
    <GridExport>
        <GridExcelExport OnAfterExport="@OnGridAfterExport" />
    </GridExport>
    <GridAggregates>
        <GridAggregate Field="@nameof(Product.Name)" Aggregate="@GridAggregateType.Count" />
        <GridAggregate Field="@nameof(Product.Stock)" Aggregate="@GridAggregateType.Sum" />
    </GridAggregates>
    <GridToolBarTemplate>
        <GridCommandButton Command="ExcelExport">Export to Excel</GridCommandButton>
    </GridToolBarTemplate>
    <GridColumns>
        <GridColumn Field="@nameof(Product.Name)">
            <FooterTemplate>
                @context.Count
            </FooterTemplate>
        </GridColumn>
        <GridColumn Field="@nameof(Product.Stock)">
            <FooterTemplate>
                @context.Sum
            </FooterTemplate>
        </GridColumn>
    </GridColumns>
</TelerikGrid>

@code {
    List<Product> GridData { get; set; } = new List<Product>();

    async Task OnGridAfterExport(GridAfterExcelExportEventArgs args)
    {
        //args.Stream is finalized. XlsxFormatProvider Import() requires a readable stream,
        //so copy the stream bytes to a new MemoryStream instance which will be used for the import.
        var bytes = args.Stream.ToArray();
        var excelStream = new MemoryStream(bytes);

        //create a format provider instance to call the import
        XlsxFormatProvider formatProvider = new XlsxFormatProvider();

        //import the stream to a workbook
        Workbook workbook = formatProvider.Import(excelStream);

        //get Stock sum cell and remove "Sum: "
        CellSelection sumCell = workbook.Worksheets[0].Cells[new CellIndex(GridData.Count + 1, 1)];
        sumCell.SetValue(sumCell.GetValue().Value.RawValue.Replace("Sum: ", ""));

        //save the modified workbook in a MemoryStream
        MemoryStream modifiedExportStream = new MemoryStream();
        formatProvider.Export(workbook, modifiedExportStream);

        //pass the modified stream to the event arguments
        args.Stream = modifiedExportStream;
    }

    protected override void OnInitialized()
    {
        GridData = new List<Product>();
        var rnd = new Random();

        for (int i = 1; i <= 3; i++)
        {
            GridData.Add(new Product()
            {
                Id = i,
                Name = $"Product {i}",
                Stock = rnd.Next(0, 10)
            });
        }
    }

    public class Product
    {
        public int Id { get; set; }
        public string Name { get; set; } = string.Empty;
        public int Stock { get; set; }
    }
}



Regards,
Dimo
Progress Telerik
