How to cascade DropDownList in Grid using ASP.NET Core Razor Pages?

[Janko]

How to cascade DropDownList in Grid?

I've tried a lot of stuff using JavaScript, JQuery and Ajax but I can't get this to work. I wasn't able to find an example on how to do this.

This is my code for grid and editor templates...

@(Html.Kendo().Grid<ToDestination>(Model.ToDestinations)
                .Name("grid")
                .Columns(columns =>
                {
                    columns.ForeignKey(c => c.TravelTypeId,
                    (System.Collections.IList)ViewData["TravelTypes"], "TravelTypeId", "TravelTypeName").Title("Travel Type");

                    columns.ForeignKey(c => c.CountryId,
                    (System.Collections.IList)ViewData["Countries"], "CountryId", "CountryName").Title("Country")
                    .EditorTemplateName("CountryEditor"); // Specify a custom editor template for the Country dropdown.

                    columns.ForeignKey(c => c.PlaceId,
                    (System.Collections.IList)ViewData["Places"], "PlaceId", "PlaceName").Title("Place")
                    .EditorTemplateName("PlaceEditor"); // Specify a custom editor template for the Place dropdown.

                    columns.Bound(c => c.PlaceName);
                    columns.Bound(c => c.CenterName);
                    columns.Command(command => { command.Edit(); command.Destroy(); }).Width(250);
                })
                .ToolBar(toolbar => toolbar.Create())
                .Editable(editable => editable.Mode(GridEditMode.InLine))
                .Pageable()
                .Sortable()
                .Scrollable()
                .DataSource(ds => ds.Ajax()
                .Create(c => c.Url("/TravelOrders/Create?handler=Create").Data("forgeryToken"))
                .Read(r => r.Url("/TravelOrders/Create?handler=Read").Data("forgeryToken"))
                .Update(u => u.Url("/TravelOrders/Create?handler=Update").Data("forgeryToken"))
                .Destroy(d => d.Url("/TravelOrders/Create?handler=Destroy").Data("forgeryToken"))
                .Model(m =>
                {
                    m.Id(id => id.ToDestinationId);
                    m.Field(tt => tt.TravelTypeId).DefaultValue(1);
                    m.Field(c => c.CountryId).DefaultValue(1);
                })
                )
                )

@model int? // Assuming CountryId is nullable

@(Html.Kendo().DropDownList()
    .Name("CountriesList")
    .DataTextField("CountryName")
    .DataValueField("CountryId")
    .BindTo((System.Collections.IEnumerable)ViewData["Countries"])
    .OptionLabel("Select a country")
    .Events(e => e.Change("onCountryChange"))
)

@model int? // Assuming PlaceId is nullable

@(Html.Kendo().DropDownList()
    .Name("PlacesList")
    .DataTextField("PlaceName")
    .DataValueField("PlaceId")
    .BindTo((System.Collections.IEnumerable)ViewData["Places"])
    .OptionLabel("Select a place")
)

[Alexander]

Hi Janko,

Thank you for sharing the relevant code portion that is currently held on your premises, I really appreciate it.

To be frank, it is really impressive that you have managed to simulate a cascading functionality based on your own implementation. Generally, the Telerik UI for ASP.NET Core DropDownList provides built-in cascading capabilities that can be incorporated as well.

To give you more context, the functionality suffices the following actions:

• It is checked whether the CascadeFrom property is set. If not, cascading is disabled.

• The DropDownList tries to find the parent DropDownList object. If the result is null, then the functionality is omitted.

• The child DropDownList listens to any changes in the parent value. If the parent does not have value, the child is disabled. If the parent has a value, the child is enabled and filters its data accordingly.

For more information, I would recommend reviewing the following resources as well:

Cascading DropDownList - (Documentation)

In the context of your scenario, you can utilize the server editor boolean overload to explicitly define a DropDownList incarnation of your own embedded within external editor templates. Here is an example:

.Columns(columns =>
{
    columns.ForeignKey(p => p.Fk_CountryID, ds => ds.Read(read => read.Url(Url.Page("Index", "Countries"))), "ID", "Description", true)
      .Title("Country").EditorTemplateName("CountryGridForeignKey").Width(200);

    columns.ForeignKey(p => p.Fk_StateID, ds => ds.Read(read => read.Url(Url.Page("Index", "StateLookup"))), "ID", "Description", true)
    .Title("State").EditorTemplateName("StateGridForeignKey").Width(200);
})

"Notice, that this approach would require loading the ForeignKey column data through an external endpoint instead of through the ViewData dictionary".

Here is what the editors would look like:

Parent DropDownList Editor:

@model int?

@(Html.Kendo().DropDownListFor(m => m)
    .ValuePrimitive(true)
    .OptionLabel("Select Country..")
    .DataValueField("ID")
    .DataTextField("Description")
    .DataSource(ds => ds.Read(read => read.Url(Url.Page("Index", "Countries"))))
)

Child DropDownList Editor:

@model int?

@(Html.Kendo().DropDownListFor(m => m)
    .AutoBind(false)
    .ValuePrimitive(true)
    .OptionLabel("Select State..")
    .DataValueField("ID")
    .DataTextField("Description")
    .DataSource(dataSource =>
     {
         dataSource.Read(read => read.Url(Url.Page("Index", "StateLookup")).Data("filterStates"))
                 .ServerFiltering(true);
     })
    .CascadeFrom("Fk_CountryID")
)

The child DropDownList will then be filtered through the "filterStates" handler:

<script>
    function filterStates() {
        console.log("here");
        return {
            countryId: $("#Fk_CountryID").data("kendoDropDownList").value()
        };
    }
</script>

Which will have the following model definition which will have a parent field as the proprietary field for filtering:

public class StateModel
{
    public string ID { get; set; }
    public string Description { get; set; }
    public int CountryID { get; set; }
}

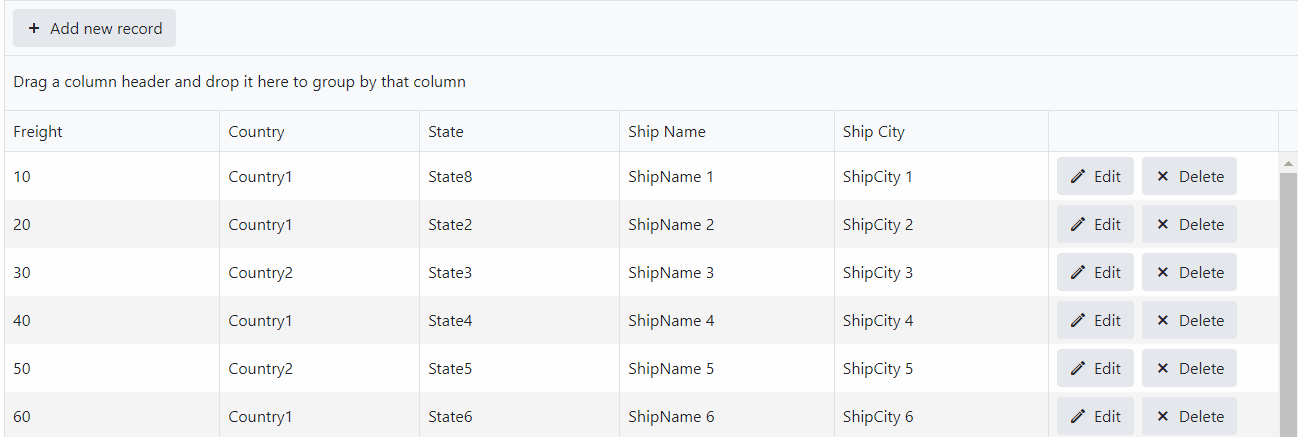

This will then produce the following visual incarnation:

For your convenience, I am also attaching a runnable sample application that tackles the abovementioned scenario for you to review additionally.

I hope this information helps give a different perspective as to how the desired outcome can be achieved in a different manner.

Kind Regards,
Alexander
Progress Telerik

[Janko]

The solution to this is to have an id so that you can manage DropDownList values.

I've updated DropDownList codes and added script that handles event when country is changed.

@(Html.Kendo().Grid<ToDestination>(Model.ToDestinations)
            .Name("grid")
            .Columns(columns =>
            {
                columns.ForeignKey(c => c.TravelTypeId,
                (System.Collections.IList)ViewData["TravelTypes"], "TravelTypeId", "TravelTypeName").Title("Travel Type");

                columns.ForeignKey(c => c.CountryId,
                (System.Collections.IList)ViewData["Countries"], "CountryId", "CountryName").Title("Country")
                .EditorTemplateName("CountryEditor"); // Specify a custom editor template for the Country dropdown.

                columns.ForeignKey(c => c.PlaceId,
                (System.Collections.IList)ViewData["Places"], "PlaceId", "PlaceName").Title("Place")
                .EditorTemplateName("PlaceEditor"); // Specify a custom editor template for the Place dropdown.

                columns.Bound(c => c.PlaceName);
                columns.Bound(c => c.CenterName);
                columns.Command(command => { command.Edit(); command.Destroy(); }).Width(250);
            })
            .ToolBar(toolbar => toolbar.Create())
            .Editable(editable => editable.Mode(GridEditMode.InLine))
            .Pageable()
            .Sortable()
            .Scrollable()
            .DataSource(ds => ds.Ajax()
            .Create(c => c.Url("/TravelOrders/Create?handler=Create").Data("forgeryToken"))
            .Read(r => r.Url("/TravelOrders/Create?handler=Read").Data("forgeryToken"))
            .Update(u => u.Url("/TravelOrders/Create?handler=Update").Data("forgeryToken"))
            .Destroy(d => d.Url("/TravelOrders/Create?handler=Destroy").Data("forgeryToken"))
            .Model(m =>
            {
                m.Id(id => id.ToDestinationId);
                m.Field(tt => tt.TravelTypeId).DefaultValue(1);
                m.Field(c => c.CountryId).DefaultValue(1);
            })
            ))

@model int

@(
Html.Kendo().DropDownList()
    .Name("CountriesList")
    .DataTextField("CountryName")
    .DataValueField("CountryId")
    .BindTo((System.Collections.IEnumerable)ViewData["Countries"])
    .OptionLabel("Select a country")
    .Events(e => e.Change("onCountryChange"))
    .HtmlAttributes(new { id = "CountriesList" }) // Add an Id
)

@model int

@(Html.Kendo().DropDownList()
    .Name("PlacesList")
    .DataTextField("PlaceName")
    .DataValueField("PlaceId")
    .BindTo((System.Collections.IEnumerable)ViewData["Places"])
    .OptionLabel("Select a place")
    .HtmlAttributes(new { id = "PlacesList" }) // Add an Id
)

function onCountryChange(e) {
    var selectedCountryId = e.sender.value();
    refreshPlaces(selectedCountryId);
}

function refreshPlaces(selectedCountryId) {
    $.ajax({
        type: "GET",
        url: "/TravelOrders/Create?handler=RefreshPlaces",
        data: { countryId: selectedCountryId },
        success: function (data) {
            var placeDropdown = $("#PlacesList").data("kendoDropDownList");
            placeDropdown.setDataSource(new kendo.data.DataSource({ data: data }));
        },
        error: function (error) {
            console.error(error);
        }
    });
}

[HttpGet]
        public IActionResult OnGetRefreshPlaces (int countryId)
        {
            var places = _entities.Places.Where(p => p.CountryId == countryId).ToList();
            ViewData["Places"] = places;
            return new JsonResult(places);
        }
