How to add vertical border for DataGrid columns

[CJ]

I have a Blazor DataGrid with couple of Locked columns. I want to add vertical borders only for the other scrollable columns. I have tried the examples in here but no luck Blazor Change Border Color of Grid Columns - Telerik UI for Blazor

Is there a way to add vertical boarders when there are Locked columns? Thanks

[Anislav]

Hi Charith,

Yes, it is possible to control which cell borders are displayed when you have locked grid columns. In this case, the CSS selectors will be a bit different. You can use .k-grid-content-sticky and .k-grid-header-sticky to select the cells and headers of the locked (sticky) columns, and then remove their borders as shown below:

<style>
    .k-grid-content-sticky,
    .k-grid-header-sticky {
        border-inline-end-width: 0 !important;
    }
</style>

You can check out the example that I set up: https://blazorrepl.telerik.com/mTudurFJ446V7xg721


Regards,
Anislav Atanasov

[CJ]

Thanks Anislav,  What's the best way to apply this style only for the last sticky column?
I want to display the border only for the last locked column, other locked columns do not have a border.

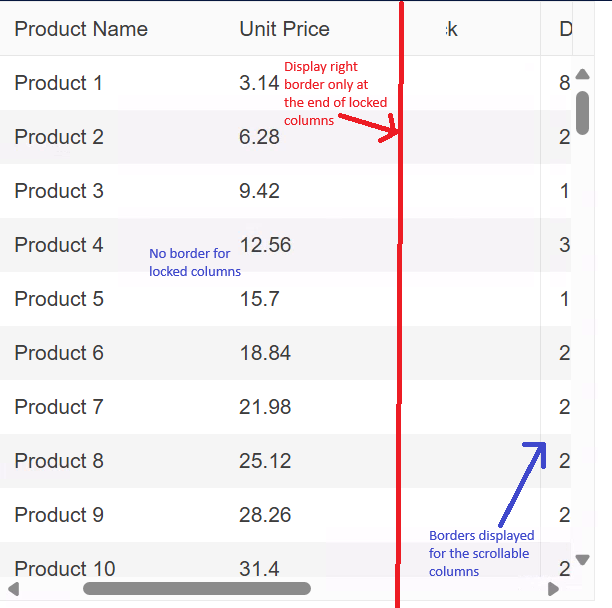

I tried with last column HeaderClass that doesn't seem to work and GridColumn does not has Class property. Attached screenshot shows what I want to achieve.

I"ve a updated PERL to demonstrate the issue. I want to apply style-forunit-Price class for the last locked column in this example

Telerik REPL for Blazor - The best place to play, experiment, share & learn using Blazor.

[Anislav]

One possible solution is to use the data-col-index attribute that the Grid assigns to columns. While this approach works, keep in mind that you'll need to update your CSS selector if you add more sticky columns.

Here’s a CSS selector that achieves this:

    .k-grid-content-sticky:not(td[data-col-index="1"]),
    .k-grid-header-sticky:not(th[data-col-index="1"]) {
        border-inline-end-width: 0 !important;
    }

You can also check out this REPL example that demonstrates the approach: https://blazorrepl.telerik.com/GJknbukW40sMb7A336.

Regards,
Anislav Atanasov

[CJ]

Great, Thank you!

[CJ]

I remove alternative background colors like this.

But it's still getting background color on hover. How can I remove the hover background color?  Thank you.

/*Remove alternative row background color for sticky columns on Rows*/
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row .k-grid-content-sticky,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row.k-grid-row-sticky > .k-table-td,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row .k-grid-row-sticky {
    background-color: white !important;
}

Tried following but no luck

.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row .k-grid-content-sticky,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row.k-grid-row-sticky > .k-table-td,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row .k-grid-row-sticky,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row .k-grid-content-sticky:hover,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row.k-grid-row-sticky > .k-table-td:hover,
.tgrid-remove-alt-color-sticky-columns-rows .k-master-row.k-table-alt-row .k-grid-row-sticky:hover {
    background-color: white !important;
}
