GridCheckBoxColumn fails to show

[Tim Titchmarsh]

Hi

I am trying to bind some sql data to a grid. Quite simple really. Most datatypes seem to work except GridCheckBoxColumn

I have a bit field in sql server (all values populated). I am binding to radgrid with a datasource (LLBLGenProDataSource2) using GridCheckBoxColumn.

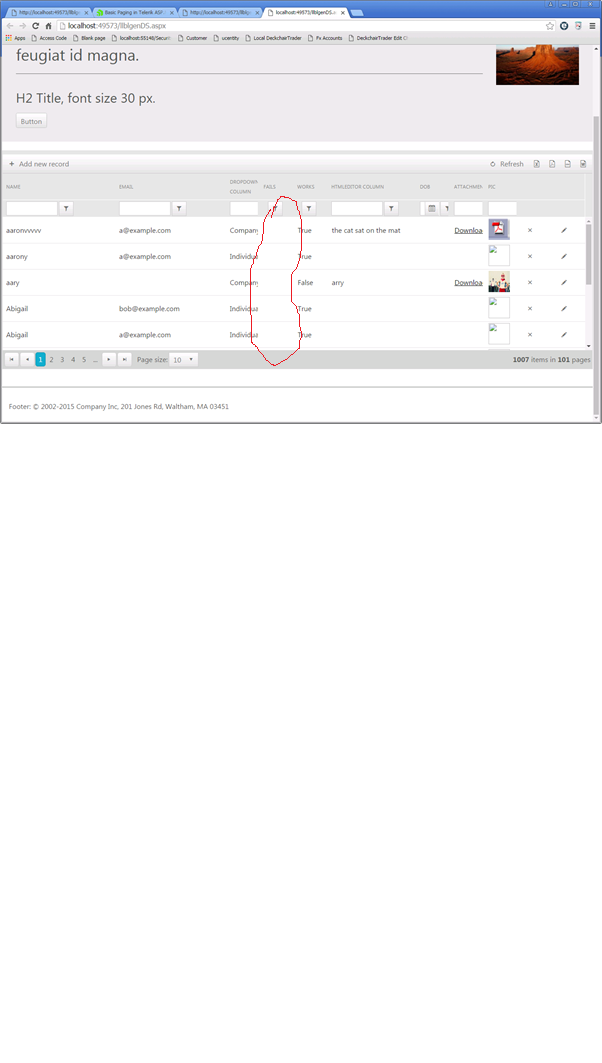

No  data is displayed for the checkbox column . If I bind using GridBoundColumn however it shows up! (True/False) as text

fails to show

                <telerik:GridCheckBoxColumn UniqueName="GridCheckBoxColumn" DataField="IsEnabled" HeaderText="Fails" DataType="System.Boolean" >
                </telerik:GridCheckBoxColumn>

shows up
                <telerik:GridBoundColumn DataField="IsEnabled" HeaderText="Works" UniqueName="NewIs" DataType="System.Boolean">
                </telerik:GridBoundColumn>

If I examine the value in the RadGrid1_ItemDataBound event it is empty (&nbsp;) for the GridCheckBoxColumn but shows True for the GridBoundColumn

It seems odd? I can see some of your demos working with a GridCheckBoxColumn , could it be there is a different interpretation of what makes a boolean when reading from the datasource?

Your help apprciated



I am using the Q2 2016 sp1, VS2015 Windows 7, Chrome



<asp:Content ID="Content3" ContentPlaceHolderID="ContentPlaceHolder2" runat="Server">
    <telerik:RadGrid ID="RadGrid1" runat="server"
        OnItemCommand="RadGrid1_OnItemCommand"
        OnItemDataBound="RadGrid1_ItemDataBound"
        OnItemCreated="RadGrid1_ItemCreated1"
        PagerStyle-PageButtonCount="5"
        AutoGenerateColumns="false"
        DataKeyNames="OrganisationId"
        AllowPaging="True"
        AllowSorting="True"
        ShowGroupPanel="True"
        RenderMode="Auto"
        EnableLinqExpressions="false"
        AllowFilteringByColumn="True"
        AutoGenerateEditColumn="True"
        AutoGenerateDeleteColumn="True"
        DataSourceID="LLBLGenProDataSource1">
        <GroupingSettings ShowUnGroupButton="true" />

        <ExportSettings ExportOnlyData="true" IgnorePaging="true"></ExportSettings>
        <MasterTableView AllowAutomaticInserts="true"
            AllowAutomaticUpdates="true"
            AllowAutomaticDeletes="true"
            AllowFilteringByColumn="true"
            AutoGenerateColumns="False"
            EditMode="PopUp"
            TableLayout="Fixed"
            CommandItemDisplay="Top"
            InsertItemPageIndexAction="ShowItemOnFirstPage"
            DataSourceID="LLBLGenProDataSource1"
            RetrieveDataTypeFromFirstItem="true"
            DataKeyNames="OrganisationId">
            <EditFormSettings CaptionFormatString="Edit Organisation: {0}" CaptionDataField="DisplayText" PopUpSettings-Width="600px" />

            <CommandItemSettings ShowExportToCsvButton="true" ShowExportToExcelButton="true" ShowExportToPdfButton="true" ShowExportToWordButton="true" />

            <Columns>
                <telerik:GridBoundColumn DataField="Name" HeaderText="Name" SortExpression="Name"
                    UniqueName="Name" AutoPostBackOnFilter="true" DataType="System.String">
                    <HeaderStyle Width="250px" />
                </telerik:GridBoundColumn>
                <telerik:GridBoundColumn DataField="Email" HeaderText="Email" SortExpression="Email"
                    UniqueName="Email" ReadOnly="true" DataType="System.String">
                    <HeaderStyle Width="250px" />
                </telerik:GridBoundColumn>
                <telerik:GridDropDownColumn DataSourceID="LLBLGenProDataSourceType" ListTextField="DisplayText" ListValueField="OrganisationTypeId"
                    UniqueName="OrganisationTypeId" HeaderText="DropDown Column" DataField="OrganisationTypeId"
                    AllowAutomaticLoadOnDemand="true"
                    AllowVirtualScrolling="true" ShowMoreResultsBox="true" ItemsPerRequest="10" DropDownControlType="DropDownList">
                </telerik:GridDropDownColumn>
                <telerik:GridCheckBoxColumnUniqueName="GridCheckBoxColumn" DataField="IsEnabled" HeaderText="Fails" DataType="System.Boolean" >
                </telerik:GridCheckBoxColumn>
                <telerik:GridBoundColumnDataField="IsEnabled" HeaderText="Works" UniqueName="NewIs" DataType="System.Boolean">
                </telerik:GridBoundColumn>

                <telerik:GridHTMLEditorColumn EditFormColumnIndex="0" UniqueName="Notes" SortExpression="Notes" HeaderText="HTMLEditor Column"
                    DataField="Notes" HeaderStyle-Width="200px" DataType="System.String">
                </telerik:GridHTMLEditorColumn>
                <telerik:GridDateTimeColumn UniqueName="DOB" PickerType="DatePicker" HeaderText="DOB"
                    DataField="DOB" DataFormatString="{0:d}"
                    EditDataFormatString="d" DataType="System.DateTime">
                </telerik:GridDateTimeColumn>
                <telerik:GridTemplateColumn HeaderText="Attachment" UniqueName="UploadTemplateColumn">
                    <ItemTemplate>
                        <asp:LinkButton ID="DownloadButton" runat="server" CommandName="DownloadFileAttachment"
                            Text="Download">
                        </asp:LinkButton>
                    </ItemTemplate>
                    <EditItemTemplate>
                        <telerik:RadAsyncUpload ID="ImportantDocUpload" EnableInlineProgress="true" runat="server" AllowedFileExtensions=".doc,.docx,.xls,.xlsx,.pdf,.ppt,.pptx" MaxFileSize="4000000">
                        </telerik:RadAsyncUpload>
                    </EditItemTemplate>
                </telerik:GridTemplateColumn>
                <telerik:GridTemplateColumn HeaderText="Pic" UniqueName="UploadPic">
                    <ItemTemplate>
                        <asp:Image runat="server" ID="OrgPic" ImageUrl='<%# string.Format(@"{0}.emfile?d={0}",Eval("AvatarImageId")) %>' Height="48" Width="48" />

                    </ItemTemplate>
                    <EditItemTemplate>
                        <telerik:RadAsyncUpload ID="PicUpload" EnableInlineProgress="true" runat="server" AllowedFileExtensions=".png,.jpg,.gif" MaxFileSize="4000000">
                        </telerik:RadAsyncUpload>
                    </EditItemTemplate>
                </telerik:GridTemplateColumn>
                <telerik:GridBoundColumn DataField="ImportantDocId" Display="false" ReadOnly="true" UniqueName="ImportantDocId" DataType="System.Guid">
                </telerik:GridBoundColumn>
                <telerik:GridBoundColumn DataField="AvartarImageID" Display="false" ReadOnly="true" UniqueName="PicID" DataType="System.Guid">
                </telerik:GridBoundColumn>
            </Columns>
        </MasterTableView>
        <ClientSettings AllowColumnsReorder="true" AllowColumnHide="true" AllowDragToGroup="false">
            <Selecting AllowRowSelect="true" />
            <Scrolling AllowScroll="true" UseStaticHeaders="true" />
            <ClientEvents OnPopUpShowing="PopUpShowing" />
        </ClientSettings>
        <PagerStyle PageButtonCount="5" />
        <FilterMenu RenderMode="Auto">
        </FilterMenu>
        <HeaderContextMenu RenderMode="Auto">
        </HeaderContextMenu>
    </telerik:RadGrid>

    <llblgenpro:LLBLGenProDataSource2 ID="LLBLGenProDataSource1" LivePersistence="true" runat="server"
        AdapterTypeName="ExamMeisterDataLayer.DatabaseSpecific.DataAccessAdapter, ExamMeisterDataLayerDBSpecific"
        DataContainerType="EntityCollection"
        EntityFactoryTypeName="ExamMeisterDataLayer.FactoryClasses.OrganisationEntityFactory, ExamMeisterDataLayer"
        OnPerformSelect="LLBLGenProDataSource1_PerformSelect"
        OnPerformGetDbCount="LLBLGenProDataSource1_PerformGetDbCount"
        OnPerformWork="LLBLGenProDataSource1_PerformWork"
        OnEntityInserting="LLBLGenProDataSource1_OnEntityInserting"
        OnEntityUpdating="LLBLGenProDataSource1_OnEntityUpdating"
        CacheLocation="ASPNetCache"
        EnablePaging="false">
    </llblgenpro:LLBLGenProDataSource2>
    <llblgenpro:LLBLGenProDataSource2 ID="LLBLGenProDataSourceType" LivePersistence="true" runat="server"
        AdapterTypeName="ExamMeisterDataLayer.DatabaseSpecific.DataAccessAdapter, ExamMeisterDataLayerDBSpecific"
        DataContainerType="EntityCollection"
        EntityFactoryTypeName="ExamMeisterDataLayer.FactoryClasses.OrganisationTypeEntityFactory, ExamMeisterDataLayer"
        CacheLocation="ASPNetCache"
        EnablePaging="false">
    </llblgenpro:LLBLGenProDataSource2>
    <llblgenpro:LLBLGenProDataSource2 ID="LLBLGenProDataSourceUpload" LivePersistence="true" runat="server"
        AdapterTypeName="ExamMeisterDataLayer.DatabaseSpecific.DataAccessAdapter, ExamMeisterDataLayerDBSpecific"
        DataContainerType="EntityCollection"
        EntityFactoryTypeName="ExamMeisterDataLayer.FactoryClasses.DocViewWithDataEntityFactory, ExamMeisterDataLayer"
        OnEntityInserting="LLBLGenProDataSourceUpload_OnEntityInserting"
        OnEntityUpdating="LLBLGenProDataSourceUpload_OnEntityUpdating"
        CacheLocation="ASPNetCache"
        EnablePaging="false">
    </llblgenpro:LLBLGenProDataSource2>
    <telerik:RadCodeBlock runat="server">
        <script type="text/javascript">
            function onRequestStart(sender, args) {
                if (args.get_eventTarget().indexOf("Button") >= 0) {
                    args.set_enableAjax(false);
                }
            }
        </script>
    </telerik:RadCodeBlock>

[Kostadin]

Hi Tim,

Could you please verify that the data filed type is boolean and not string. In case yoo are using a string you need to have a values as "Yes" or "No", "1" or "0". You can find more information about this column type in the following help article. If you still experience the same issue I would appreciate if you can provide a small runnable sample in order to investigate it locally.

Regards,
Kostadin
Telerik by Progress

[Tim Titchmarsh]

Hi



Yes definitely a bool.

I dug a little deeper and can reproduce with the sample site that Telerik creates when creating a new telerik asp .net web form project in VS 2015 (the c# responsive app based one with grid sample and list view (2016.2.607.45).

I extended the dataset to include a bool value in the grid.aspx.cs (mybool in the listing below)

        public DataTable GetSellers()
        {
            DataTable data = new DataTable();
            data.Columns.Add("ID", typeof(int));
            data.Columns.Add("Name");
            data.Columns.Add("Age", typeof(int)).DefaultValue = 0;
            data.Columns.Add("BirthDate", typeof(DateTime));
            data.Columns.Add("Rating", typeof(int)).DefaultValue = 0;
            data.Columns.Add("City");
            data.Columns.Add("mybool", typeof(bool)).DefaultValue = true;
            data.PrimaryKey = new DataColumn[] { data.Columns["ID"] };

...... etc



and added the field to the grid.aspx

<telerik:GridCheckBoxColumn DataField="mybool" HeaderText="tim" UniqueName="wdexx" DataType="System.Boolean"/>

The column is blank in view mode and edit popup mode?

I tried to attach a file but 23mb zip file. (basically the sample app with the 2 lines added) I can upload it if you wish but where to?

Thanks

Tim





[Kostadin]

Hi Tim,

I have prepared a small sample where you can see that the CheckBox column renders a CheckBox controls in the view mode. Could you please check it out and let me know how it differs from your real setup?

Regards,
Kostadin
Telerik by Progress

[Tim Titchmarsh]

Hi Kostadin

Thanks for taking the time to send the sample.

I ran it as a standalone page, it worked.

I then integrated into the Telerik Sample app that I was using to build up my app using the master pages - no luck.

I tracked down the problem, the base style sheet base.css that the master page loads has the entry

button,
input {
  -webkit-appearance: none;
  cursor: pointer;
}

this caused the checkbox (at least on my chrome browser) to disappear. I commented out the -webkit line and it was now visible.

I guess I should have checked this first...

Thanks

Tim
