Grid Jumps or Scrolls to Top on Row Click

25 Answers 1684 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Brent Hetland asked on 21 Nov 2012, 11:13 AM

Hi,

I just upgraded to version 2012.3.1016.35 of the ASP.NET for AJAX controls, and the problem I'm facing was caused by the upgrade (I upgraded from version 2011.3.1305.35),

I use RadGrids with a GridClientSelectColumn and the following client settings:

<ClientSettings AllowDragToGroup="false" AllowRowsDragDrop="false">
<Selecting AllowRowSelect="true" />
</ClientSettings>

PROBLEM:
When the browser window has a scrollbar (content is extending beyond the bottom of the window) and when a grid extends down into the scrollable area (it extends beyond the bottom of the screen), when I click on a row in the grid, the browser window is scrolled up and the row in the grid is NOT selected. In other words, the first click in a row in the grid, acts like a bookmark and "jumps" the page so that the grid is moved up higher...

When I click the row again (or even a different row), the row is then selected as expected.

However, if I then scroll the browser window back to the top (so that the grid again moves down) and click a row again, I get the same behavior. The row isn't selected, and instead the grid is scrolled / jumped up.

QUESTION: What has changed, and what can I do to resolve this?

Another big problem this causes is that I actually have a column in the grid that I use for navigation (clicking the name of an item navigates the user to other pages). With this bad behavior, the first click on my link simply moves the grid up and the user has to click the link again in order to navigate...

MORE INFO:
- This is happening to ALL of my RadGrids that have AllowRowSelect=true and have a GridClientSelectColumn.
- If I set AllowRowSelect=false and remove the GridClientSelectColumn, the problem doesn't occur.
- This NEVER happened until I upgraded to the most recent version (we've used ASP.NET for AJAX for 4+ years). I still have the 2011.3.1305.35 version in our production environment, and the problem does NOT occur.
- It happens on all browsers

- I actually also use the setting below, but it doesn't change the behavior. In fact, the first time you click a row, the CancelNonInputSelect function isn't even called! I know that, because I put a debugger statement in it. When I click the row the second time, it is then called.

<ClientEvents OnRowSelecting="CancelNonInputSelect" OnRowDeselecting="CancelNonInputSelect" />

Where my CancelNonInputSelect function is:

function CancelNonInputSelect(sender, args) {
var e = args.get_domEvent();
//IE - srcElement, Others - target
var targetElement = e.srcElement || e.target;
//this condition is needed if multi row selection is enabled for the grid
if (typeof (targetElement) != "undefined") {
//is the clicked element an input checkbox? <input type="checkbox"...>
if (targetElement.tagName.toLowerCase() != "input" &&
(!targetElement.type || targetElement.type.toLowerCase() != "checkbox"))// && currentClickEvent)
{
//cancel the event
args.set_cancel(true);
}
}
else
args.set_cancel(true);
return false;
}

PLEASE HELP! This functionality alone, would prevent us from upgrading to your most recent version.
Brent

25 Answers, 1 is accepted

answered on 14 Dec 2012, 06:59 AM

Hi,

Thanks a lot for the post here. I too faced the same issue when we are trying to migrate to new telerik controls and was able to rectify the behavior where in it let me click on the button in the grid even after scrolling. But I lost the functionality where in I could choose multiple rows by Click Drag and Release mechanism

FYI: I have also set the property EnableDragToSelectRows="true"
But the multiselect functionality stops working as soon as I set the property UseClientSelectColumnOnly="true"

I need both the functionility in my grid.
1. I need to be able to click button in the grid to navigate to other webpage.
2. I also need to be able to multiselect rows(Click Drag and Release).
I have tried all combination unable to get it to work, not sure what I am doing wrong.

IE version: 8.0
Telerik version: 2012.3.1016.40

Please also be informed we have initiated the procurement of new version of telerik and we are using trial version to start off with migration and hence we would really appreciate if you could help though the 30 day trail period is over.
Thanks in advance.

Regards,
Lohitha

answered on 12 May 2013, 12:06 PM

<telerik:RadGrid ID="GroupContactGrid" runat="server" AllowFilteringByColumn="False"

AllowMultiRowSelection="true" Skin="MyCustomSkin" EnableEmbeddedSkins="False"

BackColor="White" AllowPaging="True" AllowSorting="True" AutoGenerateColumns="False"

GridLines="None" DataSourceID="SqlDataSource1" PageSize="20" ShowStatusBar="false"

AllowAutomaticDeletes="false" AllowAutomaticInserts="false" AllowAutomaticUpdates="false"

Width="99.7%" HorizontalAlign="Center" OnItemCreated="GroupContactGrid_ItemCreated"

OnItemCommand="GroupContactGrid_ItemCommand" OnDeleteCommand="GroupContactGrid_DeleteCommand"

OnLoad="GroupContactGrid_Load">

<HeaderContextMenu EnableEmbeddedSkins="False">

</HeaderContextMenu>

<PagerStyle Mode="NextPrevAndNumeric" AlwaysVisible="true" PrevPageToolTip="Previous"

NextPagesToolTip="Next" />

<MasterTableView CommandItemDisplay="Top" InsertItemPageIndexAction="ShowItemOnFirstPage"

DataSourceID="SqlDataSource1" DataKeyNames="intRefGroupID,GroupName" Width="100%"

ItemStyle-HorizontalAlign="Left" AlternatingItemStyle-HorizontalAlign="Left"

HierarchyLoadMode="Client" EditMode="EditForms" ShowHeader="true" HierarchyDefaultExpanded="false"

Name="Group">

<DetailTables>

<telerik:GridTableView AutoGenerateColumns="false" DataKeyNames="intRefGroupID,intContactID"

DataSourceID="SqlDataSource2" Width="100%" HierarchyLoadMode="Client" Name="Contact"

CommandItemDisplay="Top">

<ParentTableRelation>

<telerik:GridRelationFields DetailKeyField="intRefGroupID" MasterKeyField="intRefGroupID" />

</ParentTableRelation>

<Columns>

<telerik:GridClientSelectColumn UniqueName="CheckboxSelectColumn">

<HeaderStyle Width="40px" />

</telerik:GridClientSelectColumn>

<telerik:GridBoundColumn UniqueName="ContactName" HeaderText="Contact Name" DataField="ContactName"

SortExpression="ContactName">

</telerik:GridBoundColumn>

</Columns>

<CommandItemTemplate>

<div style="padding: 5px 5px;">

<span style="float: left;"><span id="spanAdd" runat="server" style="margin-left: 5px;

margin-top: 5px; margin-bottom: 5px; margin-right: 10px;">

<asp:LinkButton ID="btnInitInsert" runat="server" CommandName="InitInsert" CausesValidation="false">

<img id="imgAdd" runat="server" style="border: 0px; vertical-align: top;" alt=""

src="~/images/telerik/AddRecord.png" />

Add contact</asp:LinkButton>

</span><span id="spanDelete" runat="server" style="margin-left: 5px; margin-top: 5px;

margin-bottom: 5px; margin-right: 10px;">

<asp:LinkButton ID="btnDelete" runat="server" CommandName="Delete" OnClientClick="return ContactDelete();"

CausesValidation="false">

<img id="imgDelete" runat="server" style="border: 0px; vertical-align: top;" alt=""

src="~/images/telerik/Delete.png" />

Delete contact</asp:LinkButton>

</span></span>

</div>

</CommandItemTemplate>

</telerik:GridTableView>

</DetailTables>

<FilterItemStyle HorizontalAlign="Left" />

<ExpandCollapseColumn Visible="True">

</ExpandCollapseColumn>

<Columns>

<telerik:GridClientSelectColumn UniqueName="CheckboxSelectColumn">

<HeaderStyle Width="40px" />

<ItemStyle Width="40px" />

</telerik:GridClientSelectColumn>

<telerik:GridEditCommandColumn EditImageUrl="~/images/telerik/Edit.gif" ButtonType="ImageButton"

UniqueName="EditCommandColumn">

<HeaderStyle Width="40px" />

<ItemStyle Width="40px" />

<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton" />

</telerik:GridEditCommandColumn>

<telerik:GridImageColumn ImageUrl="~/images/telerik/meetings.gif" UniqueName="listGroup"

HeaderText="Module Permission" AlternateText="Module Permission">

<HeaderStyle Width="90px" />

<ItemStyle Width="90px" />

<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton" />

</telerik:GridImageColumn>

<telerik:GridImageColumn ImageUrl="~/images/telerik/meetings.gif" UniqueName="listField"

HeaderText="Field Permission" AlternateText="Field Permission">

<HeaderStyle Width="90px" />

<ItemStyle Width="90px" />

<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton" />

</telerik:GridImageColumn>

<telerik:GridImageColumn ImageUrl="~/images/telerik/meetings.gif" UniqueName="listRow"

HeaderText="Row Permission" AlternateText="Row Permission">

<HeaderStyle Width="90px" />

<ItemStyle Width="90px" />

<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton" />

</telerik:GridImageColumn>

<telerik:GridImageColumn ImageUrl="~/images/telerik/meetings.gif" UniqueName="SpecialPermField"

HeaderText="Special Permission" AlternateText="Special Permission">

<HeaderStyle Width="90px" />

<ItemStyle Width="90px" />

<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton" />

</telerik:GridImageColumn>

<telerik:GridBoundColumn DataField="GroupName" HeaderText="Group Name" SortExpression="GroupName"

UniqueName="GroupName">

</telerik:GridBoundColumn>

<telerik:GridImageColumn ImageUrl="~/images/telerik/Copy.png" UniqueName="copyPerm"

HeaderText="Copy Permission" AlternateText="Copy Permission">

<HeaderStyle Width="90px" />

<ItemStyle Width="90px" />

<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton" />

</telerik:GridImageColumn>

</Columns>

<ItemStyle HorizontalAlign="Left"></ItemStyle>

<AlternatingItemStyle HorizontalAlign="Left"></AlternatingItemStyle>

<EditFormSettings EditFormType="Template" ColumnNumber="3">

<FormTemplate>

<table id="Table2" cellspacing="2" cellpadding="1" width="100%" border="0" rules="none"

style="border-collapse: collapse; background: white;">

<tr>

<td style="width: 100px;">

Group Name:

</td>

<td>

<telerik:RadTextBox ID="txtGroupName" Text='<%# Bind( "GroupName") %>' runat="server"

Width="270px">

</telerik:RadTextBox>

<asp:RequiredFieldValidator ID="rfvGroupName" runat="server" ControlToValidate="txtGroupName"

ErrorMessage="*" Display="Dynamic" CssClass="errorFont"></asp:RequiredFieldValidator>

<asp:RegularExpressionValidator ID="revGroupName" runat="server" ControlToValidate="txtGroupName"

ValidationExpression="^[0-9a-zA-Z' ']+$" ErrorMessage="Special characters are not allowed. Enter only numbers and alphabets"></asp:RegularExpressionValidator>

</td>

</tr>

<tr>

<td colspan="3" align="left">

<asp:ImageButton ImageUrl="~/images/tick.gif" ID="btnInsert" CausesValidation="true"

runat="server" CommandName='<%# (Container as GridItem).OwnerTableView.IsItemInserted ? "PerformInsert" : "Update" %>'>

</asp:ImageButton>

<asp:ImageButton ID="btnCancel" ImageUrl="~/images/cancel.gif" runat="server" CausesValidation="False"

CommandName="Cancel"></asp:ImageButton>

</td>

</tr>

</table>

</FormTemplate>

</EditFormSettings>

<CommandItemTemplate>

<div style="padding: 5px 5px;">

<span style="float: left;"><span id="spanAdd" runat="server" style="margin-left: 5px;

margin-top: 5px; margin-bottom: 5px; margin-right: 10px;">

<asp:LinkButton ID="btnInitInsert" runat="server" CommandName="InitInsert" ToolTip="Add Group"

CausesValidation="false">

<img id="imgAdd" runat="server" style="border: 0px; vertical-align: top;" alt="Add group"

src="~/images/telerik/AddRecord.png" />

Add group</asp:LinkButton>

</span><span id="spanDelete" runat="server" style="margin-left: 5px; margin-top: 5px;

margin-bottom: 5px; margin-right: 10px;">

<asp:LinkButton ID="btnDelete" runat="server" CommandName="Delete" OnClientClick="return GroupDelete();"

CausesValidation="false">

<img id="imgDelete" runat="server" style="border: 0px; vertical-align: top;" alt="Delete group"

src="~/images/telerik/Delete.png" />

Delete group</asp:LinkButton>

</span></span><span><span style="margin-left: 5px; margin-top: 5px; margin-bottom: 5px;

margin-right: 10px;">

<asp:LinkButton ID="btnRefresh" runat="server" CommandName="RebindGrid">

<img id="imgRefresh" runat="server" style="border: 0px; vertical-align: top;" alt=""

src="~/images/telerik/Refresh.png" />

Refresh</asp:LinkButton>

</span></span>

</div>

</CommandItemTemplate>

</MasterTableView>

<ClientSettings AllowColumnsReorder="True" AllowDragToGroup="True" ReorderColumnsOnClient="True"

EnableRowHoverStyle="true">

<Selecting AllowRowSelect="True" />

</ClientSettings>

<FilterMenu EnableEmbeddedSkins="False">

</FilterMenu>

</telerik:RadGrid>

I used above for display multiple permission records. Now everything is working fine but when I change my paging (10 default) to 50 problem arise. Problem is I scroll grid and select last checkbox so checkbox has been clicked but grid scroll up automatically at first row. Yes checkbox selected but client getting confuse and shouting me please help me as soon as you can. Need urgent,

I am using below version of telerik dll
Telerik.Web.Design - 2012.3.1016.35
Telerik.Web.UI - 2012.3.1016.35
Telerik.Web.UI.Skins - 2012.3.1016.35

Hope it will give you batter understanding. Let me know if any more require.

Regards,
Jagdish

answered on 26 Oct 2015, 01:54 PM


Dear Team,

I am unable to upload the .webm format files.

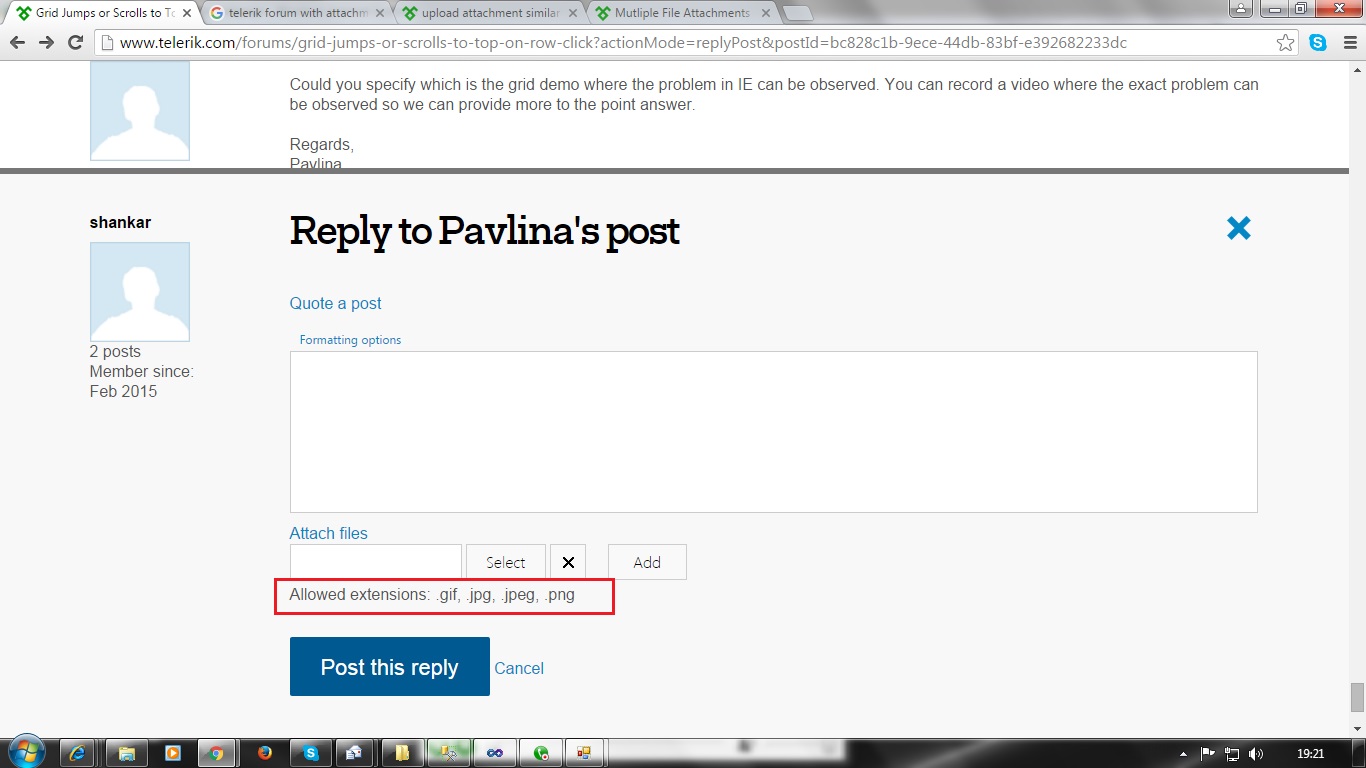

This forum is allowing only image files(please find the attached file)

how can i upload the video formatted files in this forum?

please do the needful .

Regards

Shankar Naspuri

answered on 19 Nov 2015, 04:01 PM

Hi Maria Ilieva,

Please find the below code for

ASPX

***********

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="AppWeb.WebForm1" %>

<%@ Register TagPrefix="telerik" Namespace="Telerik.Web.UI" Assembly="Telerik.Web.UI" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server" style="background-color: #ecf2f9;">
<telerik:RadScriptManager runat="server" ID="RadScriptManager1" />
<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
<AjaxSettings>
<telerik:AjaxSetting AjaxControlID="RadGrid1">
<UpdatedControls>
<telerik:AjaxUpdatedControl ControlID="RadGrid1"></telerik:AjaxUpdatedControl>
</UpdatedControls>
</telerik:AjaxSetting>
</AjaxSettings>
</telerik:RadAjaxManager>
<table>
<p> style="font-family: verdana; text-align: center; font-size: 100%; color: Maroon;
font-weight: bold">
Telerik Grid jumping issue in IE browsers, Grid Jumps or Scrolls to Top on bottom
cell Click</p>
<tr>
<td width="125px" >
</td>
<td width="750px">
<asp:Panel ID="grdPanel" runat="server">
<telerik:RadGrid ID="RadGrid1" runat="server" ShowStatusBar="true" AutoGenerateColumns="False"
Width="90%" PageSize="100" AllowSorting="True" AllowPaging="True" OnNeedDataSource="RadGrid1_NeedDataSource">
<PagerStyle Mode="NumericPages"></PagerStyle>
<MasterTableView DataKeyNames="JoId" AllowMultiColumnSorting="True">
<Columns>
<telerik:GridBoundColumn SortExpression="JoId" HeaderText="JoId" HeaderButtonType="TextButton"
DataField="JoId">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn SortExpression="SbcType" HeaderText="SbcType" HeaderButtonType="TextButton"
DataField="SbcType">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn SortExpression="JobOrderType" HeaderText="JobOrderType"
HeaderButtonType="TextButton" DataField="JobOrderType">
</telerik:GridBoundColumn>
<telerik:GridBoundColumn SortExpression="ApprovedBy" HeaderText="ApprovedBy" HeaderButtonType="TextButton"
DataField="ApprovedBy">
</telerik:GridBoundColumn>
</Columns>
</MasterTableView>
<ClientSettings AllowKeyboardNavigation="true">
<Selecting CellSelectionMode="MultiCell"></Selecting>
</ClientSettings>
</telerik:RadGrid>
</asp:Panel>
</td>
<td width="15px;" valign="bottom" nowrap="nowrap">
<span style="font-family: verdana; text-align: center; font-size: 90%; color: Maroon;
font-weight: bold">This bottom space of the page, If you click any cell of the grid,
it will jumping to top</span>
</td>
<td valign="top">
<p style="font-family: verdana; text-align: p center; font-size: 80%; color: Maroon;
font-weight: bold; writing-mode: tb-rl;">
Please scroll down to bottom.
</p>
<p style="font-family: verdana; text-align: center; font-size: 80%; color: #3300CC;
font-weight: bold; writing-mode: tb-rl;">
Please scroll down to bottom.
</p>
</td>
</tr>
</table>
</form>
</body>
</html>
==========================================================

ASPX.CS

**************

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using Telerik.Web.UI;

namespace AppWeb
{
public partial class WebForm1 : System.Web.UI.Page
{
DataTable dtJO;

protected void Page_Load(object sender, EventArgs e)
{
CreateTempDT();
}
public void CreateTempDT()
{
dtJO = new DataTable();
dtJO.Columns.AddRange(new DataColumn[5] { new DataColumn("JoId", typeof(int)),
new DataColumn("SbcType", typeof(string)),
new DataColumn("JobOrderType",typeof(string)),
new DataColumn("ApprovedBy",typeof(string)),
new DataColumn("Status",typeof(string))});

dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");
dtJO.Rows.Add(6, "MNO", "JO90", "TP", "CN");
dtJO.Rows.Add(7, "PQR", "JO32", "SP", "AA");
dtJO.Rows.Add(1, "ABC", "JO12", "JK", "CN");
dtJO.Rows.Add(2, "DEF", "JO23", "SN", "AA");
dtJO.Rows.Add(3, "GHI", "JO40", "BR", "WC");
dtJO.Rows.Add(5, "JKL", "JO86", "NN", "WP");

}

protected void RadGrid1_NeedDataSource(object source, Telerik.Web.UI.GridNeedDataSourceEventArgs e)
{
if (!e.IsFromDetailTable)
{
RadGrid1.DataSource = dtJO;
}
}
}
}

===============================================

Please do the needful.

Regards,

Shankar Naspuri

answered on 24 Nov 2015, 12:52 PM

Hello,

Try to ajaxify the container asp Panel like this:

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

<AjaxSettings>

<telerik:AjaxSetting AjaxControlID="grdPanel">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="grdPanel"></telerik:AjaxUpdatedControl>

</UpdatedControls>

</telerik:AjaxSetting>

</AjaxSettings>

</telerik:RadAjaxManager>

and see how it goes.

Regards,
Maria Ilieva
Telerik

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
