Grid Column EntityFramework with related tables

[Alex Jimenez]

Hi,

I have a telerik project with Entity Framework.

I want to show de value of the related tables in a GridBoundColumn, but ever come empty.

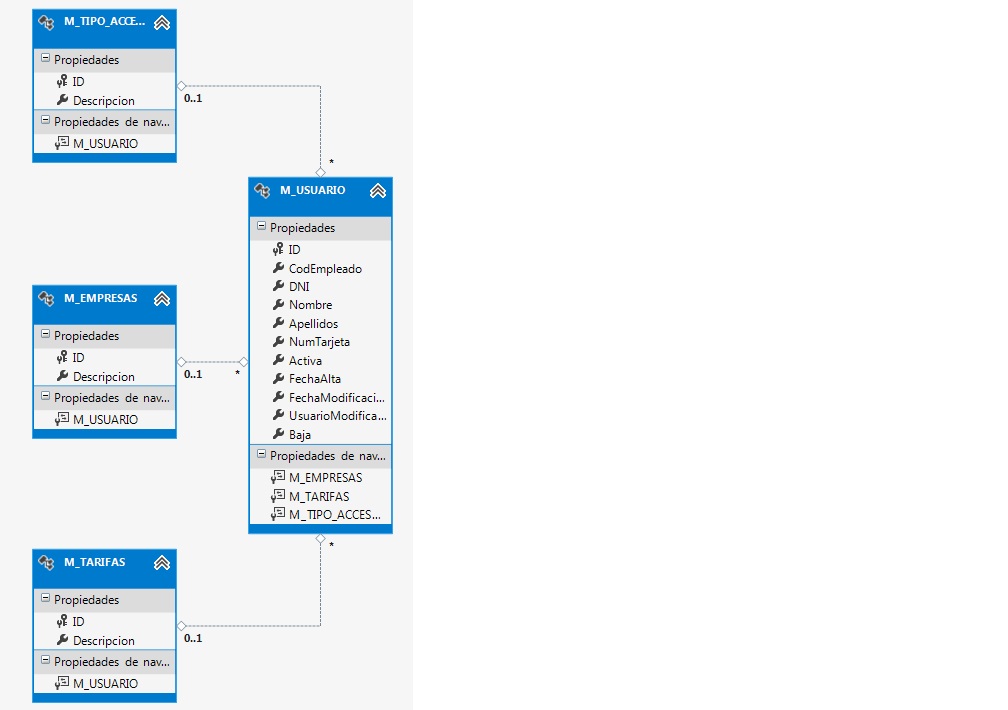

I Attach a picture showing the related tables, and the code in the aspx.

Please , someone can help me? Thanks

Code in ASPX



        <telerik:RadGrid ID="RadGrid1" runat="server" CssClass="RadGrid" GridLines="None"

        AllowPaging="True" PageSize="50" AllowSorting="True" AutoGenerateColumns="False"

        ShowStatusBar="true" AllowFilteringByColumn="True"

        DataSourceID="EntityDataSourceUsuarios" OnDeleteCommand="RadGrid1_RowDeleting" OnItemDeleted="RadGrid1_ItemDeleted"

        OnUpdateCommand="RadGrid1_UpdateCommand"  OnItemCommand="RadGrid1_ItemCommand" OnPreRender="RadGrid1_PreRender" AllowAutomaticUpdates="true"  >



        <MasterTableView DataSourceID="EntityDataSourceUsuarios" AutoGenerateColumns="False"

            DataKeyNames="ID" CommandItemDisplay="Top" PageSize="50">



Columns…..

<telerik:GridBoundColumn DataField="M_EMPRESAS.Descripcion" HeaderText="Empresa" SortExpression="M_EMPRESAS.Descripcion" UniqueName="M_EMPRESAS.Descripcion" >

                </telerik:GridBoundColumn>

                <telerik:GridBoundColumn DataField="M_TARIFAS.ID" HeaderText="Tarifa" SortExpression="M_TARIFAS.ID" UniqueName="M_TARIFAS.ID">

                </telerik:GridBoundColumn>

                <telerik:GridBoundColumn DataField="M_TIPO_ACCESO_TARJETA.ID" DataType="System.Int32" HeaderText="Acceso" SortExpression="M_TIPO_ACCESO_TARJETA.ID" UniqueName="M_TIPO_ACCESO_TARJETA.ID" >

                </telerik:GridBoundColumn>

Entitys…..




<asp:EntityDataSource ID="EntityDataSourceUsuarios" runat="server"

            DefaultContainerName="HARVESTEntities" EntitySetName="M_USUARIO" OrderBy="it.[CodEmpleado]"

            EntityTypeFilter="M_USUARIO" EnableUpdate="True" EnableDelete="True" EnableInsert="True" ConnectionString="name=HARVESTEntities">

        </asp:EntityDataSource>

        <asp:EntityDataSource ID="EntityDataSourceAccesoTarjeta" runat="server"

            DefaultContainerName="HARVESTEntities" EntitySetName="M_TIPO_ACCESO_TARJETA" OrderBy="it.[ID]"

            ConnectionString="name=HARVESTEntities">

        </asp:EntityDataSource>

        <asp:EntityDataSource ID="EntityDataSourceEmpresa" runat="server"

            DefaultContainerName="HARVESTEntities" EntitySetName="M_EMPRESAS" OrderBy="it.[ID]"

            ConnectionString="name=HARVESTEntities">

        </asp:EntityDataSource>

        <asp:EntityDataSource ID="EntityDataSourceTarifa" runat="server"

            DefaultContainerName="HARVESTEntities" EntitySetName="M_TARIFAS" OrderBy="it.[ID]"

            ConnectionString="name=HARVESTEntities">

        </asp:EntityDataSource>

[Radoslav]

Hi,

To achieve the desired functionality you need to set the M_EMPRESAS, M_TARIFAS  and M_TIPO_ACCESO_TARJETA tables into the Include property of the EntityDataSource:

<asp:EntityDataSource ID="EntityDataSourceUsuarios" runat="server"
        DefaultContainerName="HARVESTEntities" EntitySetName="M_USUARIO" OrderBy="it.[CodEmpleado]"
        EntityTypeFilter="M_USUARIO" EnableUpdate="True" EnableDelete="True" EnableInsert="True"
         ConnectionString="name=HARVESTEntities" Includ="M_EMPRESAS, M_TARIFAS, M_TIPO_ACCESO_TARJETA">
    </asp:EntityDataSource>

More about Include property you can find here:
http://msdn.microsoft.com/en-us/library/system.web.ui.webcontrols.entitydatasource.include(v=vs.110).aspx

I hope this helps.

Regards,
Radoslav
Telerik
