Export to PDF Datagrid Problem

[Het]

Telerik Support,

I am refering the sample to export from grid to PDF at http://www.telerik.com/DEMOS/ASPNET/Prometheus/Grid/Examples/GeneralFeatures/PdfExport/DefaultCS.aspx

But its not working for me as desired. Below is my code, when I click on the PDF, data is not exported to pdf and the PDF button disappears.

<

telerik:RadGrid ID="gd" runat="server" AllowPaging="True" AllowSorting="True" GridLines="None"

Skin="Office2007" AutoGenerateColumns="False" OnItemDataBound="gd_ItemDataBound"

Height="100%" Width="100%" PageSize="5" AllowMultiRowSelection="true">

<ExportSettings IgnorePaging="false" OpenInNewWindow="true" ExportOnlyData="true">

<Pdf AllowAdd="false" AllowCopy="true" AllowModify="true" AllowPrinting="true" Author="Anonymous"

Keywords="None" PageBottomMargin="1in" PageLeftMargin="1in" PageRightMargin="1in"

PageTopMargin="1in" PageTitle="Status Result Export" Subject="Status Result Export"

Title="Status Result export" PaperSize="Letter" />

</ExportSettings>

<%

--<PagerStyle Mode="NextPrevAndNumeric" Position="Bottom" NextPageText="Next" PrevPageText="Prev" />--%>

<ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False" Font-Strikeout="False"

Font-Underline="False" VerticalAlign="Top" Wrap="True" Height="100%" Width="100%" />

<MasterTableView Height="100%">

<RowIndicatorColumn Visible="False">

<HeaderStyle Width="20px" />

</RowIndicatorColumn>

<ExpandCollapseColumn Resizable="False" Visible="False">

<HeaderStyle Width="20px" />

</ExpandCollapseColumn>

<PagerTemplate>

<div style="display:'block'">

<asp:ImageButton ID="ExportToPDF" Style="cursor: pointer;" ImageUrl="~/App_Themes/Pdf.png"

AlternateText="Export to PDF" CommandName="ExportToPdf" runat="server"></asp:ImageButton>

</div>

</PagerTemplate>

<Columns>

<

telerik:GridTemplateColumn HeaderText="Item #" ItemStyle-Width="10%" ItemStyle-VerticalAlign="Top">

<ItemTemplate>

<asp:Label ID="lblItemNbr" runat="server"></asp:Label>

<asp:TextBox ID="txtEnrtaskId" CssClass="HideLabel" runat="server" Width="0px" Height="0px"></asp:TextBox>

</ItemTemplate>

<ItemStyle VerticalAlign="Top" Width="10%"></ItemStyle>

</telerik:GridTemplateColumn>

</

Columns>

<EditFormSettings>

<PopUpSettings ScrollBars="None" />

</EditFormSettings>

</MasterTableView>

<ClientSettings AllowColumnsReorder="True" ReorderColumnsOnClient="True" AllowKeyboardNavigation="true">

<ClientEvents OnRowContextMenu="gdRowContextMenu" />

<Selecting AllowRowSelect="True" EnableDragToSelectRows="true" />

<Scrolling AllowScroll="False" UseStaticHeaders="False" />

<Resizing AllowColumnResize="True" ResizeGridOnColumnResize="True" EnableRealTimeResize="True">

</Resizing>

</ClientSettings>

</telerik:RadGrid>

Could you please advice if I am missing anything here ?

[Daniel]

Hello Het,

I'm unable to reproduce the mentioned behavior and thus I attached an example based on your code. Please modify the provided website in order to be able to replicate it.

Regards,
Daniel
the Telerik team

Check out Telerik Trainer, the state of the art learning tool for Telerik products.

[Het]

Its still not working in my case.

[Daniel]

Hello Het,

We need you cooperation in order to bring the attached project to that state you claim to be causing the mentioned issue. Please note that the project is based on the code you provided.

Regards,
Daniel
the Telerik team

Check out Telerik Trainer, the state of the art learning tool for Telerik products.

[Het]

Daniel,

I modified my program as per code given by you. But its not giving any error as well as its not opening any new window to show the exported data.

I just replicated you code.

Is it that Export doesn't work with GridTemplateColumns ?

Thanks,
Het

[Daniel]

Hello Het,

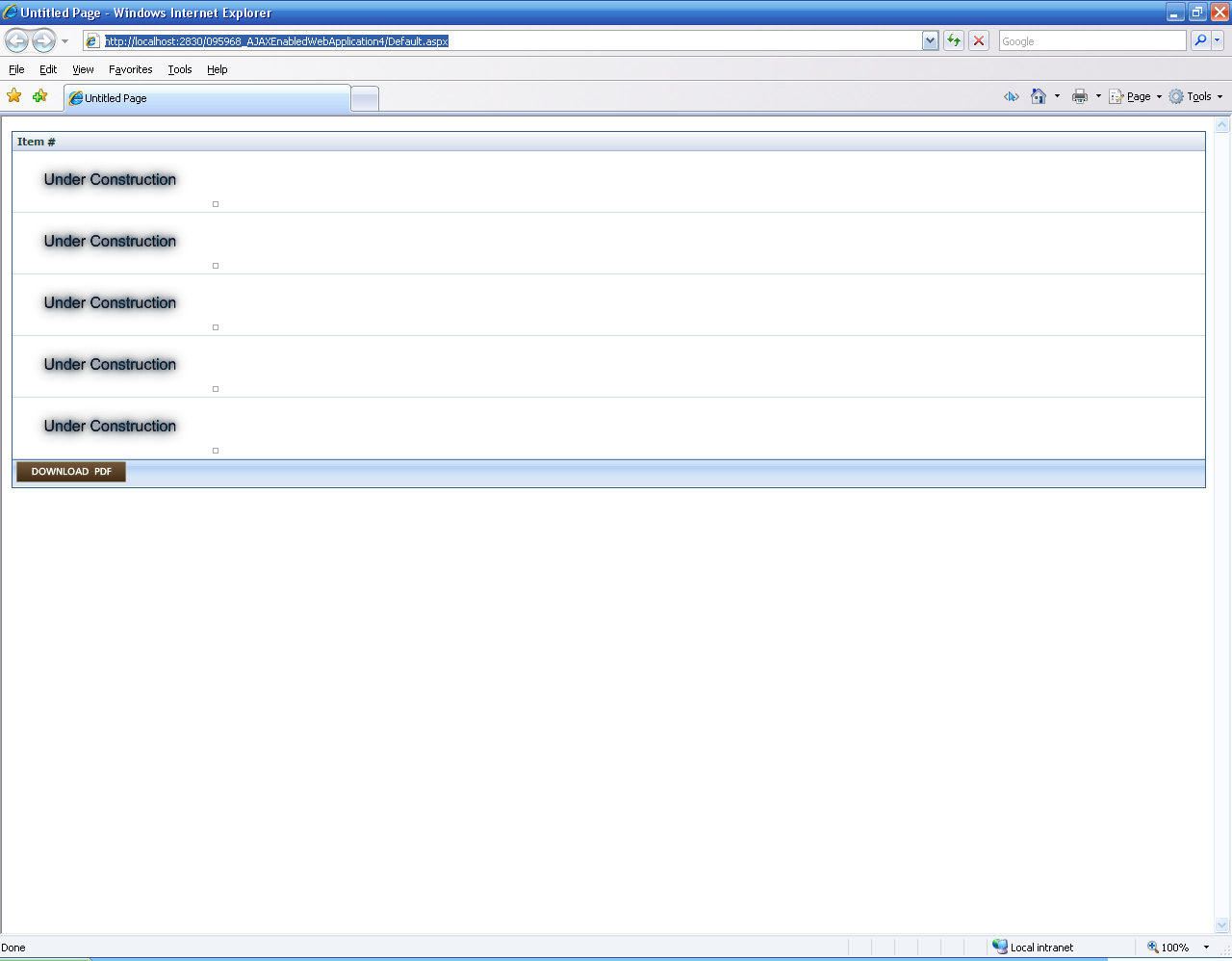

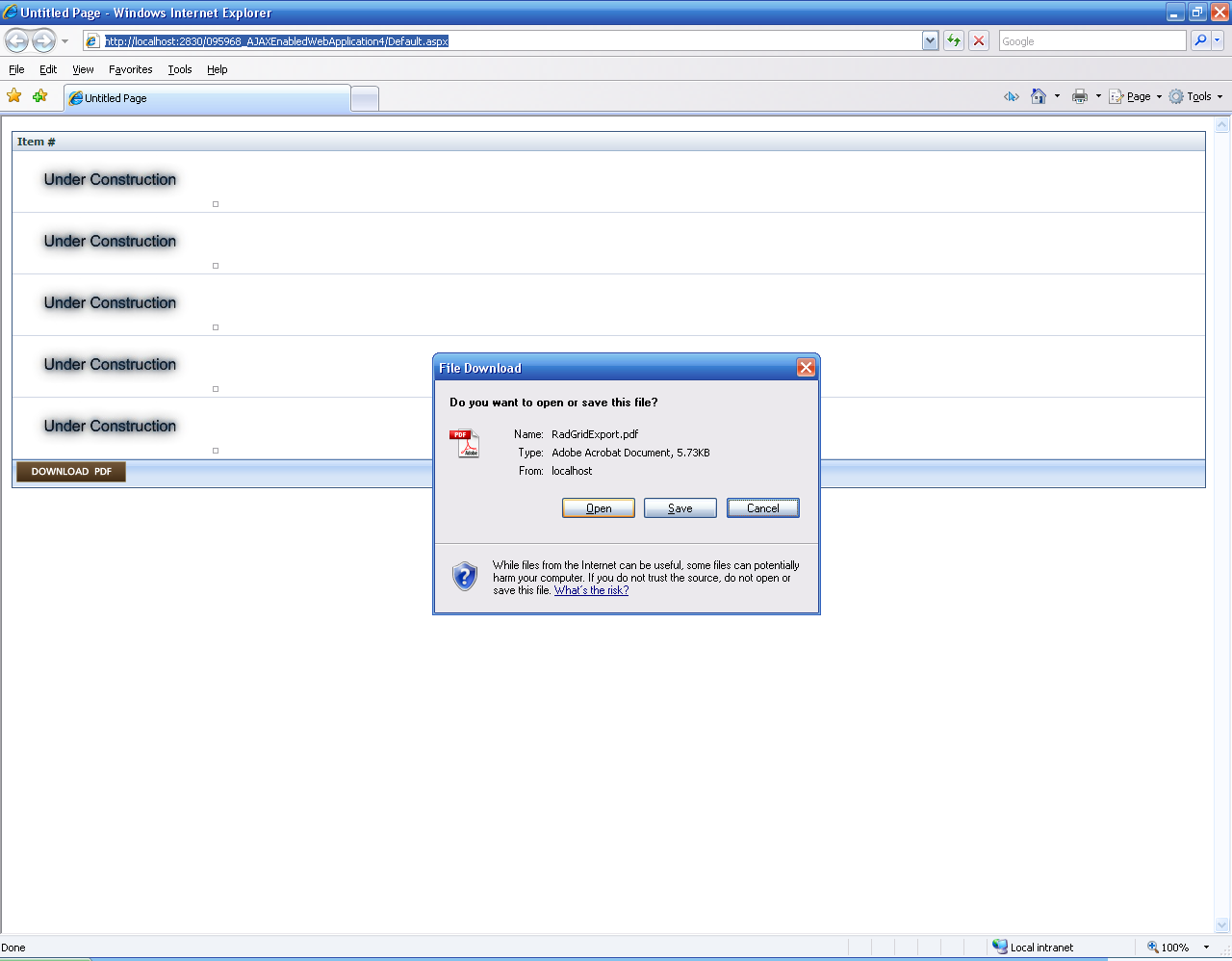

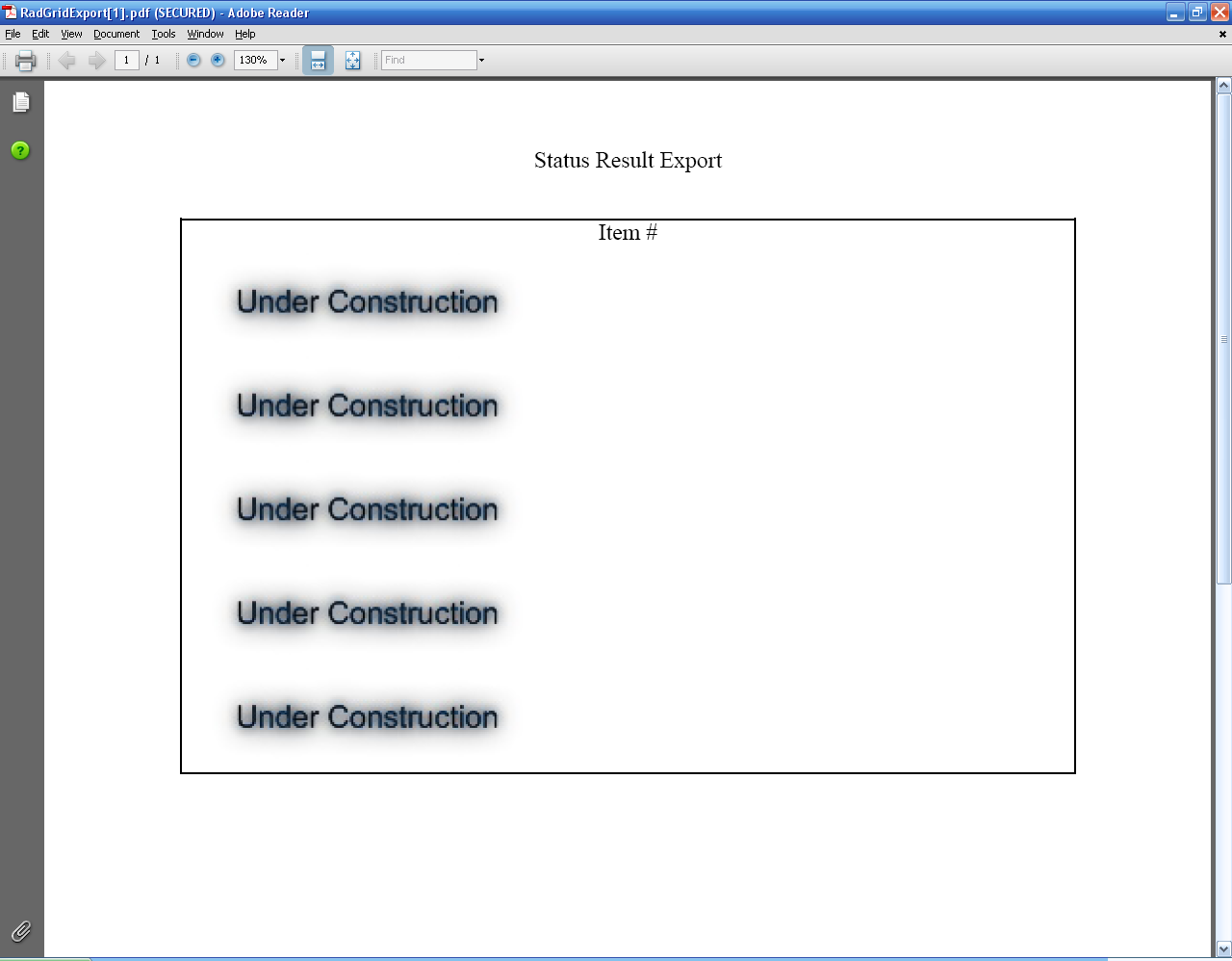

Based on the code I attached I believe that you should not experience any problems while exporting to PDF from template column using the latest version (Q2 2008). I tested this behavior on several machines and I confirm that it is working properly. I attached some screenshots illustrating the behavior to this post.

Could you please check your RadControls for ASP.NET AJAX version?

Kind regards,
Daniel
the Telerik team

Check out Telerik Trainer, the state of the art learning tool for Telerik products.

[Het]

Thanks Daniel for your response.

I will try with the Q2 release and check.

Thanks,
Het
