Details section repeats in report with 2 groups

2 posts, 0 answers
  1. Brian
    Brian avatar
    21 posts
    Member since:
    Jul 2013

    Posted 19 Nov 2014 Link to this post

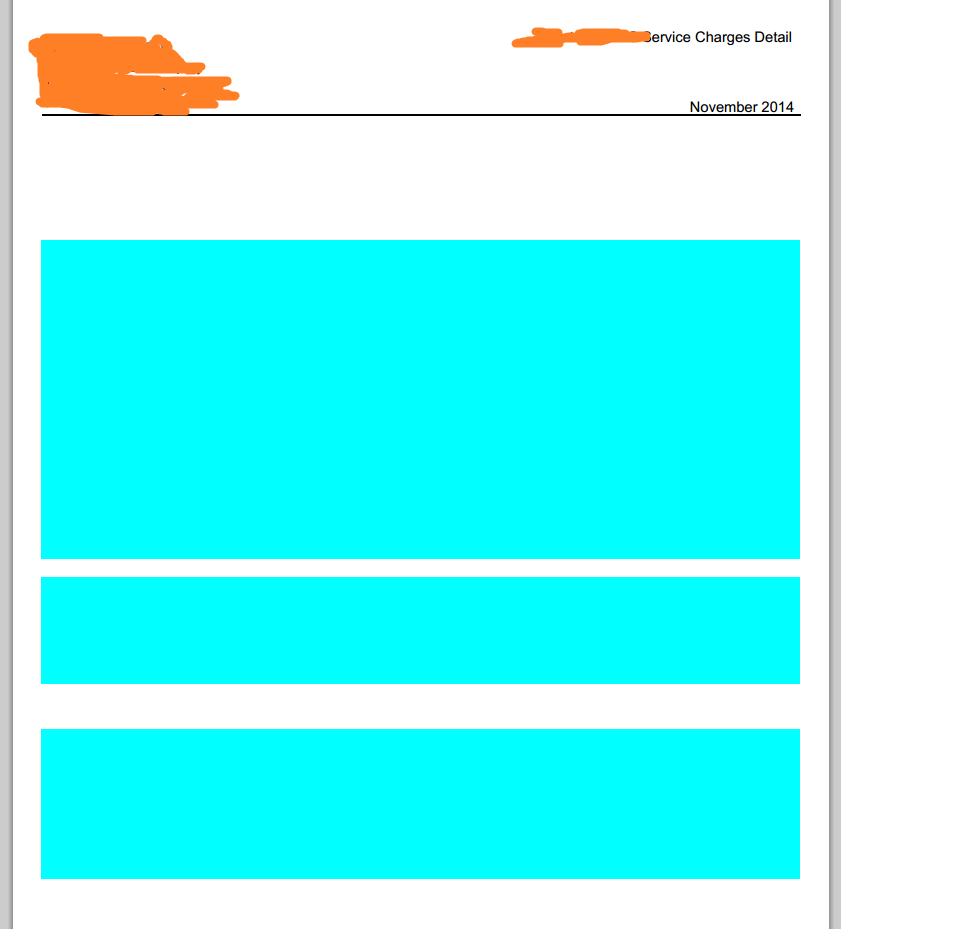

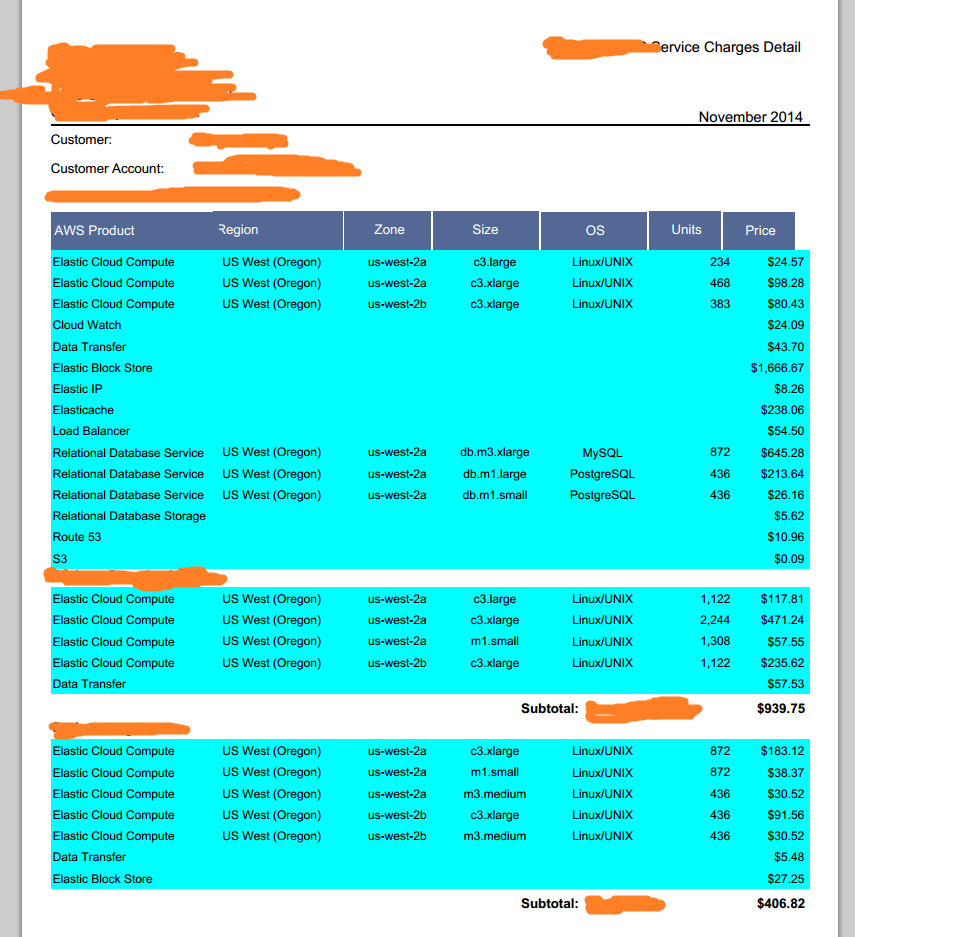

    My report is broken down by subcustomer and then by project (e.g. 2 groups).  It displays on screen correctly but when I export it to a pdf, the details section repeats on a second page although the details do not actually appear.  I used a color background to see what's going on.This happens across the entire report so that a 4 page report will turn into 8 pages, for example.  To be clear, the report layout is GH1, GH2, details, GF2, GF1.  Please look at the attached screen shots and you'll see how it's repeating.

    What should I look at in my report to address this problem?
  2. Nasko
    Admin
    Nasko avatar
    1050 posts

    Posted 21 Nov 2014 Link to this post

    Hello Brian,

    Your report is too wide to fit on the specified physical page size in the Report.PageSettings properties. You can see a warning sign in the top left corner of the report designer, when the report is wider than the configured physical page size.
    You can find more information on the described behavior in the Horizontal Paging section of the Understanding Pagination help article.
    To fix the issue either reduce the width of your report items, or modify the report's PageSettings properties.

    Regards,
    Nasko
