Data binding in Grid

[Chris1108]

Hello,

I have the following data model which I want to display in TelerikGrid.

The columns should be Name, Price (which is easy), but I also want to display the topping columns, where each caption is the key of the dicionary entry and the displayed value should be the value from the dictionary entry:

Expected result:

Name     |    Price      |      Tomato       |    Cheese       |     Bacon

Cheese  |   8.99         |     low               |   very much   |   no

Tomato  |   5.99        |     very much   |  not so much  |   no

Bacon     |   10.99      |     low               |  not so much  |   three pieces



Is that possible by using the TelerikGrid and how should the data binding look like ?

I took the sample code from the expando sample to create the columns based on the dictionary entries

but I didn't get the values from the dictionary to display each value in the rows.



public class Pizza
    {
        public string Name { get; set; }

        public decimal Price { get; set; }

        public IDictionary<string, string> Toppings { get; set; }


        public static IList<Pizza> PizzaRecipies()
        {
            return new List<Pizza>()
            {
                new Pizza()
                {
                    Name = "Cheese",
                    Price = 8.99M,
                    Toppings = new Dictionary<string, string>()
                    {
                        {"Tomato","low"},
                        {"Cheese", "very much"},
                        {"Bacon", "no"}
                    }
                },
                new Pizza()
                {
                    Name = "Tomato",
                    Price = 5.99M,
                    Toppings = new Dictionary<string, string>()
                    {
                        {"Tomato","very much"},
                        {"Cheese", "not so much"},
                        {"Bacon", "no"}
                    }
                },
                new Pizza()
                {
                    Name = "Bacon",
                    Price = 10.99M,
                    Toppings = new Dictionary<string, string>()
                    {
                        {"Tomato","low"},
                        {"Cheese", "not so much"},
                        {"Bacon", "three pieces"}
                    }
                }

            };
        }
    }

[Radko]

Hi Christian,

In this case, you can bind the Grid in several ways.

If you prefer using a Dictionary, a GridColumn Template might do the job for you:

First, you need to introduce a collection with all the available toppings, which will be used to generate the columns:

public List<string> Toppings => new List<string> { "Tomato", "Cheese", "Bacon" };

Then, within the Grid, you can iterate the Toppings collection to generate a column for each topping:

<TelerikGrid Data="@Data">
            ...
            foreach (var topping in Toppings)
            {
                <GridColumn Title="@topping"><Template>
                        @((context as Pizza).Toppings.First(entry => entry.Key == topping).Value)
                    </Template></GridColumn>
            }
             ...
</TelerikGrid>

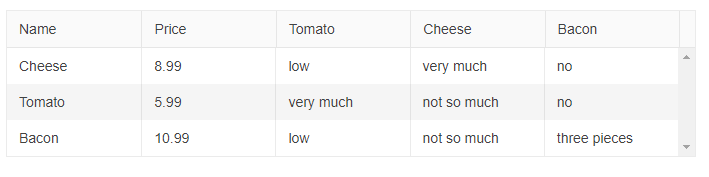

The final result looks like the desired one (the source code is also attached):

Another approach would be to use a dynamic ExpandoObject and populate the columns dynamically. We have a demo for this here - Binding to Expando object

Lastly, as mentioned in these docs - Grid Data Bound Columns - Notes, it might be best to simply flatten the Dictionary before passing it to the Grid.

I trust the above will help you resolve this. In case of any more questions, do not hesitate to reach out. Thank you!

Regards, Radko Stanev Progress Telerik
