Component to use to simulate WinForms GroupBox

1 Answer 459 Views
Form
NiV-L-A
Top achievements
Rank 2
Iron
NiV-L-A asked on 09 Jul 2023, 08:18 PM

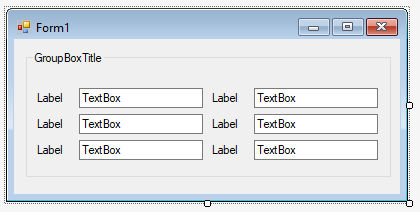

Which component can I use to simulate WinForms GroupBox, to group some fields in a square with a small title on the upper left? (See example in image1 from WinForms).

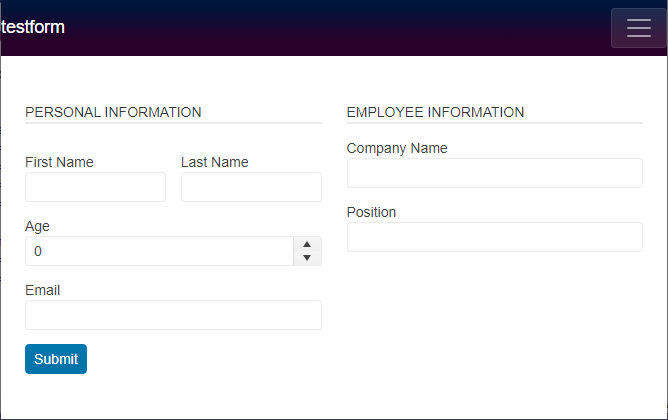

The nearest thing I've found is FormGroup, but doesn't visually group fields in a square, shows only upper line with title (see example on image2, groups "Personal information" and "Employee information"). This way, if after the group I have other fields not in a group (so no title needed for them) the user doesn't know when the group finishes.

Thank you.

1 Answer, 1 is accepted

Sort by
0
Dimo
Telerik team
answered on 12 Jul 2023, 12:43 PM

Hi Fabio,

You have two options:

Here is an example for the first option.

<TelerikForm Model="@person"
             Columns="2" ColumnSpacing="25px"
             Class="group-borders">
    <FormValidation>
        <DataAnnotationsValidator></DataAnnotationsValidator>
    </FormValidation>
    <FormItems>
        <FormGroup LabelText="Personal Information" Columns="2" ColumnSpacing="15px">
            <FormItem LabelText="First Name" Field="@nameof(Person.FirstName)"></FormItem>
            <FormItem LabelText="Last Name" Field="@nameof(Person.LastName)"></FormItem>
            <FormItem LabelText="Age" Field="@nameof(Person.Age)" ColSpan="2"></FormItem>
            <FormItem LabelText="Email" Field="@nameof(Person.Email)" ColSpan="2"></FormItem>
            <FormItem LabelText="Company Name" Field="@nameof(Person.CompanyName)"></FormItem>
            <FormItem LabelText="Position" Field="@nameof(Person.Position)"></FormItem>
        </FormGroup>
    </FormItems>
</TelerikForm>

<style>
    .group-borders.k-form .k-form-fieldset {
        border: 1px solid red;
    }

    .group-borders.k-form .k-form-legend {
        width: auto;
        border-width: 0;
        padding: 0 .3em;
    }
</style>

@code {
    public Person person { get; set; } = new Person();

    public class Person
    {
        public string FirstName { get; set; }

        public string LastName { get; set; }

        public int Age { get; set; }

        public string Email { get; set; }

        public string CompanyName { get; set; }

        public string Position { get; set; }
    }
}

Regards,
Dimo
Progress Telerik
