ChartTitle Position

1 Answer 247 Views
Charts
This is a migrated thread and some comments may be shown as answers.
Ilan
Top achievements
Rank 1
Bronze
Iron
Veteran
Ilan asked on 06 Mar 2021, 04:00 PM

Is there a way to change all the ChartTitle text alignment? I need it to be left: 0

i.e: Currently X=113.5

<text style="font:18.288px &quot;Helvetica Neue&quot;, Helvetica, Arial, sans-serif;white-space:pre;" x="113.5" y="32" stroke="none" fill="rgb(33, 37, 41)" fill-opacity="1">...</text>

I have several charts in the page





1 Answer, 1 is accepted

Sort by
0
Marin Bratanov
Telerik team
answered on 08 Mar 2021, 11:47 AM

Hi Ilan,

The <ChartTitle> exposes the Align parameter that you can use for this. As a general rule of thumb, when customizing the charts, look for parameters and nested tags as described here: https://docs.telerik.com/blazor-ui/components/chart/overview#customize-chart-elements---nested-tags-settings.

<TelerikChart>

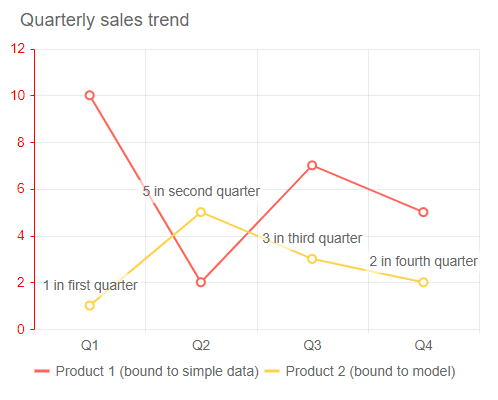

    <ChartTitle Text="Quarterly sales trend" Align="@ChartTitleAlign.Left"></ChartTitle>

    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Line" Name="Product 1 (bound to simple data)" Data="@simpleData">
        </ChartSeries>
        <ChartSeries Type="ChartSeriesType.Line" Name="Product 2 (bound to model)" Data="@modelData" Field="@nameof(MyDataModel.SecondSeriesValue)">
            <ChartSeriesLabels Template="#=value# in #=dataItem.ExtraData# quarter" Visible="true"></ChartSeriesLabels>
        </ChartSeries>
    </ChartSeriesItems>

    <ChartValueAxes>
        <ChartValueAxis Color="red"></ChartValueAxis>
    </ChartValueAxes>

    <ChartCategoryAxes>
        <ChartCategoryAxis Categories="@xAxisItems"></ChartCategoryAxis>
    </ChartCategoryAxes>

    <ChartLegend Position="Telerik.Blazor.ChartLegendPosition.Bottom">
    </ChartLegend>
</TelerikChart>

@code {
    public class MyDataModel
    {
        public int SecondSeriesValue { get; set; }
        public string ExtraData { get; set; }

    }

    public List<MyDataModel> modelData = new List<MyDataModel>()
{
        new MyDataModel() { SecondSeriesValue = 1, ExtraData = "first" },
        new MyDataModel() { SecondSeriesValue = 5, ExtraData = "second" },
        new MyDataModel() { SecondSeriesValue = 3, ExtraData = "third" },
        new MyDataModel() { SecondSeriesValue = 2, ExtraData = "fourth" },
    };

    public List<object> simpleData = new List<object>() { 10, 2, 7, 5 };

    public string[] xAxisItems = new string[] { "Q1", "Q2", "Q3", "Q4" };
}



Regards,
Marin Bratanov
Progress Telerik
