ChartCategoryAxisLabels DateAxis Skip n Labels

2 Answers 308 Views
Charts
This is a migrated thread and some comments may be shown as answers.
randy
Top achievements
Rank 1
randy asked on 15 Feb 2020, 03:03 AM

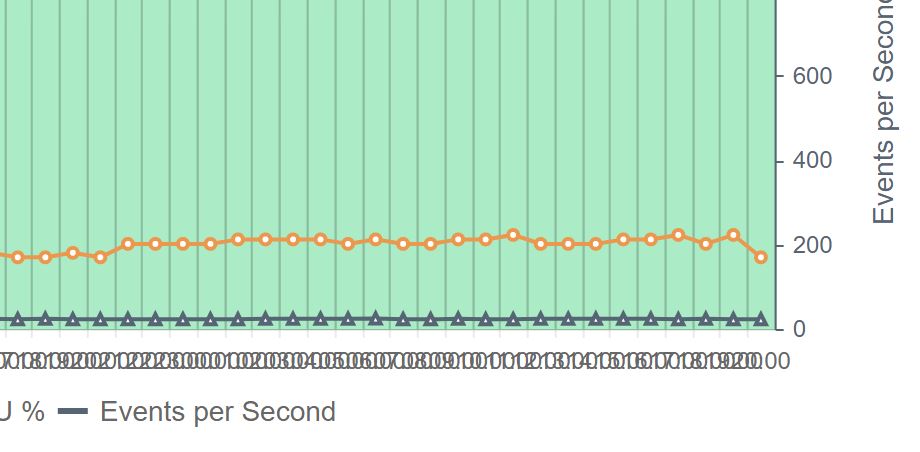

I don't want to render fewer categories values on the chart itself.  I just want to render the category axis label every n times so that you can read them when there are a lot of data points.  I don't want to lose the granularity.  See the date category axis in the attached screen shot please.  Suggestions?

2 Answers, 1 is accepted

Sort by
0
Accepted
Marin Bratanov
Telerik team
answered on 15 Feb 2020, 09:59 AM

Hi Randy,

If you are using a real Date axis (ChartCategoryAxis="@ChartCategoryAxisType.Date"), the chart will always perform some aggregation of the data based on the base units. If you don't want that - create string fields in the model that will hold the desired string representation of the dates and use them in a "regular" chart (that is, one that does not use ChartCategoryAxisType.Date). This will create one x-axis item per model data point and they will all be evenly spaced.

That said, you can set that every n-th label will be rendered through the Step parameter of the x-axis labels. Here's an example I made for you:



<TelerikChart>

    <ChartCategoryAxes>
        <ChartCategoryAxis Type="ChartCategoryAxisType.Date">
            <ChartCategoryAxisLabels Step="7" />
        </ChartCategoryAxis>
    </ChartCategoryAxes>

    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Column" Name="Product 1 (SUM)" Data="@chartData"
                     Field="@nameof(MyDataModel.Product1)" CategoryField="@nameof(MyDataModel.MySharedCategories)"
                     Aggregate="ChartSeriesAggregate.Sum">
            <ChartSeriesLabels Visible="true"></ChartSeriesLabels>
        </ChartSeries>
        <ChartSeries Type="ChartSeriesType.Column" Name="Product 2 (COUNT)" Data="@chartData"
                     Field="@nameof(MyDataModel.Product2)" Aggregate="ChartSeriesAggregate.Count">
            <ChartSeriesLabels Visible="true"></ChartSeriesLabels>
        </ChartSeries>
    </ChartSeriesItems>

</TelerikChart>

@code {
    public class MyDataModel
    {
        public DateTime MySharedCategories { get; set; }
        public int Product1 { get; set; }
        public int Product2 { get; set; }
    }

    public List<MyDataModel> chartData = new List<MyDataModel>()
    {
        new MyDataModel() { MySharedCategories = new DateTime(2019, 11, 11), Product1 = 1, Product2 = 2 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 15), Product1 = 2, Product2 = 3 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 19), Product1 = 3, Product2 = 4 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 28), Product1 = 4, Product2 = 5 },
    };
}

You may also want to rotate the labels vertically, especially if the Format you use is longer - this will make them narrower so you will be able to see more of them without overlap. Here's a basic example:

<TelerikChart>

    <ChartCategoryAxes>
        <ChartCategoryAxis Type="ChartCategoryAxisType.Date">
            <ChartCategoryAxisLabels Step="7">
                <ChartCategoryAxisLabelsRotation Angle="-90" />
            </ChartCategoryAxisLabels>
        </ChartCategoryAxis>
    </ChartCategoryAxes>

    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Column" Name="Product 1 (SUM)" Data="@chartData"
                     Field="@nameof(MyDataModel.Product1)" CategoryField="@nameof(MyDataModel.MySharedCategories)"
                     Aggregate="ChartSeriesAggregate.Sum">
            <ChartSeriesLabels Visible="true"></ChartSeriesLabels>
        </ChartSeries>
        <ChartSeries Type="ChartSeriesType.Column" Name="Product 2 (COUNT)" Data="@chartData"
                     Field="@nameof(MyDataModel.Product2)" Aggregate="ChartSeriesAggregate.Count">
            <ChartSeriesLabels Visible="true"></ChartSeriesLabels>
        </ChartSeries>
    </ChartSeriesItems>

</TelerikChart>

@code {
    public class MyDataModel
    {
        public DateTime MySharedCategories { get; set; }
        public int Product1 { get; set; }
        public int Product2 { get; set; }
    }

    public List<MyDataModel> chartData = new List<MyDataModel>()
    {
        new MyDataModel() { MySharedCategories = new DateTime(2019, 11, 11), Product1 = 1, Product2 = 2 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 15), Product1 = 2, Product2 = 3 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 19), Product1 = 3, Product2 = 4 },
        new MyDataModel() { MySharedCategories = new DateTime(2019, 12, 28), Product1 = 4, Product2 = 5 },
    };
}



Regards,
Marin Bratanov
Progress Telerik

 UI for Blazor
0
randy
Top achievements
Rank 1
answered on 15 Feb 2020, 01:56 PM
Fantastic support!  Thank you
