Dear All.

I have a listview within the listview items are displayed. This is my current code for the html.

<section>
       <script type="text/x-kendo-tmpl" id="templateRC">

            <div id="selectedRC" class=" SetHeight">
                <span>#:ID#</span>
            </div>
        </script>


        <div class="demo-section k-content wide">
            @(Html.Kendo().ListView<SLM.Models.ViewModel>()
            .Name("listView")
            .TagName("div")
            .ClientTemplateId("templateRC")
            .DataSource(dataSource => dataSource
            .Ajax()
            .Read(read => read.Action("_Reports_Chart", "Home", new { iTypeID = Model.TYPE2_ID })
            )
            )
            .Selectable(ListViewSelectionMode.Single)
            //  .Events(events => events.Change("onSelectReport"))
            )
        </div>
    </section>

My css Code:

.SetHeight {

    width: calc(50% - 3%);
    border: 1px solid #008000;
    margin: 1%;
    float: left;
}

When I check my browser the items will displayed like rectangles, so theyre not equal width and height. I tried adding some javascript to get the width and use it for the height but it keeps displaying like a rectangle.

The Jquery:

$(function () {
    var divWidth = $('.SetHeight').width();
    $('.SetHeight').height(divWidth);
    console.log(divWidth);
});



(logging also returns null. When I create a custom project on codepen. it does work for some reason.)

So now is my question: What do I need to change/add/remove to make the boxes equal width and height(squares).

Kind regards. Bjorn

Stoyan
Telerik team
 answered on 19 Aug 2022
1 answer
197 views

I was converting HtmlHelps to TagHelpers because the formatting in my code files is getting out of control. I realized that some Kendo controls are not that straightforward to convert.

This works fine:

@(Html.Kendo().TabStrip()
      .Name("tabStrip1")
      .SelectedIndex(0)
      .Animation(animation => animation.Open(open => open.Fade(FadeDirection.In)))
      .Items(items =>
      {
	      items.Add().SpriteCssClasses("fa-duotone fa-clock-rotate-left").Text("History").Content(@<text>@Html.DisplayFor(m => m.History, "LetterHistory")</text>);
	      items.Add().SpriteCssClasses("fa-duotone fa-thumbs-up").Text("Approvers").Content(@<text>@Html.DisplayFor(m => m.Approvers, "LetterApprovers")</text>);
	      items.Add().SpriteCssClasses("fa-duotone fa-magnifying-glass").Text("Details").Content("");
		  items.Add().SpriteCssClasses("fa-duotone fa-link").Text("Attachments").Content(@<text>@await Component.InvokeAsync(viewName, new { LetterGuid = Model.IdCode.ToString() })</text>);
      })
)

In TagHelper format, content is not shown for any tabs:

<kendo-tabstrip name="tabStrip">
	<popup-animation>
		<open effects="fade:in" />
	</popup-animation>
	<items>
		<tabstrip-item text="History" icon-class="fa-duotone fa-clock-rotate-left" selected="true">
			<content>@Html.DisplayFor(m => m.History, "LetterHistory")</content>
		</tabstrip-item>

		<tabstrip-item text="Approvers" icon-class="fa-duotone fa-thumbs-up">
			<content></content>
		</tabstrip-item>

		<tabstrip-item text="Details" icon-class="fa-duotone fa-magnifying-glass">
			<content>@Html.DisplayFor(m => m.Approvers, "LetterApprovers")</content>
		</tabstrip-item>

		<tabstrip-item text="Attachments" icon-class="fa-duotone fa-link">
			<content>@await Component.InvokeAsync(viewName, new { LetterGuid = Model.IdCode.ToString() })</content>
		</tabstrip-item>
	</items>
</kendo-tabstrip>
How do I display my content from DisplayFor or ViewComponent?
Aleksandar
Telerik team
 answered on 19 Aug 2022
1 answer
369 views

I have the Upload control in an EditorTemplate as follows:

/Views/Letter/EditorTemplates/LetterAttachmentsManage.cshtml:

@using DACRL.Portal.ColorAdmin.Controllers
@using DACRL.Portal.ColorAdmin.Extensions

@model Guid?

@{
    string[] extensions = { ".jpg", ".png", ".pdf", ".ppt", ".pptx", ".doc", ".docx", ".xls", ".xlsx" };
}

@Html.HiddenFor(m => m)

<kendo-upload name="letterFiles" multiple="true">
    <async save-url="@Url.Action(nameof(UploadController.ChunkSave), ControllerExtensions.Nameof<UploadController>())"
           remove-url="@Url.Action(nameof(UploadController.Remove), ControllerExtensions.Nameof<DashboardController>())"
           auto-upload="true"
           chunk-size="11000" />
    <validation allowed-extensions="@extensions" max-file-size="36700160" />
</kendo-upload>

This template is placed within a form on a parent view as

/Views/Letter/Create.cshtml:

@model LetterModel

@using (Html.BeginForm("", "Letter", FormMethod.Post))
{
	@Html.AntiForgeryToken()

	@Html.HiddenFor(m => m.IdCode)

	<div class="panel mt-20px" data-sortable-id="ui-widget-16">
		<div class="panel-heading bg-da-blue text-white">
			<h4 class="panel-title">RL Info</h4>
		</div>
		<div class="panel-body">
			@Html.EditorFor(m => m, "Letter")
		</div>
	</div>

	<div class="panel mt-20px" data-sortable-id="ui-widget-16">
		<div class="panel-heading bg-da-blue text-white">
			<h4 class="panel-title">Attachments</h4>
		</div>
		<div class="panel-body">
			@Html.EditorFor(m => m.IdCode, "LetterAttachmentsManage")
		</div>
	</div>

	<div class="row mt-3">
		<div class="col-md-1">
			<button type="submit" class="btn btn-primary w-100 me-5px" formaction="CreateSave" title="@(Model.IsUpdateCase ? "Update letter" : "Save letter")">@(Model.IsUpdateCase ? "Update" : "Save")</button>
		</div>
		<div class="col-md-1">
			<button type="submit" class="btn btn-default w-100" formaction="CreateSubmit" title="@(Model.IsUpdateCase ? "Update letter & submit" : "Save letter & submit")">Submit</button>
		</div>
	</div>
}

I'm trying to handle the File logic separately so I have the Upload Controller:

public class UploadController : BaseControllerWithAuth<UploadController>
{
    private readonly IWebHostEnvironment hostEnvironment;

    public UploadController(IWebHostEnvironment hostingEnvironment, IHttpContextAccessor httpContextAccess, IUserService userService) : base(httpContextAccess, userService) => hostEnvironment = hostingEnvironment;

    public async Task<ActionResult> ChunkSave([Bind(Prefix = "IdCode.letterFiles")] IEnumerable<IFormFile>? letterFiles, string? metaData, Guid? idCode)
    {
        try
        {
            if (metaData == null)
                return await Save(letterFiles);

            var chunkData = JsonSerializer.Deserialize<ChunkMetaDataModel>(metaData)!;

            if (letterFiles != null)
            {
                foreach (var file in letterFiles) AppendToFile(Path.Combine(hostEnvironment.WebRootPath, Constants.FileUploadPath, chunkData!.FileName), file, idCode?.ToString());
            }

            var fileBlob = new FileResultModel
            {
                uploaded = chunkData!.TotalChunks - 1 <= chunkData.ChunkIndex,
                fileUid  = chunkData.UploadUid
            };

            return Json(fileBlob);
        }
        catch (Exception ex)
        {
            Logger.LogError(ex, $"{nameof(UploadController)} => {nameof(ChunkSave)}: Error: {ex.Message}");
            throw;
        }
    }

    public ActionResult Remove(string[]? fileNames)
    {
        try
        {
            if (fileNames == null) return Content("");

            foreach (var fullName in fileNames)
            {
                var fileName     = Path.GetFileName(fullName);
                var physicalPath = Path.Combine(hostEnvironment.WebRootPath, Constants.FileUploadPath, fileName);

                if (System.IO.File.Exists(physicalPath)) System.IO.File.Delete(physicalPath);
            }

            return Content("");
        }
        catch (Exception ex)
        {
            Logger.LogError(ex, $"{nameof(UploadController)} => {nameof(Remove)}: Error: {ex.Message}");
            throw;
        }
    }

    private void AppendToFile(string fullPath, IFormFile content, string? idCode)
    {
        try
        {
            var basePath = Path.Combine(hostEnvironment.WebRootPath, Constants.FileUploadPath);

            if (!Directory.Exists(basePath)) Directory.CreateDirectory(basePath);

            var letterPath = Path.Combine(basePath, idCode!);

            if (!Directory.Exists(letterPath)) Directory.CreateDirectory(letterPath);

            using var stream = new FileStream(fullPath, FileMode.Append, FileAccess.Write, FileShare.ReadWrite);
            content.CopyTo(stream);
        }
        catch (IOException ex)
        {
            Logger.LogError(ex, $"{nameof(UploadController)} => {nameof(AppendToFile)}: Error: {ex.Message}");
            throw;
        }
        catch (Exception ex)
        {
            Logger.LogError(ex, $"{nameof(UploadController)} => {nameof(AppendToFile)}: Error: {ex.Message}");
            throw;
        }
    }

    private async Task<ActionResult> Save([Bind(Prefix = "IdCode.letterFiles")] IEnumerable<IFormFile>? letterFiles)
    {
        try
        {
            if (letterFiles == null) return Content("");

            foreach (var file in letterFiles)
            {
                var fileContent  = ContentDispositionHeaderValue.Parse(file.ContentDisposition);
                var fileName     = Path.GetFileName(fileContent.FileName!.Trim('"'));
                var physicalPath = Path.Combine(hostEnvironment.WebRootPath, Constants.FileUploadPath, fileName);

                await using var fileStream = new FileStream(physicalPath, FileMode.Create);
                await file.CopyToAsync(fileStream);
            }

            return Content("");
        }
        catch (Exception ex)
        {
            Logger.LogError(ex, $"{nameof(UploadController)} => {nameof(Save)}: Error: {ex.Message}");
            throw;
        }
    }

}

Note: Due to this being an EditorTemplate, I had to add the

[Bind(Prefix = "IdCode.letterFiles")]

Now, once the file is being chunked back to the Controller's ChunkSave action, I need to get the value of the model of this EditorTemplate as it will correlate with the primary entity later.

I have tried adding a parameter to the Controller's ChunkSave action as Guid? idCode. But I always get a null there.

How do I go about this dilemma?



Alexander
Telerik team
 answered on 17 Aug 2022
1 answer
146 views

I'm not using Newtosoft.Json anymore so I tried to deserialize the metadata like this:

var chunkData = JsonSerializer.Deserialize<ChunkMetaDataModel>(metaData)!;

It's not getting de-serialized properly as all strings are null and all integers are 0s.

Please update this documentation page: ASP.NET Core Upload Component Chunk Upload | Telerik UI for ASP.NET Core & this demo: Chunk Upload in ASP.NET Core Upload Component Demo | Telerik UI for ASP.NET Core soon as I'm stuck for now.

I originally got help from StackOverflow from my question: c# - System.Text.Json.* & deserialization of streams - Stack Overflow

Mihaela
Telerik team
 answered on 17 Aug 2022
1 answer
615 views

This question is two-fold, and I can't seem to find the answers in the documentation. For background info, I'm using the latest version of Wizard (the Tag version) :

  1. How do I hide the reset button? I don't need it for my form.
  2. How do I go about making the Wizard's 'Done' button a submit type of a button, so I can send the form contents to the server? (I can't seem to find how to go about this).

TIA!

Alexander
Telerik team
 answered on 17 Aug 2022
1 answer
240 views

Hi All,

This example of a responsive form is not working.    The columns never collapse and stack.  They are aways 2  columns.

https://docs.telerik.com/aspnet-core/html-helpers/layout/form/layout?_ga=2.97006175.1914200844.1660175173-1309681442.1657934528#responsive-form



I have tried many other things also but nothing seems to work.

I am using TagHelpers FYI

Update: I also tried the TagHelpers sample and it does not work either.

Is it possible to get a Respond kendo-form that has 2, 3, or 4 columns in desktop but collapse to 1 column on mobile?

Thanks





Thanks

Aleksandar
Telerik team
 answered on 17 Aug 2022
1 answer
1.3K+ views

I'm using the Grid component (ASP.NET Core Razor Pages).



I would like a column that when clicked will navigate to a specified Page within my application, passing along with it one or more of the column values in my model.

Ideally I'd like to avoid Templates, because it just seems like a lot of string to manage to get an HTML output that I like.

I did come across Commands with a custom Click, but I haven't been able to find documentation yet that shows how I can pass the row details along so I can access specific column values to use in a redirect via JavaScript.

I did get this working with

columns.Template("my anchor tag html goes here with template syntax for #:SomePropValue#")

But it doesn't come across as "clean" as I'd like.

So I'm hoping there's some way to access/pass along a given row's column values in a custom click so I can just use JS for a redirect?

columns.Command(action => {action.Custom("View Application").Click("myJavaScriptFunction")



If there's also a way to do this by using only Html Helpers/Razor syntax, I'm also okay with that! But I couldn't find what I'm looking for with just that either, so I started looking into custom clicks and JS.



Anton Mironov
Telerik team
 answered on 16 Aug 2022
1 answer
96 views

HI

The SelectListItemBuilder's HtmlAttributes property of DropDownList was gone, WHY ???

namespace Kendo.Mvc.UI.Fluent
{
 public class SelectListItemBuilder : IHideObjectMembers
 {

Everyone needs HtmlAttributes property.

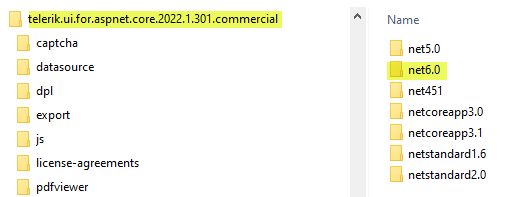

*Kendo.Mvc, Version=2021.3.1207.0。
(telerik.ui.for.aspnet.core\2021.3.1207\lib\net6.0\Kendo.Mvc.dll)

Best regards

Chris





Mihaela
Telerik team
 answered on 16 Aug 2022
1 answer
1.1K+ views

I have a PanelBar control with 3 panels, each holding a Chart control with column items.  I am using the HtmlHelper build the charts.  The PanelBar is in a container that spans 100% of the screen.  By default, the charts in the panels render at about 25% of the width - and that means charts with a lot of categories are seriously compressed and unreadable.

I've tried using the Width option of ChartArea (inside Chart), and while that works, I can't always be sure the double I set this to will be right for all user's browsers.  There is no string option, so Width has to be a number of pixels.

Using HtmlAttributes (adding style) also has no effect.

How can I get the charts to occupy 100% of the container other than just guessing using ChartArea's Width or resorting to JavaScript to redraw the chart after the page is rendered?

Stoyan
Telerik team
 answered on 15 Aug 2022
1 answer
154 views

hi, I have a simple grid set up for data entry in batch mode. The users don't like having to take their fingers off the keyboard and use the mouse to click a button to either start a new entry or save the changes in the current row. Hitting the Enter key doesn't do anything. Is there a keystroke available that would save the changes in the current row without having to click the Save button?

Similarly, is there a keystroke that would start a new record entry?

If not, any ideas for implementing something like this?

many thanks,

Yvette



Momchil
Telerik team
 answered on 15 Aug 2022
