RadGrid sorting problem

[Segev]

Hi,

I have a grid with sorting enabled.
I build the columns in the code-behind.
The grid also have static headers enabled.

When I click a header for sorting, the column is being sorted.
But when I click the arrow to change to the other sorting state, the arrow jumps to the next column.
Every extra click jumps the arrow a column to the right, instead of flipping the arrow in the same column.

I use version 2013.2.717.40.

Please advise.
Thanks,
Guy.

[Segev]

Hi,

Do you have any update?

I tried with custom sorting, but the problem is the same.
I tried this:

protected void RadGrid1_SortCommand(object source, GridSortCommandEventArgs e)
        {
            if (Presenter.COLUMN_DOMAIN_PROJECT.Equals(e.CommandArgument))
            {
                switch (e.OldSortOrder)
                {
                    case GridSortOrder.None:
                        break;
                    case GridSortOrder.Ascending:
                        break;
                    case GridSortOrder.Descending:
                        break;
                }
            }
        }

I'm debugging it.
When clicking on the first column for the first time, it works, and it goes to the correct case in the switch.
In the second click on the first column, e.CommandArgument now contains the DataField of the second column.
Of course the expected behavior is that e.CommandArgument will be the same, and only e.OldSortOrder will be changed.

Please advise.
Thanks,
Guy.

[Princy]

Hi Segev,

I couldn't replicate the issue you are facing. Below is a sample code that i tried with the same version, please try it and see if the issue exists. Please provide your full code snippet if this doesn't help.

ASPX:

<asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>

C#:

RadGrid RadGrid1;
protected void Page_Init(object source, System.EventArgs e)
{
    RadGrid1 = new RadGrid();
    RadGrid1.MasterTableView.DataKeyNames = new string[] { "OrderID" };
    RadGrid1.Skin = "Default";
    RadGrid1.Width = Unit.Percentage(100);
    RadGrid1.PageSize = 15;
    RadGrid1.AllowPaging = true;
    RadGrid1.AutoGenerateColumns = false;
    RadGrid1.AllowSorting = true;
    RadGrid1.ClientSettings.Scrolling.UseStaticHeaders = true;
    RadGrid1.NeedDataSource += new GridNeedDataSourceEventHandler(RadGrid1_NeedDataSource);

    //Add columns
    GridBoundColumn boundColumn;
    boundColumn = new GridBoundColumn();
    RadGrid1.MasterTableView.Columns.Add(boundColumn);
    boundColumn.DataField = "OrderID";
    boundColumn.HeaderText = "OrderID";
    boundColumn.SortExpression = "OrderID";

    boundColumn = new GridBoundColumn();
    RadGrid1.MasterTableView.Columns.Add(boundColumn);
    boundColumn.DataField = "ShipCountry";
    boundColumn.HeaderText = "ShipCountry";
    boundColumn.SortExpression = "ShipCountry";

    boundColumn = new GridBoundColumn();
    RadGrid1.MasterTableView.Columns.Add(boundColumn);
    boundColumn.DataField = "CustomerID";
    boundColumn.HeaderText = "CustomerID";
    boundColumn.SortExpression = "CustomerID";

    this.PlaceHolder1.Controls.Add(RadGrid1);
}

void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    RadGrid1.DataSource = GetDataTable("SELECT  * FROM Orders");
}

Thanks,
Princy

[Segev]

Hi Princy,

I've tried exactly what you've suggested.
In the markup - only a PlaceHolder.
In the code-behind - all the grid's definition, the columns, and the data binding.

I have the same problem.
When sorting the first column by clicking the header, everything is OK.
But when clicking the small sorting arrow, in order to change the sorting state, the sorting "jumps" to the second column.
When clicking the arrow of the second column, it "jumps" to the third column.

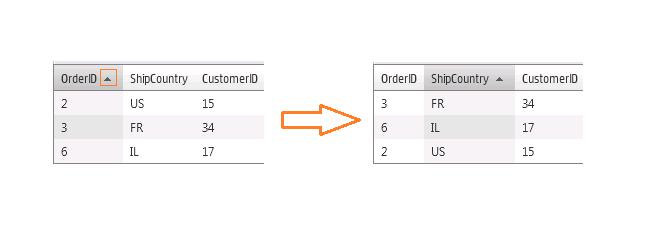

See the attached image.

Thanks,
Guy.

[Eyup]

Hi Guy,

Please note that when generating a grid in the Page_Init event handler, grid columns should be added to the Columns collection of the MasterTableView after their attributes are set:
http://www.telerik.com/help/aspnet-ajax/grid-programmatic-creation.html#Section22

Please make the suggested modification and let me know about the result.

Regards,
Eyup
Telerik

[Mansi]

I'm facing the same problem.
I have a grid with sorting enabled.
I build the columns in the code-behind.

When I click a header for sorting, the column is being sorted.
But when I click the arrow to change to the other sorting state, the arrow jumps to the next column.
Every extra click jumps the arrow a column to the right, instead of flipping the arrow in the same column.

Really Appreciate reply.

[Princy]

Hi Mansi,

This is not an expected behavior. Can you please try the below sample code snippet and check if the issue exist. Provide your full code and version details if you are not able to replicate the issue.

ASPX:

<asp:PlaceHolder ID="phGrid" runat="server"></asp:PlaceHolder>

C#:

RadGrid RadGrid;
protected void Page_Init(object source, System.EventArgs e)
{
    RadGrid = new RadGrid();
    RadGrid.ID = "RadGridSample";
    RadGrid.MasterTableView.DataKeyNames = new string[] { "ID" };
    RadGrid.AutoGenerateColumns = false;
    RadGrid.AllowSorting = true;
    RadGrid.NeedDataSource += new GridNeedDataSourceEventHandler(RadGrid1_NeedDataSource);

    GridBoundColumn boundColumn;
    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "ID";
    boundColumn.HeaderText = "ID";
    boundColumn.SortExpression = "ID";
    RadGrid.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "Name";
    boundColumn.HeaderText = "Name";
    boundColumn.SortExpression = "Name";
    RadGrid.MasterTableView.Columns.Add(boundColumn);

    boundColumn = new GridBoundColumn();
    boundColumn.DataField = "Number";
    boundColumn.HeaderText = "Number";
    boundColumn.SortExpression = "Number";
    RadGrid.MasterTableView.Columns.Add(boundColumn);
    this.phGrid.Controls.Add(RadGrid);
}

void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    dynamic data = new[] {
 new { ID = 1, Name = "Name1", Number=44},
 new { ID = 2, Name = "Name2", Number=0},
 new { ID = 3, Name = "Name3", Number=44},
 new { ID = 4, Name = "Name9", Number=0},
 new { ID = 5, Name = "Name5", Number=0},
 new { ID = 6, Name = "Name6", Number=44},
 new { ID = 7, Name = "Name9", Number=10},
 new { ID = 8, Name = "Name3", Number=10},
 new { ID = 9, Name = "Name9", Number=0}
 };
    RadGrid.DataSource = data;
}

Thanks,
Princy

[Mansi]

Hi Princy,,

I solved the problem by advanced data binding.. http://www.telerik.com/help/aspnet-ajax/grid-advanced-data-binding.html
I was explicitly binding the grid. but Using NeedSource event.. its all solved..

Thanks,
Mansi
