[Solved] GroupByExpressions

[Stuart Hemming]

I'm persisting the GroupBy expressions for a grid. The grouping is set by the end-user.

I have a problem in that I have a column like this...

<telerik:GridTemplateColumn HeaderText="Template"
                                  SortExpression="Name"
                                  ShowSortIcon="true"
                                  Groupable="true"
                                  DataField="Name"
                                  UniqueName="Name">

Now, when I save the GroupBy expression, I save the value returned by the GroupByExpression's .Expression property.

When I try adding that that as a new GroupByExpression when the user revisits the page, the GroupBy header displays "Name" rather than the column's defined HeadterText of "Template".

Now, I did try serializing the whole of the GroupByExpression, but when I tried deserializing it to recreate the object, it complained that Only Field object can be in the Frieds collection, or something like that.

So, to the question. How can I serialize the GroupByExpression so that I can recreate the grouping with a) the correct field and b) the correct header text for the item in the GroupBy area of the grid?

--
Stuart

[Stuart Hemming]

The more I think about this, more more convinced I am that the underlying problem is that there's a bug, so I've raised a support ticket.

--
Stuart

[Pavlina]

Hello, Stuart

i already answered your support ticket with the same question and to avoid duplicate posts I will ask you to continue our communication there. Thank you for your understanding in advance.

All the best,
Pavlina
the Telerik team

[rajat]

Is there a way to set some "PageSize" property according the number of "Groups" in a RadGrid with grouping?

we are using <GroupByExpressions>

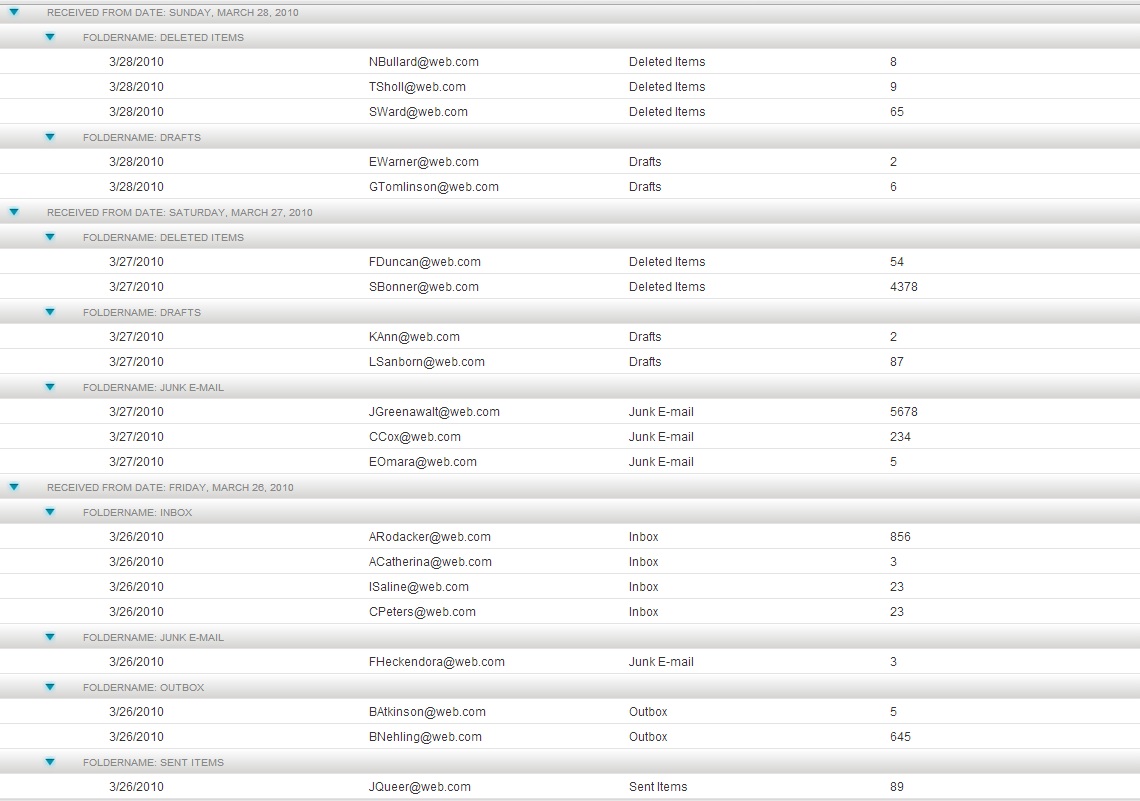

For example : Please check the attachment , in this we have 3 parents and now we set the page size to 2 then we need 2 pages and bottom right corner of the pager should display "Items 1 to 2 of 3"

ASPX:

<telerik:RadGrid ID="RadGrid1"  runat="server"
        AllowSorting="True" AllowMultiRowSelection="true" AllowPaging="true" ShowGroupPanel="false"  HorizontalAlign="Left"
        AutoGenerateColumns="False" GridLines="None">

         <PagerStyle Mode="NextPrevAndNumeric"   PagerTextFormat="Change page: {4} Items {2} to {3} of {5}"
                                                                    AlwaysVisible="true" />
        <MasterTableView AllowMultiColumnSorting="true"  GroupHeaderItemStyle-HorizontalAlign="Left">
        <HeaderStyle CssClass ="rgHeader" />

            <Columns>
                <telerik:GridBoundColumn SortExpression="FieldName" HeaderText="Field Name" ItemStyle-HorizontalAlign="left"
                    HeaderButtonType="TextButton" DataField="FieldName">
                </telerik:GridBoundColumn>
                <telerik:GridBoundColumn SortExpression="From" HeaderText="From" ItemStyle-HorizontalAlign="Left"
                    HeaderButtonType="TextButton" DataField="From">
                </telerik:GridBoundColumn>
                <telerik:GridBoundColumn SortExpression="To" HeaderText="To" ItemStyle-HorizontalAlign="Left"
                    HeaderButtonType="TextButton" DataField="To">
                </telerik:GridBoundColumn>
            </Columns>
             <GroupByExpressions>
                <telerik:GridGroupByExpression>
                    <SelectFields>
                        <telerik:GridGroupByField  HeaderText="Change" FieldName="ParentHeader" HeaderValueSeparator=" Date: "></telerik:GridGroupByField>
                    </SelectFields>
                    <GroupByFields>
                        <telerik:GridGroupByField FieldName="datefind"   SortOrder="Descending"></telerik:GridGroupByField>
                    </GroupByFields>
                </telerik:GridGroupByExpression>

            </GroupByExpressions>
        </MasterTableView>
        <ClientSettings   ReorderColumnsOnClient="false" AllowDragToGroup="false" AllowColumnsReorder="false">
            <Selecting   AllowRowSelect="false"></Selecting>
            <Resizing   AllowRowResize="true"  AllowColumnResize="true" EnableRealTimeResize="false"
                ResizeGridOnColumnResize="false"></Resizing>
        </ClientSettings>
        <GroupingSettings     ShowUnGroupButton="false"  CaseSensitive="false" ></GroupingSettings>
    </telerik:RadGrid>

Please help as this is critical.

[Pavlina]

Hello Rajat,

In general you can set RadGrid PageSize to whatever value you need. However in current page RadGrid will show only page size GridDataItems regardless whether grouping is applied or not. You can check following example Grid Grouping . If you need to set PageSize to the number of the groups you should manually calculate the groups that will be formed.

Regards,
Pavlina
Telerik
