Resize Columns

The TreeList features two different column resizing mechanisms:

• Resize by Dragging
• Fit to Content

The example at the end of this page shows both options in action.

Resize by Dragging

The TreeList allows users to resize columns by dragging the borders between header cells.

To enable column resizing, set the Resizable parameter of the treelist to true.

To prevent the user from resizing a certain column, set its own parameter Resizable="false". The user will still be able to resize other columns around it.

Here a few notes on the resizing behavior:

• If the column Width is less than MinResizableWidth and the user tries to resize the column, it will snap to its minimum width.
• Similarly, if the column Width is greater than MaxResizableWidth, the column will snap to its maximum width.
• In multi-column header scenarios, you may set MinResizableWidth or MaxResizableWidth to child columns only. Setting these attributes to parent columns will have no effect.

Autofit Columns

When column resizing is enabled, a double click on the resize handle between two header cells automatically adjusts the column width to the content of the header, data and footers. Autofitting also removes text wrapping in the column cells.

Similar to regular column resizing, autofitting specific columns preserves the current widths of all the other columns. Column autofitting can trigger a horizontal TreeList scrollbar, or leave empty space after the last column.

The TreeList takes into account the MinResizableWidth and MaxResizableWidth of each auto-fitted column.

The component also exposes methods to programmatically resize columns to fit their contents:

• AutoFitColumnAsync(string id)—Autofits the column with the specified Id attribute.
• AutoFitColumnsAsync(IEnumerable<string> ids)—Autofits multiple columns at once.
• AutoFitAllColumnsAsync()—Autofits all applicable columns. For example, this method does not affect the hierarchy expand/collapse columns.

Programmatic autofitting works even if column resizing is disabled.

Autofitting a large number of columns with a large PageSize can be a resource-intensive operation. For better client-side performance, set fixed optimal widths to all columns with predictable content like numbers and dates, and only autofit the others.

Limitations

The known limitations of the Autofit Columns feature include:

• Autofitting the columns is not supported with Virtual Columns.

• Autofitting the columns on initial load of the TreeList is not supported.

Trying to autofit the columns on initial load will throw a NullReferenceException. Check the AutoFit all Grid columns on initial load knowledge-base article to see a possible solution to achieve this behavior.

Example

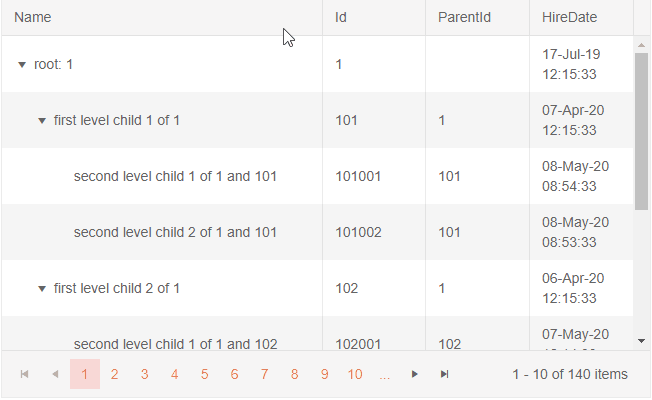

How column resizing works in the Telerik TreeList

TreeList Column Resizing and Autofitting

<TelerikButton OnClick="@AutoFitSingleColumn">AutoFit Name Column</TelerikButton>
<TelerikButton OnClick="@AutoFitMultipleColumns">AutoFit Id and ParentId Columns</TelerikButton>
<TelerikButton OnClick="@AutoFitAllColumns">AutoFit All Columns</TelerikButton>

<TelerikTreeList @ref="@TreeList" Data="@TreeListData" Resizable="true"
                 Pageable="true" IdField="Id" ParentIdField="ParentId" Height="400px">
    <TreeListColumns>
        <TreeListColumn Field="Name" Expandable="true" Width="320px" Id="NameColumn" />
        <TreeListColumn Field="Id" Resizable="false" Id="IdColumn" />
        <TreeListColumn Field="ParentId" Id="ParentIdColumn" />
        <TreeListColumn Field="HireDate" />
    </TreeListColumns>
</TelerikTreeList>

@code {
    private TelerikTreeList<Employee>? TreeList { get; set; }
    private List<Employee> TreeListData { get; set; } = new();

    private async Task AutoFitSingleColumn()
    {
        await TreeList!.AutoFitColumnAsync("NameColumn");
    }

    private async Task AutoFitMultipleColumns()
    {
        var columns = new List<string>() { "IdColumn", "ParentIdColumn" };
        await TreeList!.AutoFitColumnsAsync(columns);
    }

    private async Task AutoFitAllColumns()
    {
        await TreeList!.AutoFitAllColumnsAsync();
    }

    protected override void OnInitialized()
    {
        for (int i = 1; i < 15; i++)
        {
            TreeListData.Add(new Employee
            {
                Id = i,
                ParentId = null,
                Name = $"root: {i}",
                HireDate = DateTime.Now.AddYears(-i)
            }); ;

            for (int j = 1; j < 4; j++)
            {
                int currId = i * 100 + j;
                TreeListData.Add(new Employee
                {
                    Id = currId,
                    ParentId = i,
                    Name = $"first level child {j} of {i}",
                    HireDate = DateTime.Now.AddDays(-currId)
                });

                for (int k = 1; k < 3; k++)
                {
                    int nestedId = currId * 1000 + k;
                    TreeListData.Add(new Employee
                    {
                        Id = nestedId,
                        ParentId = currId,
                        Name = $"second level child {k} of {i} and {currId}",
                        HireDate = DateTime.Now.AddMinutes(-nestedId)
                    }); ;
                }
            }
        }
    }

    public class Employee
    {
        public int Id { get; set; }
        public int? ParentId { get; set; }
        public string Name { get; set; } = string.Empty;
        public DateTime HireDate { get; set; }
    }
}
