Palettes

The RadSyntaxEditor comes with 4 different palettes which you can choose from - Light, Dark, Neutral and Neutral Dark. They are responsible for applying different colors to the syntax-related words of the control.

Palette List

Here is a list of all the colors in the palettes and their default values for each palette.

Property	Light	Dark	Neutral	Neutral Dark
KeywordColor
PreprocessorKeywordColor
CommentColor
IdentifierColor
OperatorColor
StringColor
XmlAttributeColor
XmlElementColor
XmlCommentColor
XmlContentColor
XmlStringColor
XmlCharacterDataColor
XmlTagColor

Palette Recommendations

The table below lists the recommended palettes for each of the available themes in the UI for WPF suite. If you're using any of the theme-variation combinations marked with an asterisk (*), you need to explicitly set the RadSyntaxEditor's Palette as they will not be updated when the theme variation is changed.

Theme	Palette
Office2019 Dark *	Dark
Office2019 Gray	Light
Office2019 Light	Light
VisualStudio2019	Light
Crystal Light	Light
Crystal Dark *	Dark
Fluent Light	Light
Fluent Dark *	Dark
Material	Light
Office2016(Touch)	Light
Green Dark	Neutral Dark
Green Light *	Neutral
VisualStidio2013	Light
VisualStidio2013 Blue	Light
VisualStidio2013 Dark *	Dark
Office2013	Light
Office2013 LightGray	Light
Office2013 DarkGray	Light
Windows8(Touch)	Light
Expression_Dark	Neutral Dark
Windows7	Light
Transparent	Neutral
Vista	Light
Summer	Light
Office_Black	Light
Office_Silver	Light
Office_Blue	Light

Example 1: Change the palette when using a specific theme

C#


    switch (theme)
    {
       case "Crystal_Dark":
			this.syntaxEditor.Palette = SyntaxPalettes.Dark;
			break;
		case "Fluent_Dark":
			this.syntaxEditor.Palette = SyntaxPalettes.Dark;
			break;
		case "Green_Light":
			this.syntaxEditor.Palette = SyntaxPalettes.Neutral;
			break;
		case "Green_Dark":
			this.syntaxEditor.Palette = SyntaxPalettes.NeutralDark;
			break;
		case "VisualStudio2013_Dark":
			this.syntaxEditor.Palette = SyntaxPalettes.Dark;
			break;
		case "Expression_Dark":
			this.syntaxEditor.Palette = SyntaxPalettes.NeutralDark;
			break;
		case "Transparent":
			this.syntaxEditor.Palette = SyntaxPalettes.Neutral;
			break;
		default:
			this.syntaxEditor.Palette = SyntaxPalettes.Light;
			break;
    }

Custom Palettes

If you want to customize the colors shown in your RadSyntaxEditor control, you can do so by either modifying one of the default palettes or by creating a new instance of the SyntaxEditorPalette class and setting all of its colors.

It is not possible to edit the colors of the default palettes during runtime.

Modify a Default Palette

Example 2: Modifying a default palette in XAML

XAML


    <Grid xmlns:palettes="clr-namespace:Telerik.Windows.Controls.SyntaxEditor.Palettes;assembly=Telerik.Windows.Controls.SyntaxEditor">
        <Grid.Resources>
            <palettes:LightPalette x:Key="ModifiedLightPalette" KeywordColor="Green" CommentColor="Red" />
        </Grid.Resources>
        <telerik:RadSyntaxEditor x:Name="syntaxEditor" Palette="{StaticResource ModifiedLightPalette}"/>
    </Grid>

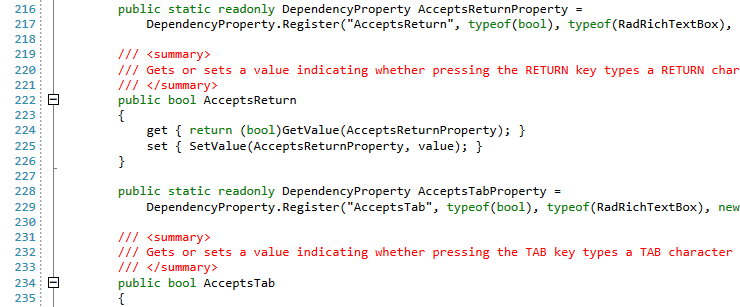

Figure 2: RadSyntaxEditor with a modified Light palette

Create a Custom Palette

Example 3: Creating a custom SyntaxEditorPalette in code-behind

C#


    var customPalette = new SyntaxEditorPalette();
    customPalette.KeywordColor = (Color)ColorConverter.ConvertFromString("#3232eb");
    customPalette.PreprocessorKeywordColor = (Color)ColorConverter.ConvertFromString("#848484");
    customPalette.CommentColor = (Color)ColorConverter.ConvertFromString("#006633");
    customPalette.IdentifierColor = (Color)ColorConverter.ConvertFromString("#000000");
    customPalette.OperatorColor = (Color)ColorConverter.ConvertFromString("#323232");
    customPalette.XmlAttributeColor = (Color)ColorConverter.ConvertFromString("#cc2828");
    customPalette.XmlElementColor = (Color)ColorConverter.ConvertFromString("#824910");
    customPalette.XmlCommentColor = (Color)ColorConverter.ConvertFromString("#007b00");
    customPalette.XmlContentColor = (Color)ColorConverter.ConvertFromString("#474747");
    customPalette.XmlStringColor = (Color)ColorConverter.ConvertFromString("#0066cc");
    customPalette.XmlCharacterDataColor = (Color)ColorConverter.ConvertFromString("#0066cc");
    customPalette.XmlTagColor = (Color)ColorConverter.ConvertFromString("#7070ff");
    this.syntaxEditor.Palette = customPalette;

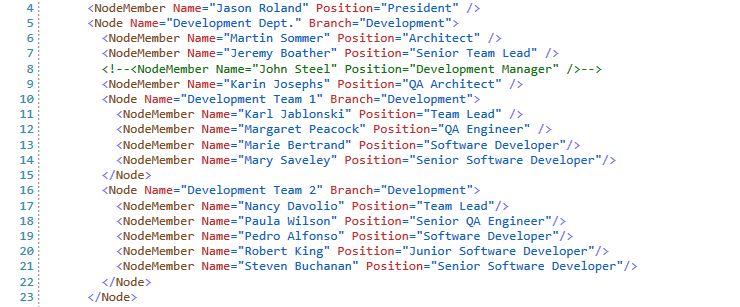

Figure 2: RadSyntaxEditor with a custom palette
