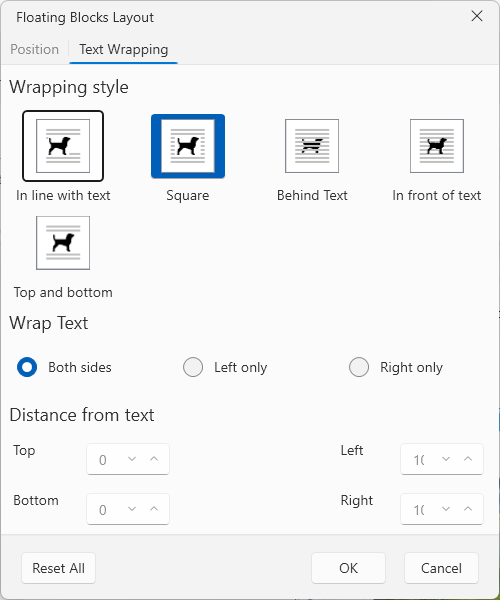

Floating Blocks Layout Properties Dialog

This dialog allows you to update the properties of floating blocks, like floating images.

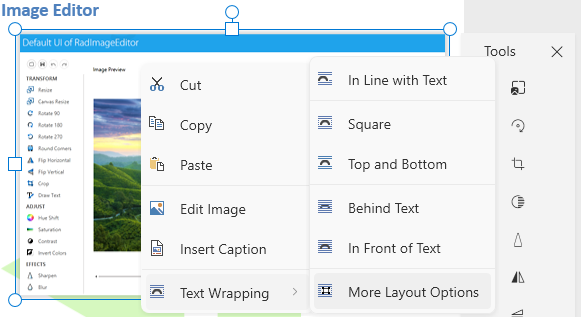

The dialog can be opened from the More Layout Options button in the right-click menu (context menu) of RadRichTextBox.

Showing the Dialog Manually

The dialog can be shown by executing the ShowFloatingBlockPropertiesDialogCommand. See how to bind the command to an external button in the Commands article.

Executing the show dialog command

C#

	this.richTextBox.Commands.ShowFloatingBlockPropertiesDialogCommand.Execute(null);

Alternatively, call the ShowFloatingBlockPropertiesDialog method of RadRichTextBox.

Using the show dialog method

C#

	this.richTextBox.ShowFloatingBlockPropertiesDialog();
