WinForms Sparkline Overview

Updated over 6 months ago

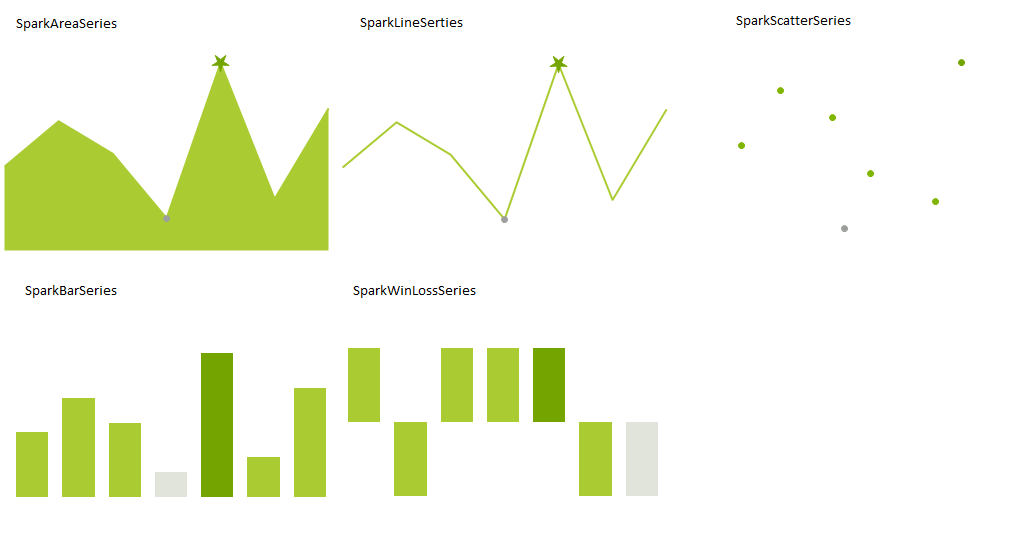

Figure 1: Supported Series

The currently supported series are:

• SparkAreaSeries
• SparkBarSeries
• SparkLineSeries
• SparkScatterSeries
• SparkWinLossSeries

The SparkAreaSeries, SparkBarSeries, and SparkWinLossSeries expose the BaselineValue property defining a value on the vertical axis determining how the view will be divided into top and bottom halves. By default 0 is considered as the base line. The property is extremely useful in the SparkWinLoss series where one can define a threshold different than 0 to indicate wins and losses.

Common properties

All series inherit the SparkSeries class. The following table shows the properties that are shared between all series types.

Property	Description
DataPoints	Gets the data points collection.
DataSource	Gets or sets the data source of the SparkSeries.
DataMember	Gets or sets the name of the list or table in the data source for which the SparkSeries is displaying data.
DisplayMember	Gets or sets the display member.
Name	Gets or sets the name.
HighValue	Gets the high value data point.
LowValue	Gets the low value data point.
ShowMarkers	Gets or sets whether the points markers will be painted.
MarkerBorderColor	Gets or sets the border color of the points of the series.
MarkerBorderWidth	Gets or sets the border width of the points of the series.
MarkerBackColor	Gets or sets the back color of the points of the series.
ShowHighPointIndicator	Gets or sets whether the high point marker will be painted.
HighPointBorderColor	Gets or sets the border color of the high point of the series.
HighPointBorderWidth	Gets or sets the border width of the high point of the series.
ShowLowPointIndicator	Gets or sets whether the low point indicator will be painted.
LowPointBorderColor	Gets or sets the border color of the low point of the series.
LowPointBorderWidth	Gets or sets the border width of the low point of the series.
LowPointBackColor	Gets or sets the back color of the low point of the series.
ShowFirstPointIndicator	Gets or sets whether the first point indicator will be painted.
FirstPointBorderColor	Gets or sets the border color of the first point of the series.
FirstPointBorderWidth	Gets or sets the border width of the first point of the series.
FirstPointBackColor	Gets or sets the back color of the first point of the series.
ShowLastPointIndicator	Gets or sets whether the last point marker will be painted.
LastPointBorderColor	Gets or sets the border color of the last point of the series.
LastPointBorderWidth	Gets or sets the border width of the last point of the series.
ShowNegativePointIndicators	Gets or sets whether the negative point markers will be painted.
NegativePointBorderColor	Gets or sets the border color of the negative points of the series.
NegativePointBorderWidth	Gets or sets the border width of the last point of the series.
NegativePointBackColor	Gets or sets the back color of the negative points of the series.
