ToolTips

Updated over 6 months ago

There are two ways to assign tooltips to cells in RadGridView, namely setting the ToolTipText property of a CellElement in the CellFormatting event handler, or as in most of the RadControls by using the ToolTipTextNeeded event.

Setting tooltips in the CellFormatting event handler

The code snippet below demonstrates how you can assign a tooltip to a data cell.

C#

void radGridView1_CellFormatting(object sender, Telerik.WinControls.UI.CellFormattingEventArgs e)
{
    if (e.Row is GridViewDataRowInfo)
    {
        e.CellElement.ToolTipText = "Tooltip: " + e.CellElement.Text;
    }
}

VB.NET

Private Sub RadGridView1_CellFormatting(ByVal sender As Object, ByVal e As Telerik.WinControls.UI.CellFormattingEventArgs) Handles RadGridView1.CellFormatting
    If TypeOf e.Row Is GridViewDataRowInfo Then
        e.CellElement.ToolTipText = "Tooltip: " & e.CellElement.Text
    End If
End Sub

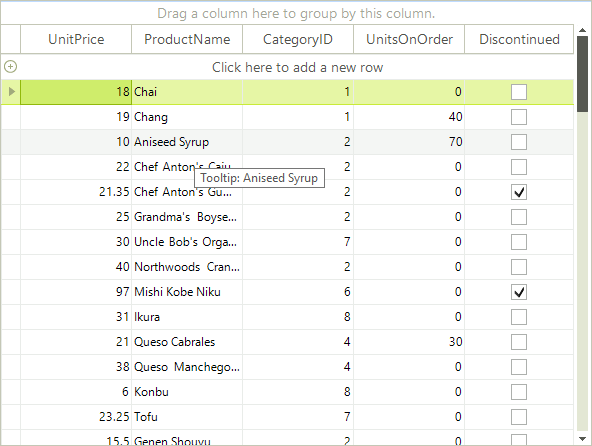

Figure 1: Using the formatting event to set the tooltips.

Setting tooltips in the ToolTipTextNeeded event

The code snippet below demonstrates how you can use ToolTipTextNeeded event handler to set ToolTipText for the given CellElement.

C#

private void radGridView1_ToolTipTextNeeded(object sender, Telerik.WinControls.ToolTipTextNeededEventArgs e)
{
    GridDataCellElement cell = sender as GridDataCellElement;
    if (cell != null && cell.ColumnInfo.Name == "Name")
    {
        e.ToolTipText = cell.Value.ToString();
    }
}

VB.NET

Private Sub RadGridView1_ToolTipTextNeeded(sender As Object, e As Telerik.WinControls.ToolTipTextNeededEventArgs) Handles RadGridView1.ToolTipTextNeeded
    Dim cell As GridDataCellElement = TryCast(sender, GridDataCellElement)
    If cell IsNot Nothing AndAlso cell.ColumnInfo.Name = "Name" Then
        e.ToolTipText = cell.Value.ToString()
    End If
End Sub

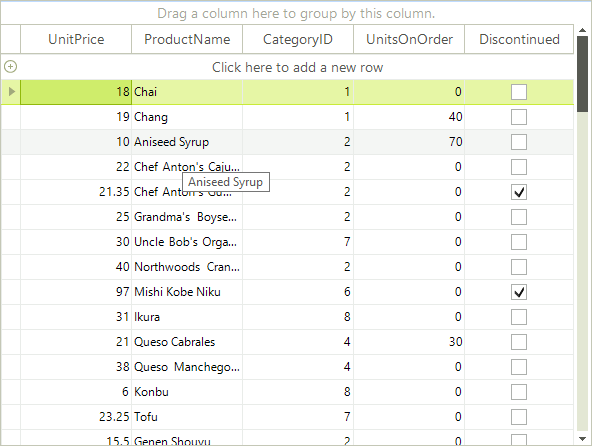

Figure 2: Using the ToolTipTextNeeded event.

The ToolTipTextNeeded event has higher priority and overrides the tooltips set in CellFormatting event handler.
