Drag and Drop from Another Control

Updated over 6 months ago

This article will demonstrate how you can create shapes in RadDiagram after dragging an object from a separate control, in our case RadGridView.

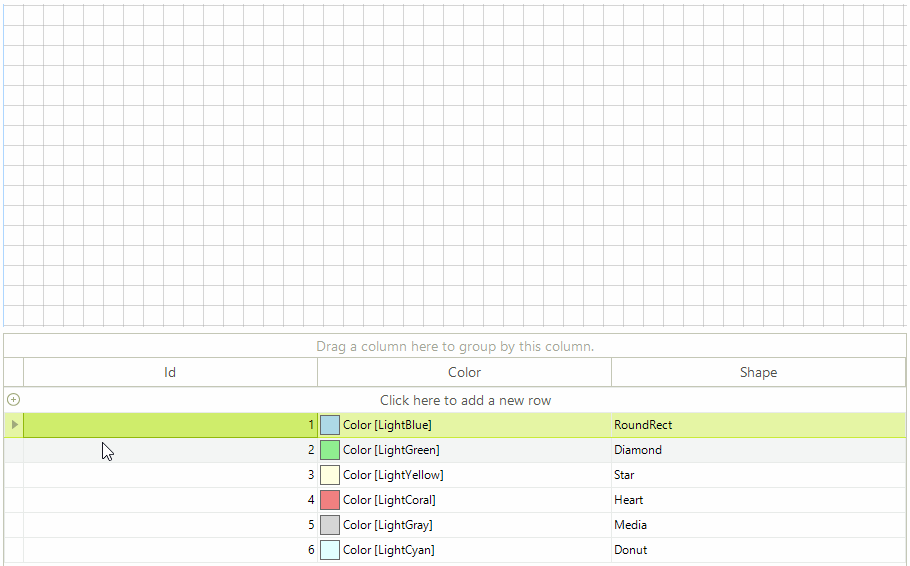

Figure 1: Grid to Diagram Drag and Drop

Preparing RadGridView for Drag and Drop

The drag and drop behavior in RadGridView is controlled by a service class. We are going to start this service when performing a mouse down operation on a certain row in the grid. In order to execute our custom logic we also need a custom row behavior class responsible for handling the user actions. We can change the default row behavior and subscribe to the service events in the form`s constuctor.

Setup RadGridView

C#

public DiagramDragAndDropGrid()
{
    InitializeComponent();
    BaseGridBehavior gridBehavior = this.radGridView1.GridBehavior as BaseGridBehavior;
    gridBehavior.UnregisterBehavior(typeof(GridViewDataRowInfo));
    gridBehavior.RegisterBehavior(typeof(GridViewDataRowInfo), new CustomRowGridBehavior());
    this.radGridView1.DataSource = this.GetData();
    this.radGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;
    RadGridViewDragDropService svc = this.radGridView1.GridViewElement.GetService<RadGridViewDragDropService>();
    svc.PreviewDragDrop += svc_PreviewDragDrop;
    svc.PreviewDragOver += svc_PreviewDragOver;
    svc.PreviewDragStart += svc_PreviewDragStart;
}
private BindingList<GridModel> GetData()
{
    Color[] colors = new Color[] { Color.LightBlue, Color.LightGreen, Color.LightYellow, Color.LightCoral, Color.LightGray, Color.LightCyan };
    string[] shapes = new string[] { "RoundRect", "Diamond", "Star", "Heart", "Media", "Donut" };
    BindingList<GridModel> data = new BindingList<GridModel>();
    for (int i = 0; i < shapes.Length; i++)
    {
        data.Add(new GridModel
        {
            Id = i + 1,
            Color = colors[i],
            Shape = shapes[i]
        });
    }
    return data;
}

VB.NET

Sub New()
    InitializeComponent()
    Dim gridBehavior As BaseGridBehavior = TryCast(Me.RadGridView1.GridBehavior, BaseGridBehavior)
    gridBehavior.UnregisterBehavior(GetType(GridViewDataRowInfo))
    gridBehavior.RegisterBehavior(GetType(GridViewDataRowInfo), New CustomRowGridBehavior())
    Me.RadGridView1.DataSource = Me.GetData()
    Me.RadGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill
    Dim svc As RadGridViewDragDropService = Me.RadGridView1.GridViewElement.GetService(Of RadGridViewDragDropService)()
    AddHandler svc.PreviewDragDrop, AddressOf svc_PreviewDragDrop
    AddHandler svc.PreviewDragOver, AddressOf svc_PreviewDragOver
    AddHandler svc.PreviewDragStart, AddressOf svc_PreviewDragStart
End Sub
Private Function GetData() As BindingList(Of GridModel)
    Dim colors As Color() = New Color() {Color.LightBlue, Color.LightGreen, Color.LightYellow, Color.LightCoral, Color.LightGray, Color.LightCyan}
    Dim shapes As String() = New String() {"RoundRect", "Diamond", "Star", "Heart", "Media", "Donut"}
    Dim data As New BindingList(Of GridModel)()
    For i As Integer = 0 To shapes.Length - 1
        data.Add(New GridModel() With {
             .Id = i + 1,
             .Color = colors(i),
             .Shape = shapes(i)
        })
    Next
    Return data
End Function

For the purpose of the example we will define a grid model object storing information about the shapes.

Grid Helpers

C#

public class GridModel
{
    public int Id { get; set; }
    public Color Color { get; set; }
    public string Shape { get; set; }
}
public class CustomRowGridBehavior : GridDataRowBehavior
{
    protected override bool OnMouseDownLeft(MouseEventArgs e)
    {
        GridDataRowElement row = this.GetRowAtPoint(e.Location) as GridDataRowElement;
        if (row != null)
        {
            RadGridViewDragDropService svc = this.GridViewElement.GetService<RadGridViewDragDropService>();
            svc.Start(row);
        }
        return base.OnMouseDownLeft(e);
    }
}

VB.NET

Public Class GridModel
    Public Property Id() As Integer
        Get
            Return m_Id
        End Get
        Set(value As Integer)
            m_Id = value
        End Set
    End Property
    Private m_Id As Integer
    Public Property Color() As Color
        Get
            Return m_Color
        End Get
        Set(value As Color)
            m_Color = value
        End Set
    End Property
    Private m_Color As Color
    Public Property Shape() As String
        Get
            Return m_Shape
        End Get
        Set(value As String)
            m_Shape = value
        End Set
    End Property
    Private m_Shape As String
End Class
Public Class CustomRowGridBehavior
    Inherits GridDataRowBehavior
    Protected Overrides Function OnMouseDownLeft(e As MouseEventArgs) As Boolean
        Dim row As GridDataRowElement = TryCast(Me.GetRowAtPoint(e.Location), GridDataRowElement)
        If row IsNot Nothing Then
            Dim svc As RadGridViewDragDropService = Me.GridViewElement.GetService(Of RadGridViewDragDropService)()
            svc.Start(row)
        End If
        Return MyBase.OnMouseDownLeft(e)
    End Function
End Class

Handling Events

RadDiagram will accept the dragged data only if it is dropped on the diagram element. The PreviewDragDrop event handler will be responsible for reading the data and transforming it to a shape.

Drag and Drop Events

C#

private void svc_PreviewDragStart(object sender, PreviewDragStartEventArgs e)
{
    e.CanStart = true;
}
private void svc_PreviewDragOver(object sender, RadDragOverEventArgs e)
{
    if (e.DragInstance is GridDataRowElement)
    {
        e.CanDrop = e.HitTarget is RadDiagramElement;
    }
}
private void svc_PreviewDragDrop(object sender, RadDropEventArgs e)
{
    RadDiagramElement targetElement = e.HitTarget as RadDiagramElement;
    GridDataRowElement draggedRow = e.DragInstance as GridDataRowElement;
    if (draggedRow == null)
    {
        return;
    }
    GridModel data = (GridModel)draggedRow.Data.DataBoundItem;
    RadDiagramShape shape = new RadDiagramShape()
    {
        Text = data.Shape,
        ElementShape = this.GetShapeFromModel(data),
        BackColor = data.Color
    };
    shape.Position = e.DropLocation;
    this.radDiagram1.AddShape(shape);
}
private ElementShape GetShapeFromModel(GridModel data)
{
    ElementShape shape = null;
    switch (data.Shape)
    {
        case "RoundRect":
            shape = new RoundRectShape();
            break;
        case "Diamond":
            shape = new DiamondShape();
            break;
        case "Star":
            shape = new StarShape();
            break;
        case "Heart":
            shape = new HeartShape();
            break;
        case "Media":
            shape = new MediaShape();
            break;
        case "Donut":
            shape = new DonutShape();
            break;
        default:
            shape = new CustomShape();
            break;
    }
    return shape;
}

VB.NET

Private Sub svc_PreviewDragStart(sender As Object, e As PreviewDragStartEventArgs)
    e.CanStart = True
End Sub
Private Sub svc_PreviewDragOver(sender As Object, e As RadDragOverEventArgs)
    If TypeOf e.DragInstance Is GridDataRowElement Then
        e.CanDrop = TypeOf e.HitTarget Is RadDiagramElement
    End If
End Sub
Private Sub svc_PreviewDragDrop(sender As Object, e As RadDropEventArgs)
    Dim targetElement As RadDiagramElement = TryCast(e.HitTarget, RadDiagramElement)
    Dim draggedRow As GridDataRowElement = TryCast(e.DragInstance, GridDataRowElement)
    If draggedRow Is Nothing Then
        Return
    End If
    Dim data As GridModel = DirectCast(draggedRow.Data.DataBoundItem, GridModel)
    Dim shape As New RadDiagramShape() With {
         .Text = data.Shape,
         .ElementShape = Me.GetShapeFromModel(data),
         .BackColor = data.Color
    }
    shape.Position = e.DropLocation
    Me.RadDiagram1.AddShape(shape)
End Sub
Private Function GetShapeFromModel(data As GridModel) As ElementShape
    Dim shape As ElementShape = Nothing
    Select Case data.Shape
        Case "RoundRect"
            shape = New RoundRectShape()
            Exit Select
        Case "Diamond"
            shape = New DiamondShape()
            Exit Select
        Case "Star"
            shape = New StarShape()
            Exit Select
        Case "Heart"
            shape = New HeartShape()
            Exit Select
        Case "Media"
            shape = New MediaShape()
            Exit Select
        Case "Donut"
            shape = New DonutShape()
            Exit Select
        Case Else
            shape = New CustomShape()
            Exit Select
    End Select
    Return shape
End Function

'endregion
Class
gion HelperClasses
ic Class GridModel
Public Property Id() As Integer
    Get
        Return m_Id
    End Get
    Set(value As Integer)
        m_Id = value
    End Set
End Property
Private m_Id As Integer
Public Property Color() As Color
    Get
        Return m_Color
    End Get
    Set(value As Color)
        m_Color = value
    End Set
End Property
Private m_Color As Color
Public Property Shape() As String
    Get
        Return m_Shape
    End Get
    Set(value As String)
        m_Shape = value
    End Set
End Property
Private m_Shape As String
Class
ic Class CustomRowGridBehavior
Inherits GridDataRowBehavior
Protected Overrides Function OnMouseDownLeft(e As MouseEventArgs) As Boolean
    Dim row As GridDataRowElement = TryCast(Me.GetRowAtPoint(e.Location), GridDataRowElement)
    If row IsNot Nothing Then
        Dim svc As RadGridViewDragDropService = Me.GridViewElement.GetService(Of RadGridViewDragDropService)()
        svc.Start(row)
    End If
    Return MyBase.OnMouseDownLeft(e)
End Function
Class
