Structure

Updated over 6 months ago

This article will show the internal elements structure of RadBreadCrumb.

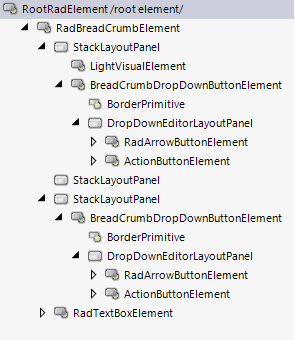

Figure 1: RadBreadCrumb's elements hierarchy

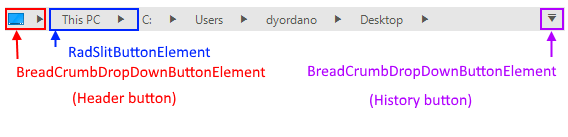

Figure 2: RadBreadCrumb's structure

RadBreadCrumb has one main element: RadBreadCrumbElement. It hosts three element containers and a text box:

• LeftElementsStack - StackLayoutPanel that hosts the image element and the Header drop down button.

• MainStack - StackLayoutPanel hosts a collection of RadSplitButtonElements that represent the path to the selected RadTreeNode.

• RightElementsStack - StackLayoutPanel that hosts the history button.

• TextBoxElement - RadTextBoxElement that will be used in edit mode.
