Getting Started with WinForms BreadCrumb

Updated over 6 months ago

This tutorial will walk you through the creation of RadBreadCrumb in your project and associating it with RadTreeView. Follow the steps:

Adding Telerik Assemblies Using NuGet

To use RadBreadCrumb when working with NuGet packages, install the Telerik.UI.for.WinForms.AllControls package. The package target framework version may vary.

Read more about NuGet installation in the Install using NuGet Packages article.

With the 2025 Q1 release, the Telerik UI for WinForms has a new licensing mechanism. You can learn more about it here.

Adding Assembly References Manually

When dragging and dropping a control from the Visual Studio (VS) Toolbox onto the Form Designer, VS automatically adds the necessary assemblies. However, if you're adding the control programmatically, you'll need to manually reference the following assemblies:

• Telerik.Licensing.Runtime
• Telerik.WinControls
• Telerik.WinControls.UI
• TelerikCommon

The Telerik UI for WinForms assemblies can be install by using one of the available installation approaches.

Defining the RadBreadCrumb

1. Add a RadBreadCrumb and a RadTreeView to the form.

2. Data bind the RadTreeView control.

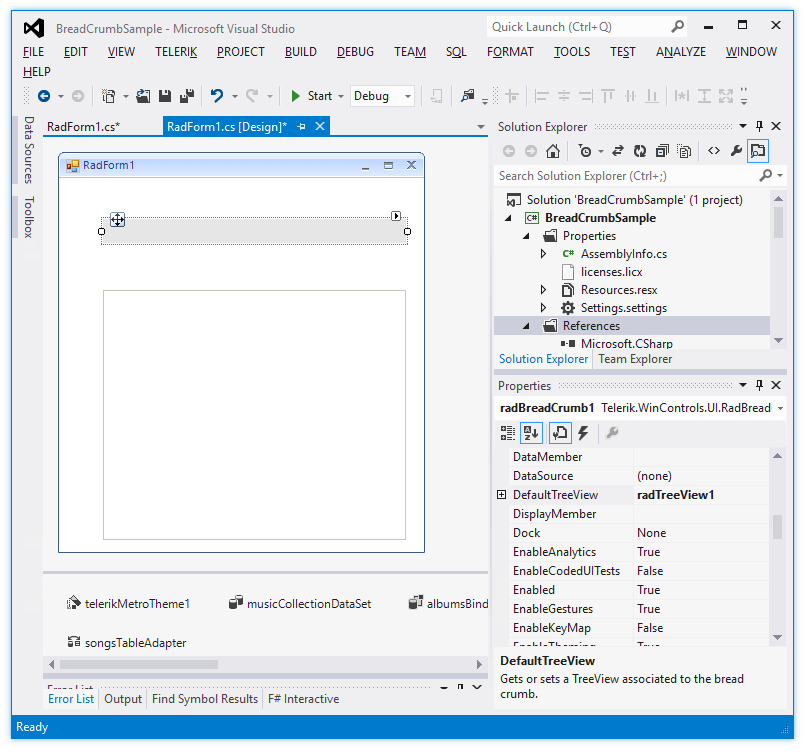

3. Set the RadBreadCrumb.DefaultTreeView property to the tree view control on the form.



When you run the project and select a node in RadTreeView, the RadBreadCrumb control will be populated with the path to the selected node:

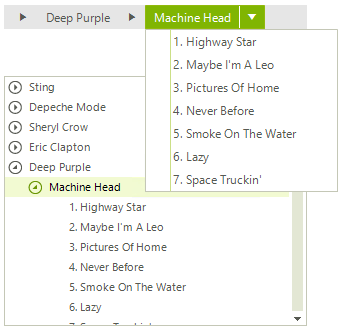

RadBreadCrumb associated with a RadTreeView

Using RadBreadCrumb as a standalone control

Similar to RadTreeView, RadBreadCrumb can also be bound to a collection of records. It is just necessary to set its DataSource, DisplayMember, ChildMember and ParentMember properties. In addition, enable the IsAutoCompleteEnabled property in order to get suggestions when the user types in the text box:

C#

        public RadForm1()
        {
            InitializeComponent();

            this.radBreadCrumb1.DisplayMember = "name";
            this.radBreadCrumb1.ParentMember = "pid";
            this.radBreadCrumb1.ChildMember = "id";
            this.radBreadCrumb1.DataSource = this.GetSampleData();

            this.radBreadCrumb1.IsAutoCompleteEnabled = true;
        }

        private DataTable GetSampleData()
        {
            DataTable dt = new DataTable();

            DataColumn dc = new DataColumn();
            dc.ColumnName = "id";
            dc.DataType = typeof(int);
            dt.Columns.Add(dc);

            DataColumn dc1 = new DataColumn();
            dc1.ColumnName = "name";
            dc1.DataType = typeof(string);
            dt.Columns.Add(dc1);

            DataColumn dc2 = new DataColumn();
            dc2.ColumnName = "pid";
            dc2.DataType = typeof(int);
            dt.Columns.Add(dc2);

            DataRow dr = dt.NewRow();
            dr[0] = 0;
            dr[1] = "My Computer";
            dr[2] = DBNull.Value;
            dt.Rows.Add(dr);

            dr = dt.NewRow();
            dr[0] = 1;
            dr[1] = @"C:";
            dr[2] = 0;
            dt.Rows.Add(dr);

            dr = dt.NewRow();
            dr[0] = 2;
            dr[1] = @"D:";
            dr[2] = 0;
            dt.Rows.Add(dr);

            dr = dt.NewRow();
            dr[0] = 3;
            dr[1] = "Program Files";
            dr[2] = 1;
            dt.Rows.Add(dr);

            dr = dt.NewRow();
            dr[0] = 4;
            dr[1] = "Microsoft";
            dr[2] = 3;
            dt.Rows.Add(dr);

            dr = dt.NewRow();
            dr[0] = 5;
            dr[1] = "Telerik";
            dr[2] = 3;
            dt.Rows.Add(dr);

            dr = dt.NewRow();
            dr[0] = 6;
            dr[1] = "WINDOWS";
            dr[2] = 1;
            dt.Rows.Add(dr);

            return dt;
        }

VB.NET

    Public Sub New()
        InitializeComponent()
        Me.radBreadCrumb1.DisplayMember = "name"
        Me.radBreadCrumb1.ParentMember = "pid"
        Me.radBreadCrumb1.ChildMember = "id"
        Me.radBreadCrumb1.DataSource = Me.GetSampleData()
        Me.radBreadCrumb1.IsAutoCompleteEnabled = True
    End Sub

    Private Function GetSampleData() As DataTable
        Dim dt As DataTable = New DataTable()
        Dim dc As DataColumn = New DataColumn()
        dc.ColumnName = "id"
        dc.DataType = GetType(Integer)
        dt.Columns.Add(dc)
        Dim dc1 As DataColumn = New DataColumn()
        dc1.ColumnName = "name"
        dc1.DataType = GetType(String)
        dt.Columns.Add(dc1)
        Dim dc2 As DataColumn = New DataColumn()
        dc2.ColumnName = "pid"
        dc2.DataType = GetType(Integer)
        dt.Columns.Add(dc2)
        Dim dr As DataRow = dt.NewRow()
        dr(0) = 0
        dr(1) = "My Computer"
        dr(2) = DBNull.Value
        dt.Rows.Add(dr)
        dr = dt.NewRow()
        dr(0) = 1
        dr(1) = "C:"
        dr(2) = 0
        dt.Rows.Add(dr)
        dr = dt.NewRow()
        dr(0) = 2
        dr(1) = "D:"
        dr(2) = 0
        dt.Rows.Add(dr)
        dr = dt.NewRow()
        dr(0) = 3
        dr(1) = "Program Files"
        dr(2) = 1
        dt.Rows.Add(dr)
        dr = dt.NewRow()
        dr(0) = 4
        dr(1) = "Microsoft"
        dr(2) = 3
        dt.Rows.Add(dr)
        dr = dt.NewRow()
        dr(0) = 5
        dr(1) = "Telerik"
        dr(2) = 3
        dt.Rows.Add(dr)
        dr = dt.NewRow()
        dr(0) = 6
        dr(1) = "WINDOWS"
        dr(2) = 1
        dt.Rows.Add(dr)
        Return dt
    End Function

RadBreadCrumb used as a standalone control

Please avoid using the character set as a PathSeparator in the Header of the items, because this can lead to an unexpected behavior when you try to expand a path. Also, keep in mind that the '\' character is the default PathSeparator.
