Integration with Telerik Reporting

Environment

Product

Telerik WebForms Grid for ASP.NET AJAX

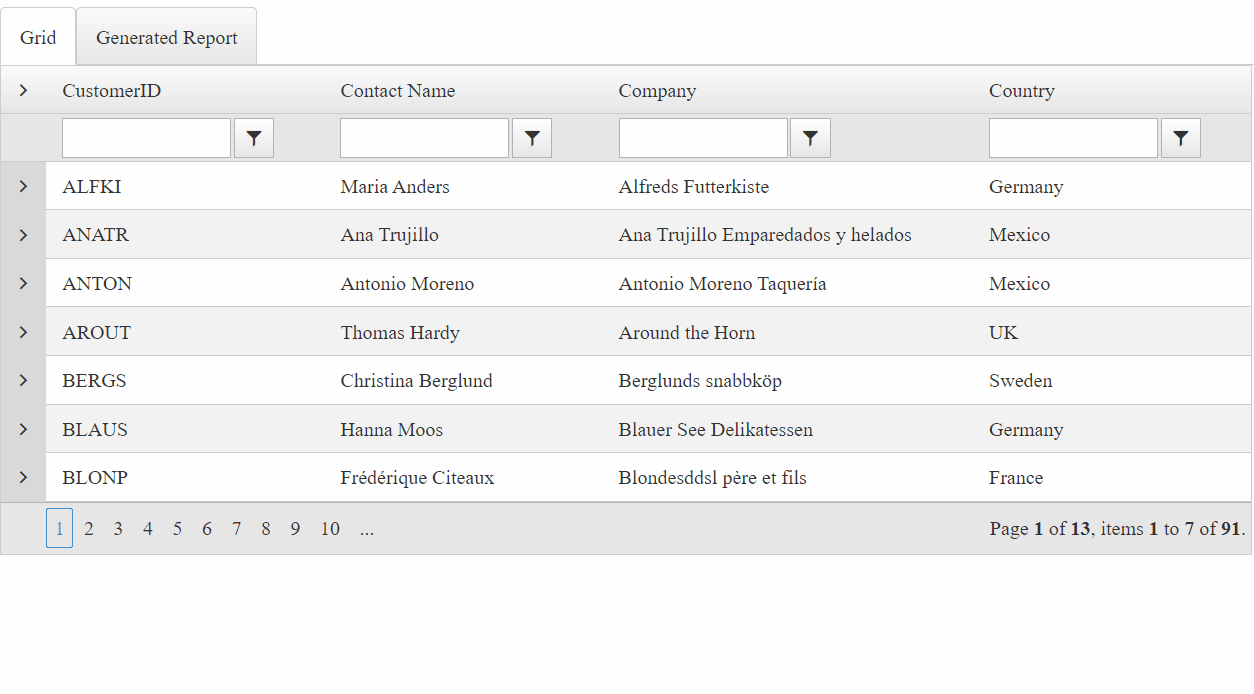

This article demonstrates how to integrate the Grid with the Telerik Reporting product to embed reporting functionality in your ASP.NET app.
The integration itself depends on external assemblies, such as:

Latest version of the Telerik.ReportViewer.Html5.WebForms.dll (distributed with the Telerik Reporting product)
Newtonsoft.Json.dll (version 12.0.0 or later)

If Telerik Reporting is not included in your license you can download a free trial or consider upgrading to Telerik DevCraft Complete.

Solution

The code below covers the following main points:

The components from both suites are defined in separate WebUserControl(s) and loaded in a RadTabStrip component. The first tab shows the RadGrid, loaded and populated with sample data. The second one opens a report viewer displaying the data obtained from the Grid.
The RadGrid is configured with a three-level hierarchy and with enabled sorting, filtering, and paging.
During the ReportViewer initialization, the data is gathered from the current state of the RadGrid and passed to a report definition in JSON format. The generated report provides interactivity features like sorting and collapsing, similarly to the Grid behavior.

Default.aspx

ASP.NET
<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="Default" %>
<%@ Register Src="~/GridUC_CS.ascx" TagPrefix="uc1" TagName="GridUC_CS" %>
<%@ Register Src="~/ReportViewerUC_CS.ascx" TagPrefix="uc1" TagName="ReportViewerUC_CS" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
        <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
            <Scripts>
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js" />
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js" />
                <asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js" />
            </Scripts>
        </telerik:RadScriptManager>

        <div class="demo-container no-bg">
            <telerik:RadTabStrip runat="server" ID="RadTabStrip1" MultiPageID="RadMultiPage1" SelectedIndex="0"
                OnTabClick="RadTabStrip1_TabClick" AutoPostBack="true">
                <Tabs>
                    <telerik:RadTab Text="Grid" Value="0"></telerik:RadTab>
                    <telerik:RadTab Text="Generated Report" Value="1"></telerik:RadTab>
                </Tabs>
            </telerik:RadTabStrip>
            <telerik:RadMultiPage runat="server" ID="RadMultiPage1" SelectedIndex="0">
                <telerik:RadPageView ID="RadPageView1" runat="server">
                    <telerik:RadAjaxPanel ID="RadAjaxPanel1" runat="server">
                        <uc1:griduc_cs runat="server" id="GridUC_CS" />
                    </telerik:RadAjaxPanel>
                </telerik:RadPageView>
                <telerik:RadPageView ID="RadPageView2" runat="server">
                    <uc1:reportvieweruc_cs runat="server" id="ReportViewerUC_CS" visible="false" />
                </telerik:RadPageView>
            </telerik:RadMultiPage>
        </div>
    </form>
</body>
</html>
C#
using System;
using System.Collections;
using System.Collections.Generic;
using Telerik.ReportViewer.Html5.WebForms;
using Telerik.Web.UI;

public partial class Default : System.Web.UI.Page
{
    protected void RadTabStrip1_TabClick(object sender, RadTabStripEventArgs e)
    {
        if (e.Tab.Value == "1")
        {
            var grid = (GridUC_CS.FindControl("RadGrid1") as RadGrid);
            ReportViewerUC_CS.Visible = true;
            var htmlReportViewer = (ReportViewerUC_CS.FindControl("ReportViewer1") as ReportViewer);
            ExtractGridDataToReport(grid, htmlReportViewer);
        }
    }

    private void ExtractGridDataToReport(RadGrid grid, ReportViewer htmlReportViewer)
    {
        var customers = new List<Customer>();
        foreach (GridDataItem parentItem in grid.MasterTableView.Items)
        {
            var customer = ExtractCustomerFromGridItem(parentItem);
            customers.Add(customer);
        }
        var ser = new AdvancedJavaScriptSerializer();
        var jsonGridCustomerData = ser.Serialize(customers);
        htmlReportViewer.ReportSource.Parameters.Add("JsonGridCustomerData", jsonGridCustomerData);
    }

    private Customer ExtractCustomerFromGridItem(GridDataItem gridDataItem)
    {
        var customerID = gridDataItem.GetDataKeyValue("CustomerID").ToString();
        var customer = new Customer(customerID);

        var table = new Hashtable();
        gridDataItem.ExtractValues(table);
        customer.ContactName = (string)table["ContactName"];
        customer.Company = (string)table["CompanyName"];
        customer.Country = (string)table["Country"];
        customer.City = (string)table["City"];
        customer.Address = (string)table["Address"];
        customer.HomePhone = (string)table["Phone"];
        customer.Orders = GetOrdersFromCustomerGridItem(gridDataItem);
        return customer;
    }

    private List<Order> GetOrdersFromCustomerGridItem(GridDataItem parentItem)
    {
        var orders = new List<Order>();
        if (parentItem.HasChildItems && parentItem.ChildItem.NestedTableViews[0].Items.Count > 0)
        {
            var nestedTableView = parentItem.ChildItem.NestedTableViews[0];

            foreach (GridDataItem childItem in nestedTableView.Items)
            {
                var orderID = (int)(childItem.GetDataKeyValue("OrderID"));
                var order = new Order(orderID, parentItem.GetDataKeyValue("CustomerID").ToString());

                var table = new Hashtable();
                childItem.ExtractValues(table);
                order.OrderDate = DateTime.Parse(table["OrderDate"].ToString());
                order.Freight = Double.Parse(table["Freight"].ToString());
                order.OrderDetails = GetOrdersDetailsFromOrderGridItem(childItem);
                orders.Add(order);
            }
        }
        return orders;
    }

    private List<OrderDetails> GetOrdersDetailsFromOrderGridItem(GridDataItem parentItem)
    {
        var ordersDetails = new List<OrderDetails>();
        if (parentItem.HasChildItems && parentItem.ChildItem.NestedTableViews[0].Items.Count > 0)
        {
            var nestedTableView = parentItem.ChildItem.NestedTableViews[0];

            foreach (GridDataItem childItem in nestedTableView.Items)
            {
                var table = new Hashtable();
                childItem.ExtractValues(table);
                var orderID = (int)(parentItem.GetDataKeyValue("OrderID"));
                var orderDetails = new OrderDetails(orderID)
                {
                    ProductID = int.Parse(table["ProductID"].ToString()),
                    Discount = Decimal.Parse(table["Discount"].ToString()),
                    Quantity = int.Parse(table["Quantity"].ToString()),
                    UnitPrice = Decimal.Parse(table["UnitPrice"].ToString())
                };
                ordersDetails.Add(orderDetails);
            }
        }
        return ordersDetails;
    }
}

public class Customer
{
    public Customer(string customerID)
    {
        this.CustomerID = customerID;
    }
    public string CustomerID { get; private set; }
    public string ContactName { get; set; }
    public string Company { get; set; }
    public string Country { get; set; }
    public string City { get; set; }
    public string Address { get; set; }
    public string HomePhone { get; set; }

    public List<Order> Orders { get; set; }
}

public class Order
{
    public Order(int orderID, string CustomerID)
    {
        this.OrderID = orderID;
        this.CustomerID = CustomerID;
    }
    public string CustomerID { get; private set; }
    public int OrderID { get; private set; }
    public DateTime OrderDate { get; set; }
    public Double Freight { get; set; }
    public List<OrderDetails> OrderDetails { get; set; }
}

public class OrderDetails
{
    public OrderDetails(int orderID)
    {
        this.OrderID = orderID;
    }
    public int OrderID { get; private set; }
    public int ProductID { get; set; }
    public int Quantity { get; set; }
    public Decimal UnitPrice { get; set; }
    public Decimal Discount { get; set; }
}

GridUC_CS User control

ASP.NET

<%@ Control Language="C#" ClassName="GridUC_CS" %>

<telerik:RadGrid RenderMode="Lightweight" ID="RadGrid1" ShowStatusBar="true" Width="1000px"
    DataSourceID="SqlDataSource1" runat="server" AutoGenerateColumns="False" PageSize="7"
    AllowSorting="True" AllowMultiRowSelection="False" AllowPaging="True" GridLines="None">
    <PagerStyle Mode="NumericPages"></PagerStyle>
    <MasterTableView Name="Customers" EnableHierarchyExpandAll="true" DataSourceID="SqlDataSource1" DataKeyNames="CustomerID" AllowMultiColumnSorting="True" AllowSorting="true" AllowFilteringByColumn="true">
        <DetailTables>
            <telerik:GridTableView Name="Orders" EnableHierarchyExpandAll="true" DataKeyNames="OrderID" DataSourceID="SqlDataSource2" Width="100%"
                runat="server">
                <ParentTableRelation>
                    <telerik:GridRelationFields DetailKeyField="CustomerID" MasterKeyField="CustomerID"></telerik:GridRelationFields>
                </ParentTableRelation>
                <DetailTables>
                    <telerik:GridTableView Name="OrdersDetails" EnableHierarchyExpandAll="true" DataKeyNames="OrderID" DataSourceID="SqlDataSource3" Width="100%"
                        runat="server">
                        <ParentTableRelation>
                            <telerik:GridRelationFields DetailKeyField="OrderID" MasterKeyField="OrderID"></telerik:GridRelationFields>
                        </ParentTableRelation>
                        <Columns>
                            <telerik:GridBoundColumn HeaderText="Product ID" DataField="ProductID"></telerik:GridBoundColumn>
                            <telerik:GridBoundColumn SortExpression="UnitPrice" HeaderText="Unit Price" HeaderButtonType="TextButton"
                                DataField="UnitPrice" UniqueName="UnitPrice">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn SortExpression="Quantity" HeaderText="Quantity" HeaderButtonType="TextButton"
                                DataField="Quantity" UniqueName="Quantity">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn SortExpression="Discount" HeaderText="Discount" HeaderButtonType="TextButton"
                                DataField="Discount" UniqueName="Discount">
                            </telerik:GridBoundColumn>
                        </Columns>
                    </telerik:GridTableView>
                </DetailTables>
                <Columns>
                    <telerik:GridBoundColumn SortExpression="OrderID" HeaderText="OrderID" HeaderButtonType="TextButton"
                        DataField="OrderID" UniqueName="OrderID">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn SortExpression="OrderDate" HeaderText="Date Ordered" HeaderButtonType="TextButton"
                        DataField="OrderDate" UniqueName="OrderDate" DataFormatString="{0:D}">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn SortExpression="Freight" HeaderText="Freight" HeaderButtonType="TextButton"
                        DataField="Freight" UniqueName="Freight">
                    </telerik:GridBoundColumn>
                </Columns>
            </telerik:GridTableView>
        </DetailTables>
        <Columns>
            <telerik:GridBoundColumn SortExpression="CustomerID" HeaderText="CustomerID" HeaderButtonType="TextButton"
                DataField="CustomerID" UniqueName="CustomerID">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="ContactName" HeaderText="Contact Name" HeaderButtonType="TextButton"
                DataField="ContactName" UniqueName="ContactName">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="CompanyName" HeaderText="Company" HeaderButtonType="TextButton"
                DataField="CompanyName" UniqueName="CompanyName">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="Country" HeaderText="Country" HeaderButtonType="TextButton"
                DataField="Country" UniqueName="Country">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="City" HeaderText="City" HeaderButtonType="TextButton" Display="false"
                DataField="City" UniqueName="City">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="Address" HeaderText="Address" HeaderButtonType="TextButton" Display="false"
                DataField="Address" UniqueName="Address">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn SortExpression="Phone" HeaderText="Home Phone" HeaderButtonType="TextButton" Display="false"
                DataField="Phone" UniqueName="Phone">
            </telerik:GridBoundColumn>
        </Columns>
    </MasterTableView>
</telerik:RadGrid>

<asp:SqlDataSource ID="SqlDataSource1" runat="server"
    ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
    ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM Customers" />

<asp:SqlDataSource ID="SqlDataSource2" ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
    ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM Orders Where CustomerID = @CustomerID"
    runat="server">
    <SelectParameters>
        <asp:SessionParameter Name="CustomerID" SessionField="CustomerID" Type="string"></asp:SessionParameter>
    </SelectParameters>
</asp:SqlDataSource>

<asp:SqlDataSource ID="SqlDataSource3" ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
    ProviderName="System.Data.SqlClient" SelectCommand="SELECT * FROM [Order Details] where OrderID = @OrderID"
    runat="server">
    <SelectParameters>
        <asp:SessionParameter Name="OrderID" SessionField="OrderID" Type="Int32"></asp:SessionParameter>
    </SelectParameters>
</asp:SqlDataSource>

ReportViewerUC_CS User Control

ASP.NET

<%@ Control Language="C#" ClassName="ReportViewerUC_CS" %>
<%@ Register Assembly="Telerik.ReportViewer.Html5.WebForms" Namespace="Telerik.ReportViewer.Html5.WebForms" TagPrefix="telerikRep" %>

<script src="https://demos.telerik.com/reporting/api/reports/resources/js/telerikReportViewer-kendo"></script>
<link href="https://kendo.cdn.telerik.com/2022.3.913/styles/kendo.common.min.css" rel="stylesheet" id="commonCss" />
<link href="https://kendo.cdn.telerik.com/2022.3.913/styles/kendo.default.min.css" rel="stylesheet" id="skinCss" />

<telerikRep:reportviewer id="ReportViewer1" runat="server" height="500px" Width="1000px"
    serviceurl="https://demos.telerik.com/reporting/api/reports/">
    <ReportSource IdentifierType="UriReportSource" Identifier="DataGridReportExample.trdp">
    </ReportSource>
    <ClientEvents Ready="reportViewerReady"/>
</telerikRep:reportviewer>

<telerik:RadScriptBlock ID="RadScriptBlock1" runat="server">
    <script>
        function reportViewerReady(sender, args) {
            var reportViewerElement = $('[id$=ReportViewer1]');
            if (reportViewerElement) {
                var reportViewerWidget = reportViewerElement.data("telerik_ReportViewer");
                if (reportViewerWidget) {
                    reportViewerWidget.refreshReport(true);
                    reportViewerWidget.scale({
                        scaleMode: 'SPECIFIC',
                        scale: 1.3
                    });
                }
            }
        }
    </script>
</telerik:RadScriptBlock>

Optional: Setting the version of the additional Newtonsoft.Json.dll in the dependentAssembly element in the web.config, e.g. version 13:

XML

<configuration>
    <runtime>
        <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
            <dependentAssembly>
                <assemblyIdentity name="Newtonsoft.Json" publicKeyToken="30ad4fe6b2a6aeed" culture="neutral" />
                <bindingRedirect oldVersion="9.0.0.0-13.0.0.0" newVersion="13.0.0.0"/>
            </dependentAssembly>
        </assemblyBinding>
    </runtime>
</configuration>

Integration with Telerik Reporting

Environment

Description

Solution
