Popup Styling

The TimeSpanPicker provides a set of options for styling the appearance of its elements such as its spinner, placeholder, and popup, as well as its border style and background color.

By using the PopupSettings property (of type Telerik.Maui.Controls.PickerPopupSettings) of the TimeSpanPicker, you can modify the appearance of the dialog (popup).

The PickerPopupSettings class exposes the following Style properties:

• PopupViewStyle(of type Style with target type telerik:PickerPopupContentView)—Defines the popup view style.
• HeaderStyle(of type Style with target type telerik:PickerPopupHeaderView)—Defines the popup header style.
• HeaderLabelStyle(of type Style with target type Label)—Defines the popup header label style.
• FooterStyle(of type Style with target type telerik:PickerPopupFooterView)—Defines the popup footer style.
• AcceptButtonStyle(of type Style with target type Button)—Defines the Accept button style.
• CancelButtonStyle(of type Style with target type Button)—Defines the Cancel button style.

The PickerPopupSettings also provides the following properties for popup customization:

• PopupOutsideBackgroundColor—Defines the color outside of the popup.

• IsPopupModal(bool)—Defines a boolean value indicating if the popup will be closed when users click outside the popup.

  • When IsPopupModal="True", the UI behind the popup gets inactive and cannot be used until the popup is closed.
  • When IsPopupModal="False", the popup can be closed when clicking outside the popup. By default, the value of the IsPopupModal is false.

• HeaderLabelText(string)—Specifies the text visualized in the popup header.

• IsHeaderVisible(bool)—Specifies whether the popup header is currently visible. By default, the value is True.

• IsFooterVisible(bool)—Specifies whether the popup footer is currently visible. By default, the value is True.

• AcceptButtonText(string)—Defines the text visualized for the Accept button. By default, the text is OK.

• CancelButtonText(string)—Defines the text visualized for the Cancel button. By default, the text is Cancel.

PopupSettings provides styling options for the popup, its header and footer, outside background color and other. If you need to customize the look&feel of the spinner controls that show the available time values, please refer to SpinnerStyle, SpinnerHeaderStyle and SelectionHighlightStyle properties of the TimeSpanPicker. For more detailed information on them go to TimeSpanPicker Styling topic.

Namespaces

When defining some of these styles, you will need to include additional namespaces, so that the target types are properly resolved.

If you use PopupViewStyle, HeaderStyle, or FooterStyle, you will need to add the following namespace:

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

Example

The following example shows how the styling properties are applied.

Let's have the following TimeSpan Picker definition:

xaml

<telerik:RadTimeSpanPicker BorderColor="#8660C5"
                           SpinnerHeaderStyle="{StaticResource spinnerHeaderStyle}"
                           SpinnerStyle="{StaticResource spinnerStyle}"
                           SelectionHighlightStyle="{StaticResource selectionHighlightStyle}"
                           DisplayLabelStyle="{StaticResource displayLabelStyle}"
                           PlaceholderLabelStyle="{StaticResource placeholderLabelStyle}"
                           ClearButtonStyle="{StaticResource clearButtonStyle}"
                           ToggleButtonStyle="{StaticResource toggleButtonStyle}"
                           IsClearButtonVisible="True"
                           IsToggleButtonVisible="True"
                           AutomationId="timeSpanPicker"/>

And here are how the styles are defined in the page resources.

Popup View Style

XAML

<Style TargetType="telerik:PickerPopupContentView" x:Key="popupViewStyle">
    <Setter Property="BackgroundColor" Value="White"/>
    <Setter Property="WidthRequest" Value="270"/>
</Style>

Header Style

XAML

<Style TargetType="telerik:PickerPopupHeaderView" x:Key="headerStyle">
    <Setter Property="BackgroundColor" Value="#00B5DC"/>
    <Setter Property="HeightRequest" Value="60"/>
    <Setter Property="Margin" Value="0"/>
    <Setter Property="Padding" Value="0"/>
    <Setter Property="HorizontalOptions" Value="FillAndExpand"/>
    <Setter Property="VerticalOptions" Value="FillAndExpand"/>
</Style>

Header Label Style

XAML

<Style TargetType="Label" x:Key="headerLabelStyle">
    <Setter Property="TextColor" Value="White"/>
    <Setter Property="HorizontalOptions" Value="Center"/>
    <Setter Property="VerticalOptions" Value="Center"/>
    <Setter Property="FontSize" Value="Title"/>
</Style>

Footer Style

XAML

<Style TargetType="telerik:PickerPopupFooterView" x:Key="footerStyle">
    <Setter Property="BackgroundColor" Value="#00B5DC"/>
</Style>

Accept Button Style

XAML

<Style TargetType="Button" x:Key="acceptButtonStyle">
    <Setter Property="BackgroundColor" Value="Transparent"/>
    <Setter Property="Text" Value="Accept"/>
    <Setter Property="TextColor" Value="White"/>
</Style>

Cancel Button Style

XAML

<Style TargetType="Button" x:Key="cancelButtonStyle">
    <Setter Property="BackgroundColor" Value="Transparent"/>
    <Setter Property="Text" Value="Reject"/>
    <Setter Property="TextColor" Value="White"/>
</Style>

Namespaces

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

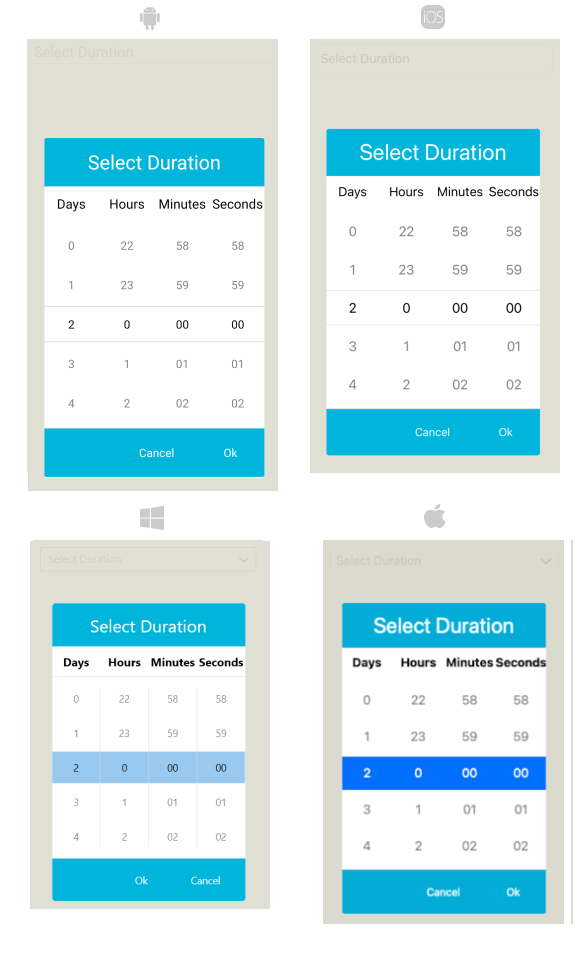

This is how the TimeSpanPicker control looks when the styles described above are applied:
