.NET MAUI TimePicker Styling

Updated over 6 months ago

The TimePicker control for .NET MAUI provides styling options for customizing its appearance. You can style the TimePicker itself, as well as its popup or dropdown depending on the PickerMode setting.

The control supports the following styling properties:

• BackgroundColor—Defines the background color of the picker.
• BorderColor—Defines the border color of the picker.
• BorderThickness—Specifies the border thickness of the picker. The default value is new Thickness(0,0,0,1).
• CornerRadius—Specifies the corner radius of the picker.
• ClearButtonStyle(of type Style with target type RadButton)—Defines the style applied to the Clear button.
• ToggleButtonStyle(of type Style with target type RadButton)—Specifies the style of the Toggle button.
• PlaceholderLabelStyle(of type Style with target type Label)—Defines the style applied to the placeholder label.
• DisplayLabelStyle(of type Style with target type Label)—Defines the style applied to the label which is visualized when time is selected.

The following Style properties are related to the spinner controls inside the popup/dropdown:

• SpinnerStyle(of type Style with target type telerikDataControls:RadSpinner)—Defines the style applied to the spinner item and to the selected item.
• SpinnerHeaderStyle(of type Style with target type Label)—Specifies the style applied to the spinner header labels.
• SelectionHighlightStyle(of type Style with target type telerikPrimitives:RadBorder)—Specifies the style applied to the selection inside the popup.

Namespaces

When defining some of these styles, you need to include additional namespaces, so that the target types are properly resolved.

When you use SelectionHighlightStyle and SpinnerStyle, you need to add the following namespace:

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

Example

The following example shows how the styling properties can be applied.

Define the RadTimePicker

xaml

<telerik:RadTimePicker PickerMode="Popup"
                       DefaultHighlightedTime="10:30"
                       DisplayStringFormat="HH:mm"
                       AutomationId="timePicker">
    <telerik:RadTimePicker.PopupSettings>
        <telerik:PickerPopupSettings PopupOutsideBackgroundColor="#D9D9D9CC"
                                     PopupViewStyle="{StaticResource popupViewStyle}"
                                     HeaderStyle="{StaticResource headerStyle}"
                                     HeaderLabelText="Time Picker"
                                     HeaderLabelStyle="{StaticResource headerLabelStyle}"
                                     FooterStyle="{StaticResource footerStyle}"
                                     AcceptButtonStyle="{StaticResource acceptButtonStyle}"
                                     CancelButtonStyle="{StaticResource cancelButtonStyle}"
                                     AcceptButtonText="{StaticResource acceptButtonText}"
                                     CancelButtonText="{StaticResource cancelButtonText}"/>
    </telerik:RadTimePicker.PopupSettings>
</telerik:RadTimePicker>

Define the SpinnerStyle

xaml

<Style TargetType="telerik:RadSpinner" x:Key="spinnerStyle">
    <Setter Property="ItemStyle">
        <Setter.Value>
            <Style TargetType="telerik:SpinnerItemView">
                <Setter Property="TextColor" Value="#797979" />
                <Setter Property="BackgroundColor" Value="#F2F2F2" />
                <Setter Property="CornerRadius" Value="10" />
                <Setter Property="Margin" Value="6, 4" />
            </Style>
        </Setter.Value>
    </Setter>
    <Setter Property="SelectedItemStyle">
        <Setter.Value>
            <Style TargetType="telerik:SpinnerItemView">
                <Setter Property="TextColor" Value="#00B5DC" />
                <Setter Property="BackgroundColor" Value="#E4F3F9" />
                <Setter Property="CornerRadius" Value="10" />
                <Setter Property="Margin" Value="6, 4" />

            </Style>
        </Setter.Value>
    </Setter>
    <Setter Property="HeightRequest" Value="240"/>
</Style>

Define the SelectionHighlightStyle

xaml

<Style TargetType="telerik:RadBorder" x:Key="selectionHighlightStyle">
    <Setter Property="BorderColor" Value="#00B5DC"/>
    <Setter Property="BorderThickness" Value="1"/>
    <Setter Property="Padding" Value="0,6,0,6"/>
    <Setter Property="HeightRequest" Value="40"/>
    <Setter Property="VerticalOptions" Value="Center"/>
    <Setter Property="BackgroundColor" Value="#F9F9F9"/>
</Style>

Define the PlaceholderLabelStyle

xaml

<Style TargetType="Label" x:Key="placeholderLabelStyle">
    <Setter Property="TextColor" Value="#4A4949"/>
    <Setter Property="VerticalTextAlignment" Value="Center"/>
    <Setter Property="HorizontalTextAlignment" Value="Center"/>
    <Setter Property="Margin" Value="10"/>
</Style>

Define the DisplayLabelStyle

xaml

<Style TargetType="Label" x:Key="displayLabelStyle">
    <Setter Property="TextColor" Value="#151950"/>
    <Setter Property="VerticalTextAlignment" Value="Center"/>
    <Setter Property="HorizontalTextAlignment" Value="Center"/>
    <Setter Property="Margin" Value="10"/>
</Style>

Define the ClearButtonStyle

xaml

<Style TargetType="telerik:RadButton" x:Key="clearButtonStyle">
    <Setter Property="TextColor" Value="#8660C5"/>
</Style>

Define the ToggleButtonStyle

xaml

<Style TargetType="telerik:RadButton" x:Key="toggleButtonStyle">
    <Setter Property="TextColor" Value="#7C59B6"/>
</Style>

Namespaces

In addition, add the following namespaces:

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

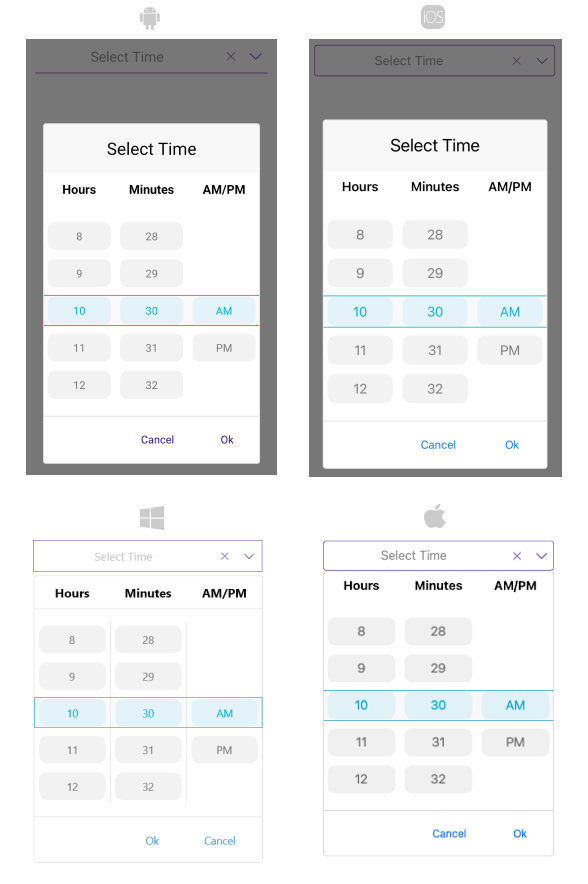

The following image shows how the TimePicker control looks when the styles described above are applied.
