.NET MAUI Map Selection

The Map allows users to select one or many shapes out of the source applied by each MapShapefileLayer. This feature provides both visual and programmatic feedback for the actions of the user.

The following members of the ShapefileLayer class are related to the selection:

• SelectionMode (enum of type MapSelectionMode)—Indicates the selection mode. The options are:

  • None
  • Single
  • Multiple

• SelectedShape (of type IShape)—Defines the currently selected shape instance. When multiple selection is enabled, this value is set to the first selected shape.

• SelectedShapes (read-only collection of type ObservableCollection<IShape>)—Reads the collection with the currently selected shapes. When the selection is Single, only one shape can be selected–thus the collection will have count = 1.

• SelectedShapeStyle (of type MapShapeStyle): Defines the way selected shape look through the provided StrokeWidth, StrokeColor and FillColor properties. For more details on the MapShapeStyle usage go to Shapes Styling topic.

Define RadMap with SelectionMode:

xaml

<telerik:RadMap x:Name="map">
    <telerik:RadMap.Layers>
        <telerik:MapShapefileLayer x:Name="mapShapeLayer" SelectionMode="Multiple">
            <telerik:MapShapefileLayer.Reader>
                <telerik:MapShapeReader x:Name="reader"/>
            </telerik:MapShapefileLayer.Reader>
        </telerik:MapShapefileLayer>
    </telerik:RadMap.Layers>
</telerik:RadMap>

Where the Source and the DataSource of the MapShapeReader have to be set to a .shp and .dbf files, respectively:

c#

var assembly = this.GetType().Assembly;
var source = MapSource.FromResource("SDKBrowserMaui.Examples.MapControl.world.shp", assembly);
var dataSource = MapSource.FromResource("SDKBrowserMaui.Examples.MapControl.world.dbf", assembly);
this.reader.Source = source;
this.reader.DataSource = dataSource;

Add the namespace:

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

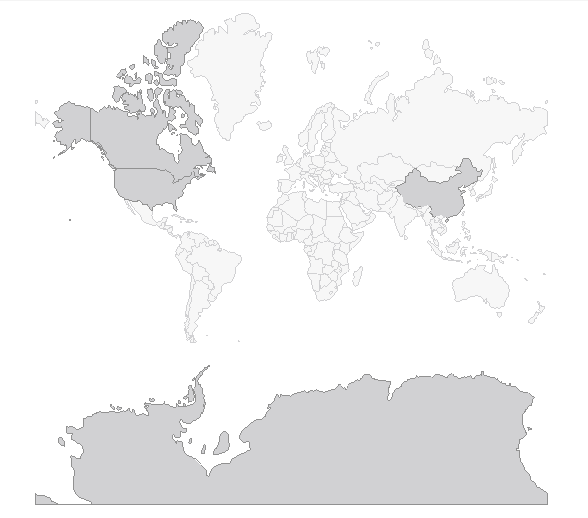

Check below how RadMap with a few selected shapes will look like:

Example with Programmatical Shape Selection

The snippet below demonstrates how you can select a shape programmatically. In the example the used ESRI file contains the world map, so the shape that is selected is a country. The example uses the Shapes property of the Map to traverse through all the available shapes.

Let's select/deselect "France", for example, on clicking buttons:

xaml

<Button Text="Select France" Clicked="SelectFranceClicked" Padding="5"/>
<Button Text="Deselect France" Clicked="DeselectFranceClicked" Padding="5" />

And the event handlers:

c#

private void SelectFranceClicked(object sender, EventArgs e)
{
    var shape = this.GetItemFromCountryName("France");
    if (shape != null)
    {
        this.mapShapeLayer.SelectedShapes.Add(shape);
    }
}

private void DeselectFranceClicked(object sender, EventArgs e)
{
    var shape = this.GetItemFromCountryName("France");
    if (shape != null && this.mapShapeLayer.SelectedShapes.Contains(shape))
    {
        this.mapShapeLayer.SelectedShapes.Remove(shape);
    }
}

private IShape GetItemFromCountryName(string countryName)
{
    foreach (var shape in this.reader.Shapes)
    {
        var name = shape.GetAttribute("CNTRY_NAME").ToString();
        if (name == countryName)
        {
            return shape;
        }
    }
    return null;
}

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

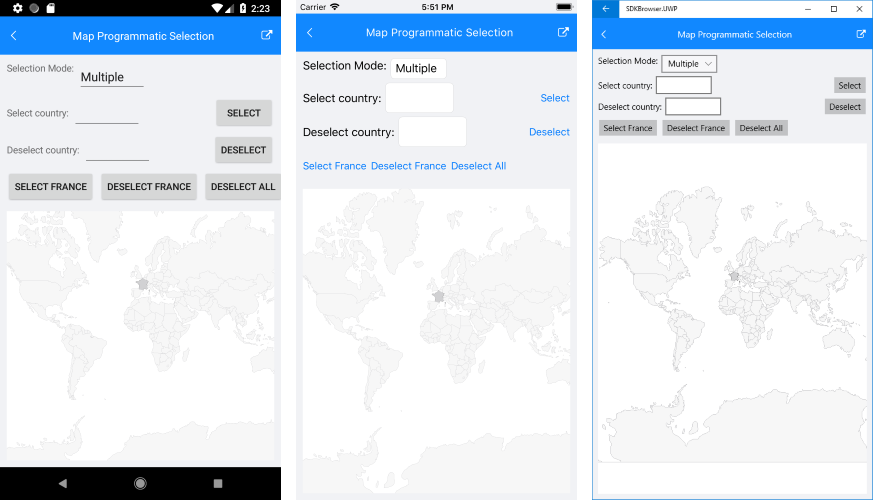

Here is the result:

A sample Programmatic Selection example can be found in the Map/Selection folder of the SDK .NET MAUI Demo application.
