Y axis needs to use integer numbers (without decimals)

[Nazareth]

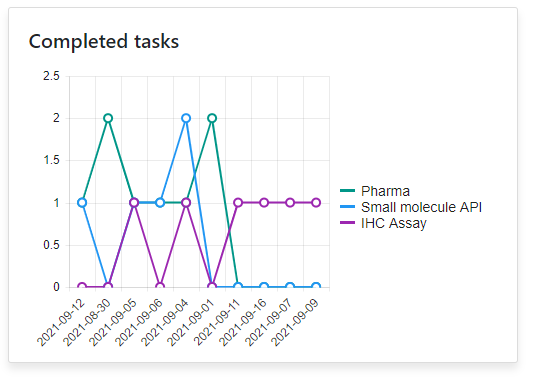

Hi, I have this line chart, which is generating decimal counts. I want to have an integer scale (without decimals), because it is a count of completed or not.

<kendo-chart>
    <kendo-chart-tooltip format="Completed tasks: {0}"></kendo-chart-tooltip>
    <kendo-chart-category-axis>
    <kendo-chart-category-axis-item [labels]="{ format: 'd', rotation: 'auto' }">
    </kendo-chart-category-axis-item>
    </kendo-chart-category-axis>
    <kendo-chart-value-axis>
      <kendo-chart-value-axis-item [min]="0">
      </kendo-chart-value-axis-item>
    </kendo-chart-value-axis>
    <kendo-chart-series>
      <kendo-chart-series-item
        type="line"
        *ngFor="let item of workflowsLinechartData"
        [data]="item.items"
        [name]="item.value"
        aggregate="count"
        field="taskName"
        categoryField="endTime">
      </kendo-chart-series-item>
    </kendo-chart-series>
  </kendo-chart>



Already tried this:



<kendo-chart-value-axis>
      <kendo-chart-value-axis-item [labels]="{format: 'n0'}" [min]="0">
      </kendo-chart-value-axis-item>
    </kendo-chart-value-axis>

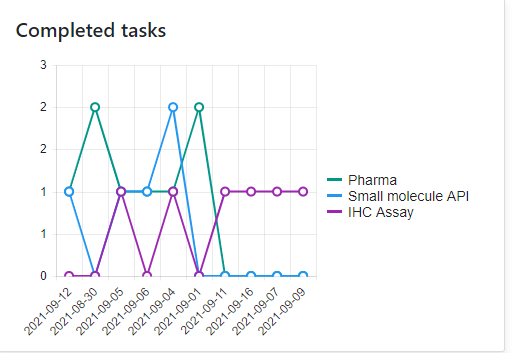

but the output is repeating the integers:



How I can manage this?

Thanks



[Stoyan]

Hi Nazareth,

Thanks for the provided information and snapshots.

To set an integer scale without decimals, the developer could set the min and max properties of the kendo-chart-value-axis-item respectively to 0 and 3:

<kendo-chart>
      <kendo-chart-value-axis>
        <kendo-chart-value-axis-item
          [min]="0"
          [max]="3"
        >
        </kendo-chart-value-axis-item>
      </kendo-chart-value-axis>
...

I hope this helps. If any other questions come to mind, please do not hesitate to address them to us.

Regards,
Stoyan
Progress Telerik

[Nazareth]

Hi Stoyan,

Thanks a lot for your response.

I added more data, and the problem was solved. I did not want to fix the axis because the data can change over time, I am using an angular service.

Best regards,

Nazareth

[Ivan]

Hi Nazareth,

One thing you can try is to set "majorUnit" attribute of <kendo-chart-value-axis-item>, it may be adjusted even with decimals less that 1 , i.e. 0.5, 0.6, 0.7 .... Please refer to this stackblitz sample which demonstrates this approach.

Let us know if that would help and please do not hesitate to ask further assitance if needed.

Regards,
Ivan
Progress Telerik
