Why RadAjaxLoadingPanel1 not displaying in center of the form on grid and row selection displaying multiple colors when Hover and select

6 Answers 48 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Dorababu
Top achievements
Rank 1
Dorababu asked on 16 May 2012, 01:33 PM
I have worked with grid with several options but I am facing two issues i.e unable to display the RadAjaxLoadingPanel1 in the center of the form on grid and row selected color is displaying multiple colors when row is selected and hover on the row

My code

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default1.aspx.cs" Inherits="_Default1" %>

<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<head runat="server">
    <title></title>
    <link href="Grid.Office2010Silver.css" rel="stylesheet" type="text/css" />
    <link href="Ajax.Office2010Silver.css" rel="stylesheet" type="text/css" />
</head>
<body>
    <form id="form1" runat="server">
    <telerik:RadScriptManager ID="RadScriptManager1" runat="server" />
    <div>
        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            <AjaxSettings>
                <telerik:AjaxSetting AjaxControlID="RadGrid1">
                    <UpdatedControls>
                        <telerik:AjaxUpdatedControl ControlID="RadGrid1" LoadingPanelID="RadAjaxLoadingPanel1" />
                    </UpdatedControls>
                </telerik:AjaxSetting>
            </AjaxSettings>
        </telerik:RadAjaxManager>
        <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server" Visible="true"
            CssClass="RadAjax_Office2010Silver" MinDisplayTime="2000" Transparency="1">
            <asp:Image ID="img" runat="server" ImageUrl="~/loading.gif" />
        </telerik:RadAjaxLoadingPanel>
        <telerik:RadGrid ID="RadGrid1" ShowFooter="false" CssClass="RadGrid_Office2010Silver"
             AllowMultiRowSelection="false" OnItemCommand="RadGrid1_ItemCommand"
            AllowPaging="true" AllowSorting="true" PageSize="10" runat="server" OnPageIndexChanged="RadGrid1_PageIndexChanged"
          EnableAjaxSkinRendering="false"  AllowCustomPaging="True" OnPageSizeChanged="RadGrid1_PageSizeChanged" OnNeedDataSource="RadGrid1_NeedDataSource">
            <PagerStyle Mode="NextPrevAndNumeric" />
            <ClientSettings EnableRowHoverStyle="true">
                <Scrolling AllowScroll="True" UseStaticHeaders="True" ScrollHeight="200" SaveScrollPosition="true"
                    FrozenColumnsCount="3"></Scrolling>
                <Selecting AllowRowSelect="true" />
            </ClientSettings>
            <MasterTableView DataKeyNames="EmployeeID" AutoGenerateColumns="false">
                <Columns>
                    <telerik:GridBoundColumn DataField="EmployeeID" UniqueName="EmployeeID" HeaderText="EmployeeID"
                        HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="FirstName" HeaderStyle-HorizontalAlign="Center"
                        ItemStyle-HorizontalAlign="Center" UniqueName="FirstName" HeaderText="FirstName">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="LastName" UniqueName="LastName" HeaderText="LastName"
                        HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="Address" UniqueName="Address" HeaderText="Address"
                        HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center">
                    </telerik:GridBoundColumn>
                </Columns>
            </MasterTableView>
        </telerik:RadGrid>
    </div>
    </form>
</body>
</html>


6 Answers, 1 is accepted

Sort by
0
Pavlina
Telerik team
answered on 17 May 2012, 09:29 AM
Hello Dorababu,

This help article demonstrates how you can center the Loading Panel on the Screen. Give it a try and see if it helps to achieve your goal.

Regarding the problem with half selected row you can check this code library which explains how to find out the original RadGrid hover/selected row background and enforce it back.

Regards,
Pavlina
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
0
Dorababu
Top achievements
Rank 1
answered on 17 May 2012, 10:49 AM
But with grid this is not working I changed as per the given but on paging I am unable to view my loading image
0
Dorababu
Top achievements
Rank 1
answered on 17 May 2012, 11:29 AM
Ok Ajax panel issue was solved but what about that grid row selection
0
Pavlina
Telerik team
answered on 17 May 2012, 11:42 AM
Hi,

Can you confirm that you have examined the code library below and it does not help:
http://www.telerik.com/community/code-library/aspnet-ajax/grid/how-to-preserve-the-original-radgrid-selected-hover-row-background-when-using-itemstyle-backcolor.aspx

Kind regards,
Pavlina
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
0
Dorababu
Top achievements
Rank 1
answered on 17 May 2012, 12:19 PM
I am working on this example

http://demos.telerik.com/aspnet-ajax/grid/examples/client/selecting/defaultcs.aspx

and this is my grid design

<telerik:RadGrid ID="RadGrid1" ShowFooter="false" AllowMultiRowSelection="false"
           CssClass="RadGrid_Office2010Silver" OnItemCommand="RadGrid1_ItemCommand" AllowPaging="true"
            AllowSorting="true" PageSize="10" runat="server" OnPageIndexChanged="RadGrid1_PageIndexChanged"
            EnableAjaxSkinRendering="false" EnableEmbeddedSkins="false" AllowCustomPaging="True" OnPageSizeChanged="RadGrid1_PageSizeChanged"
            OnNeedDataSource="RadGrid1_NeedDataSource">

            <PagerStyle Mode="NextPrevAndNumeric" />
            <ClientSettings EnableRowHoverStyle="true">
                <Scrolling AllowScroll="True" UseStaticHeaders="True" SaveScrollPosition="true" FrozenColumnsCount="3">
                </Scrolling>
                <Selecting AllowRowSelect="true" />
            </ClientSettings>
            <MasterTableView DataKeyNames="EmployeeID" AutoGenerateColumns="false">
                <Columns>
                    <telerik:GridBoundColumn DataField="EmployeeID" UniqueName="EmployeeID" HeaderText="EmployeeID"
                        HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="FirstName" HeaderStyle-HorizontalAlign="Center"
                        ItemStyle-HorizontalAlign="Center" UniqueName="FirstName" HeaderText="FirstName">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="LastName" UniqueName="LastName" HeaderText="LastName"
                        HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="Address" UniqueName="Address" HeaderText="Address"
                        HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center">
                    </telerik:GridBoundColumn>
                </Columns>
            </MasterTableView>
        </telerik:RadGrid>

This one is working good but if I set EnableEmbeddedSkins="true" I am getting multi colors as I posted. If I set it to false Grid is working fine but the Page size css is getting changed ..

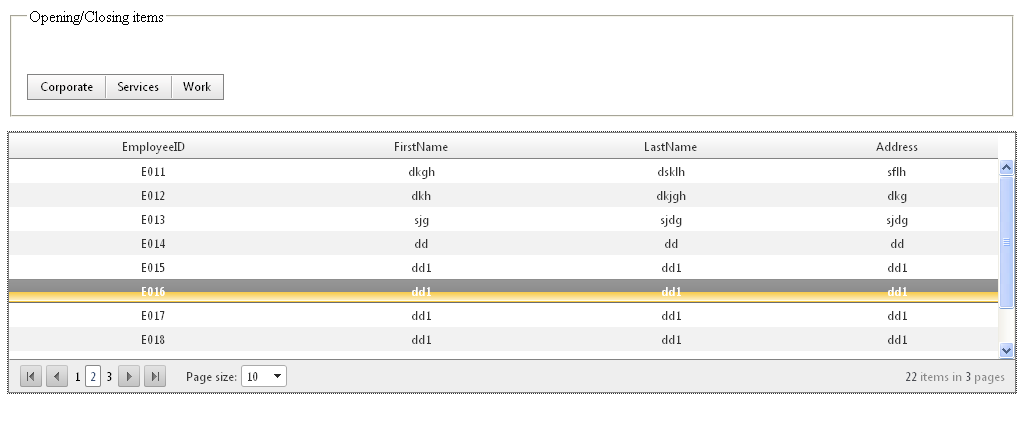

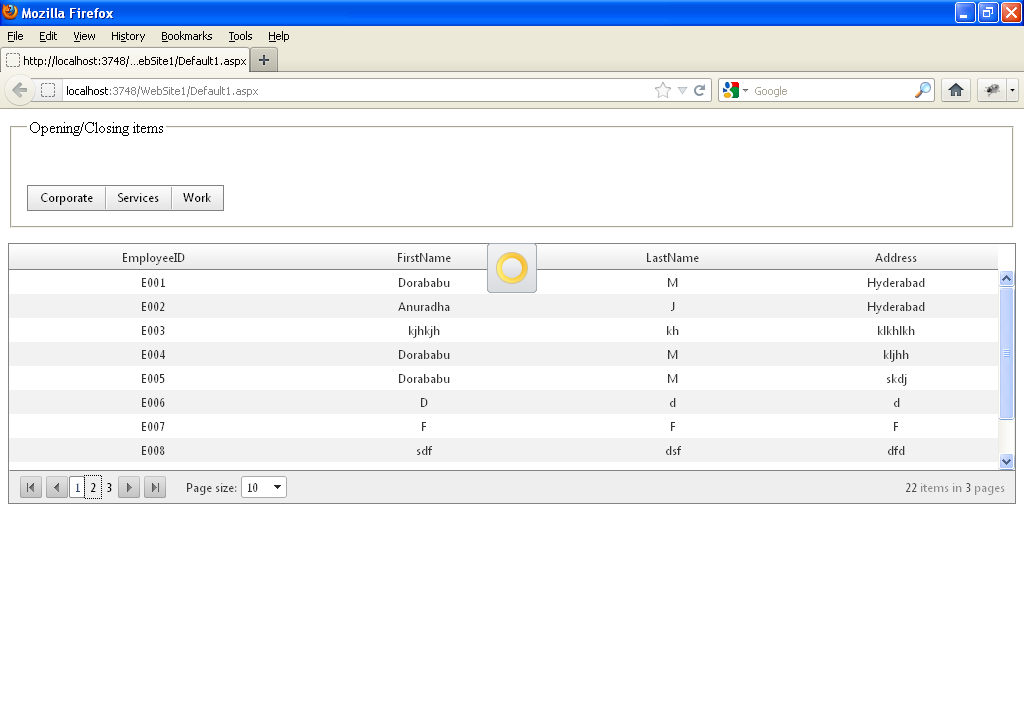

Check my attachments the functionality which is available in second image is changed to first Image if I set EnableEmbeddedSkins="false" any help please


0
Pavlina
Telerik team
answered on 17 May 2012, 10:10 PM
Hi,

Note that you should set Skin property for your grid with the name of your custom skin instead of CssClass property. This way the custom skin will be applied for the pager combo properly:
<telerik:RadGrid ID="RadGrid1" ShowFooter="false" AllowMultiRowSelection="false"
           Skin="RadGrid_Office2010Silver"


Kind regards,
Pavlina
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
