White Space in Telerik report in WPF

2 posts, 0 answers
  1. Abdusalam
    Abdusalam avatar
    2 posts
    Member since:
    Mar 2012

    Posted 22 May 2014 Link to this post


    I have problem with Telerik report in WPF application, I'm trying to print the receipt report, It works but after printing there's a white space that I can not know from this white space come from!! in design  mode there's no white space but when I print the white space is appear.

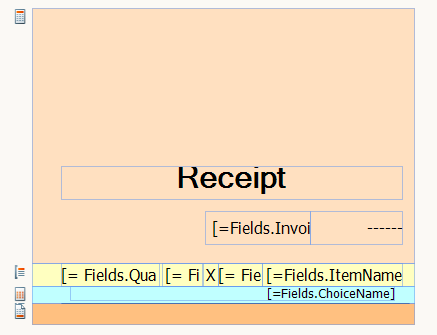

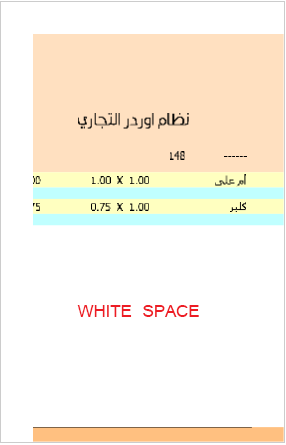

    Attached two screen shot for the receipt design (one in design mode and the other after print the receipt). I make it colored for more clarity.

    Hope anyone can help me to solve this issue, I spend lot of hours to solve it but unfortunately I can't :(

    Thanks in advance.
  2. Stef
    Stef avatar
    3610 posts

    Posted 27 May 2014 Link to this post

    Hello Abdusalam,

    On your first screenshot - design.png, the orange section is a PageFooter section, which in Print Preview will be always rendered at the bottom of the page defined by the report's PageSettings properties. Please test to change the PageSettings.PaperSize. For more details check the Understanding Pagination help article.

    If the data amount is unknown and you need to size the page per it, our recommendation is to analyze the data, and knowing the report layout to set the PageSettings properties of the report instance prior to displayng the report at run-time. You can also use a user function and a binding to the PageSettings.PaperSize property.

    I hope this information helps you.
