While using frozen column horizontal scroll Disappears on Window resize

37 posts, 0 answers
  1. Prosen
    Prosen avatar
    1 posts
    Member since:
    Aug 2010

    Posted 11 Aug 2010 Link to this post

    I am using 3 frozen columns in my grid. And then there are other columns that are dynamically added to the grid.
    A horizontal scroll appears when the columns exceeds the maximum width. Till now it works great.
    Now if I scroll the horizontal scroll to extreme right and resize my browser window, the horizontal scroll disappears making the the initial non frozen columns inaccessible.
    This issue does not occur when forzen columns is removed.

    Here is my grid's markup:

    <telerik:radgrid id="pptGrid" runat="server" height="450px" Width="1024px" CssClass="pptGrid" OnItemDataBound="pptGrid_ItemDataBound" AutoGenerateColumns="false">
        <HeaderStyle CssClass="centeredTableHeader"></HeaderStyle>
        <ItemStyle CssClass="pptGridItem"></ItemStyle>
        <AlternatingItemStyle CssClass="pptGridItem"></AlternatingItemStyle>
        <ClientSettings Scrolling-AllowScroll="True">
            <Resizing AllowColumnResize="False" EnableRealTimeResize="false" ClipCellContentOnResize="false">
            </Resizing>
            <Scrolling AllowScroll="True" UseStaticHeaders="True" SaveScrollPosition="True" FrozenColumnsCount="3" EnableVirtualScrollPaging="true">
            </Scrolling>
            <ClientEvents OnGridCreated="scrollDiv" />
        </ClientSettings>

        <MasterTableView autogeneratecolumns="false" TableLayout="fixed">
            <Columns>

            </Columns>
        </MasterTableView>
        <HeaderContextMenu EnableAutoScroll="True">
        </HeaderContextMenu>
    </telerik:radgrid>

    Is there any additional property setting I need to use? Please suggest ?
  2. Dimo
    Admin
    Dimo avatar
    8451 posts

    Posted 11 Aug 2010 Link to this post

    Hello Prosen,

    This is an existing issue and I am afraid there is no known workaround. Sorry about the inconvenience.

    Best wishes,
    Dimo
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. Jack
    Jack avatar
    1 posts
    Member since:
    Oct 2007

    Posted 12 Aug 2010 Link to this post

    What are you plans for fixing this?

    I have the exact same problem. If anyone tries to develop using frozen columns they will inevitably run into this problem.

    How long has this been an issue for?
  4. Dimo
    Admin
    Dimo avatar
    8451 posts

    Posted 13 Aug 2010 Link to this post

    Hello Mark,

    We have researched this issue and have found no good fix so far. I am afraid I can't provide specific timeframe as to when the problem will be resolved.

    Regards,
    Dimo
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  5. Richie
    Richie avatar
    1 posts
    Member since:
    Feb 2008

    Posted 19 Aug 2010 Link to this post

    We are seeing the same issue. This is a HUGE problem for us. In IE 8 we see this issue but we don't see it in compatibility mode.
  6. Jesse
    Jesse avatar
    1 posts
    Member since:
    Sep 2010

    Posted 06 Sep 2010 Link to this post

    We're seeing this as well (and a number of related items). Do you have the link to the bug in the public bug list? I'm unable to find the related issues. Otherwise I'll submit them to the database.
  7. Dimo
    Admin
    Dimo avatar
    8451 posts

    Posted 07 Sep 2010 Link to this post

    Hello Jesse,

    There is a related item in our issue tracking system, which I have now made public, so it will appear in PITS after the next synchronization (once in 24 hours).

    http://www.telerik.com/support/pits.aspx

    Regards,
    Dimo
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  8. Srikanth
    Srikanth avatar
    1 posts
    Member since:
    Oct 2010

    Posted 06 Oct 2010 Link to this post

    Hello,

    Did you get any chance to look at this problem. I'm also facing the same problem, If I placed Compatibility view then the frozen column is working, else no horizontal scroll and all the data is becoming clumsy.. But if I go through Compatibility view, My default Master page Css is blurring.

    What to do, Can you check for a fix for this at the earliest..

    Thanks.
    Srikanth,.
  9. Dimo
    Admin
    Dimo avatar
    8451 posts

    Posted 07 Oct 2010 Link to this post

    Hello Srikanth,

    I am afraid this issue has a lower priority, compared to other tasks we currently have and we haven't researched it yet.

    Greetings,
    Dimo
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  10. Lana
    Lana avatar
    1 posts
    Member since:
    Feb 2011

    Posted 01 Feb 2011 Link to this post

    We found a workaround that worked for us.

    Apparently the scrollbar disappears when header height changes while scrolling, i.e. when column header text wraps into different number of rows for different columns. So, setting the header height to the maximum expected column header height allows to avoid the problem. For example:
    <MasterTableView>
        <HeaderStyle Height="60px" />



  11. Jon
    Jon avatar
    3 posts
    Member since:
    Jun 2010

    Posted 27 May 2011 Link to this post

    Any update on this issue? I have run into the same situation. The "resolution" of setting a height in the headerstyle of the RadGrid did not work for me.

    Regards,
    Jon
  12. Pavlina
    Admin
    Pavlina avatar
    6187 posts

    Posted 28 May 2011 Link to this post

    Hello Jon,

    Unfortunately we cannot say for sure when this problem will be fixed. It is a high priority for our developers, and hopefully we might see the problem resolved soon.

    Regards,
    Pavlina
    the Telerik team

    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.

  13. Stanley
    Stanley avatar
    13 posts
    Member since:
    Jun 2011

    Posted 22 Aug 2011 Link to this post

    I have found in my case that if I resize to any resolution less than 1280 x 1024 then the scroll bar will not appear. Anything equal or above this then it will appear.
  14. Galin
    Admin
    Galin avatar
    526 posts

    Posted 26 Aug 2011 Link to this post

    Hi Stanley,

    Thank you for your suggestion. I forward it to our developers and they will point the notice.

    Regards,
    Galin
    the Telerik team

    Thank you for being the most amazing .NET community! Your unfailing support is what helps us charge forward! We'd appreciate your vote for Telerik in this year's DevProConnections Awards. We are competing in mind-blowing 20 categories and every vote counts! VOTE for Telerik NOW >>

  15. Pavlina
    Admin
    Pavlina avatar
    6187 posts

    Posted 16 Sep 2011 Link to this post

    Hi Richie,

    I am glad to announce that this bug is already fixed and the fix is available in Q2 2011 SP release of RadControls for ASP.NET AJAX.

    All the best,
    Pavlina
    the Telerik team
    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal
  16. Stanley
    Stanley avatar
    13 posts
    Member since:
    Jun 2011

    Posted 23 Sep 2011 Link to this post

    I'm sorry Pavlina but unless we are talking about a different issue I am still getting a problem that if I resize my screen to less than 1280 x 1024 then no horizontal scroll bar appears.

    I have installed the latest version of the DLL's.
  17. Pavlina
    Admin
    Pavlina avatar
    6187 posts

    Posted 23 Sep 2011 Link to this post

    Hello Stanley,

    Can you please verify that after you resize the browser window the RadGrid control does not fit in the allowed space and still needs a horizontal scroll to show its data?

    If the problem still persists, please send us a sample project via support ticket where the issue can be observed, so we can provide a solution/fix.

    Regards,
    Pavlina
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  18. Stanley
    Stanley avatar
    13 posts
    Member since:
    Jun 2011

    Posted 25 Sep 2011 Link to this post

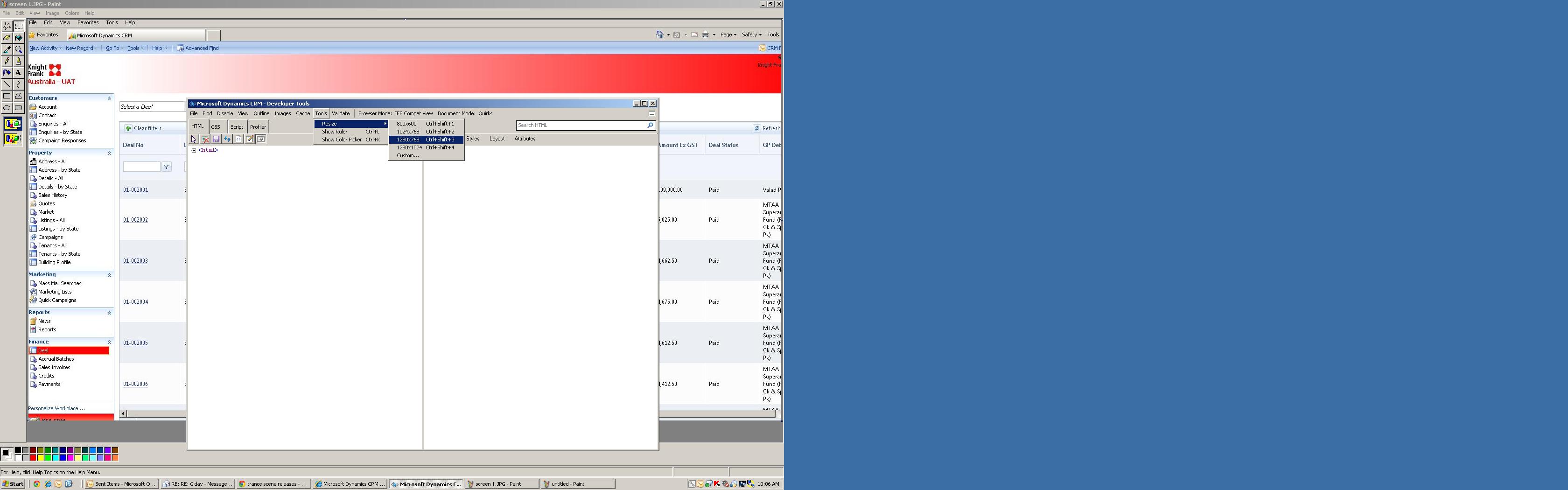

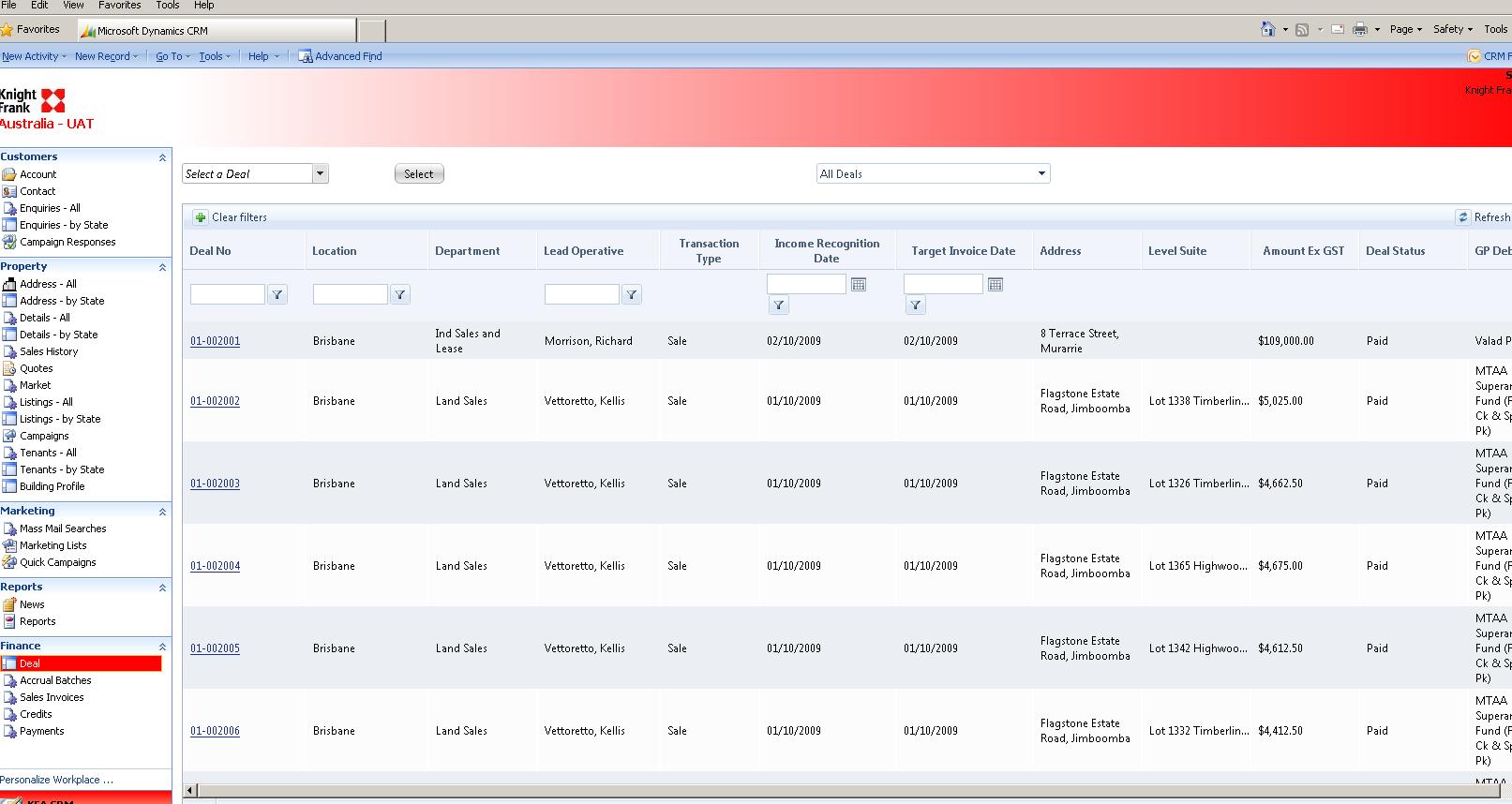

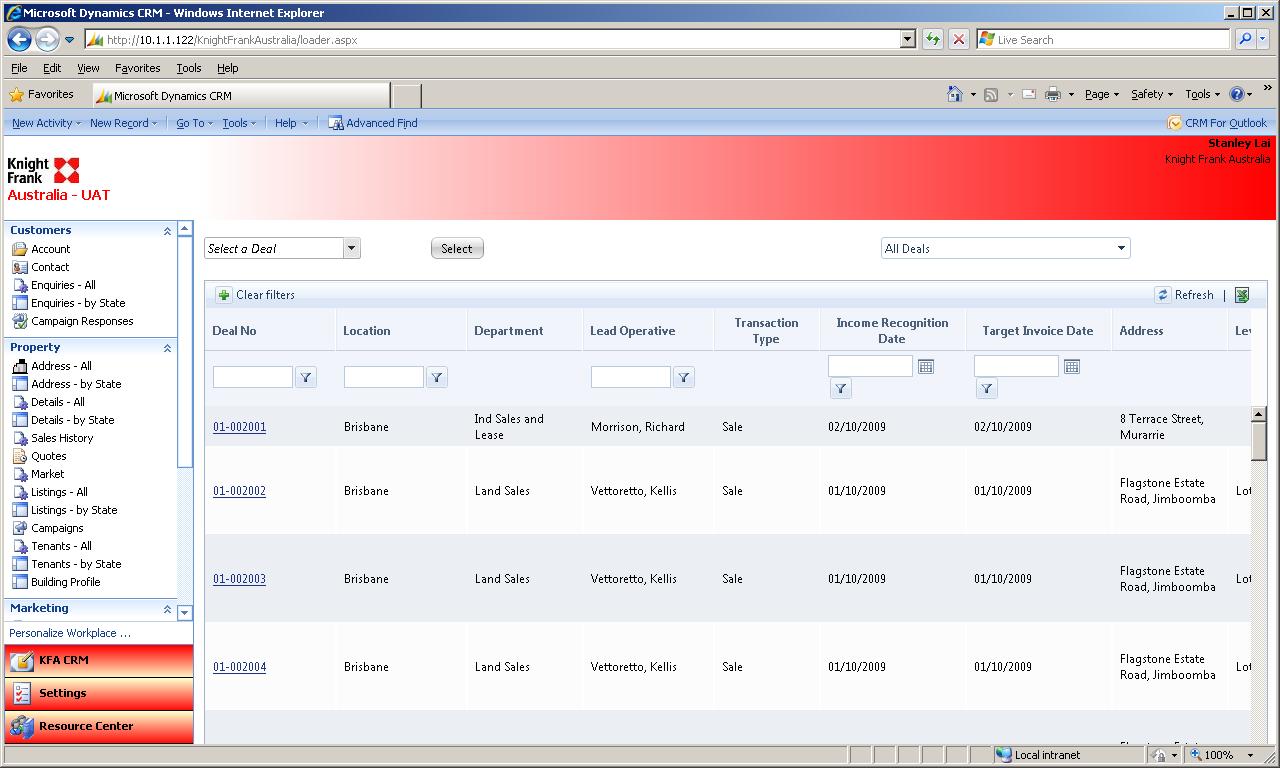

    Please see the attached screens.


    As you can see in screen 1 there is a horizontal bar showing with my current resolution of 1680 x 1050

    When I resize to 1280 x 768 no horizontal bar appears.

    Cheers
  19. Martin
    Admin
    Martin avatar
    833 posts

    Posted 29 Sep 2011 Link to this post

    Hello Stanley,

    I have already addressed the support ticket you have opened on the same topic. To make my post available for our community I am pasting it here as well:

    "I am afraid that I can not confirm whether in this particular scenario you have hit a bug or a limitation of the control. However, I am forwarding your report to our developers for further investigation. Once I have any feedback on the matter, I will get back to you with the details."

    Regards,
    Martin
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  20. Galin
    Admin
    Galin avatar
    526 posts

    Posted 06 Dec 2011 Link to this post

    Hi Stanley,

    I have tested the provided markup as well and as Martin said before, the problem is not replicated on our side. Based on your information and the screenshot I guess there is a problem with the page layout and any element on this position will be partially hidden.

    Also, could you try to repaint the RadGrid after every change of its dimensions?

    Please note that the bug described in this forum appears only when horizontal scroll is to extreme right and resize the browser window. It seems that your case is different.

    As I said above, we did not manage to replicate the issue that you are facing, so we cannot be sure what exactly causes it. Therefore, if it persists, please send us a small running project that we can use to reproduce the problem.

    Additionally, in order to avoid duplicate posts, I suggest that we continue the communication in the support ticket.

    All the best,
    Galin
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
  21. Stacie
    Stacie avatar
    2 posts
    Member since:
    Jan 2012

    Posted 27 Jun 2012 Link to this post

    Hello,

    I'm having the same issue as the initial post on:
    http://www.telerik.com/community/forums/aspnet-ajax/grid/while-using-frozen-column-horizontal-scroll-disappears-on-window-resize.aspx

    Is there a fix for this?
    When I'm using static headers and scroll to the right, the grid renders the first column and I'm unable
    to access the last column when scrolling all the way to the right.

    Need a fix ASAP in order to turn in our project.

    Thank you in advance.
  22. Tsvetina
    Admin
    Tsvetina avatar
    2481 posts

    Posted 02 Jul 2012 Link to this post

    Hi Carlos,

    Can you confirm that you replicate this behavior with the latest version of RadControls (Q2 2012)?

    Regards,
    Tsvetina
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  23. Stacie
    Stacie avatar
    2 posts
    Member since:
    Jan 2012

    Posted 02 Jul 2012 Link to this post

    I just ran the update within Visual Studio and it seems to have been fixed.
    That said, the performance is really slow. I do have data loaded dynamically as the user is scrolling.

    Is there way to improve performance? It's mostly anything to do with AJAX.

    Thank You.
  24. Tsvetina
    Admin
    Tsvetina avatar
    2481 posts

    Posted 05 Jul 2012 Link to this post

    Hi Carlos,

    There is probably too much content being rendered and the javascript needed to perform the scroll slows down the page. Things that you can consider for improving performance are limiting the number of columns displayed; if you display any script controls in the grid - replace them with simpler components or remove them entirely.

    All the best,
    Tsvetina
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  25. Pierre
    Pierre avatar
    2 posts
    Member since:
    Mar 2012

    Posted 12 Jul 2012 Link to this post

    Hi,

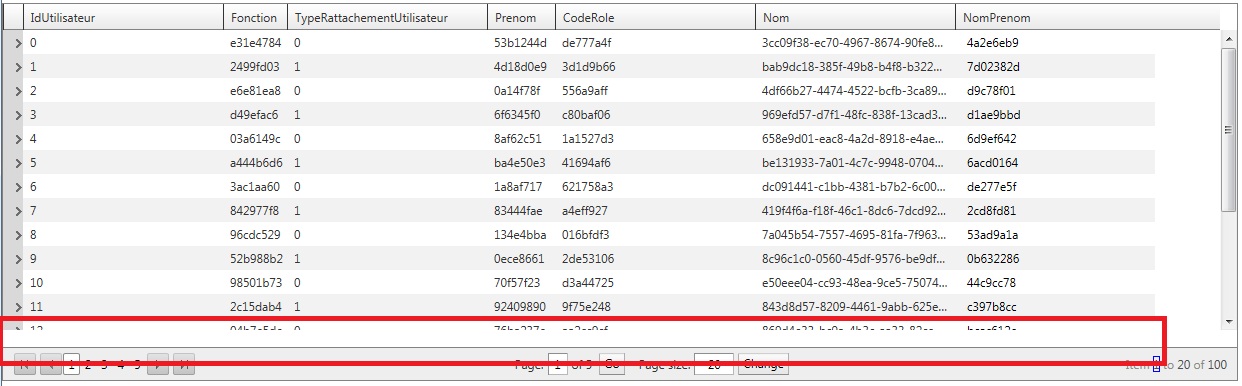

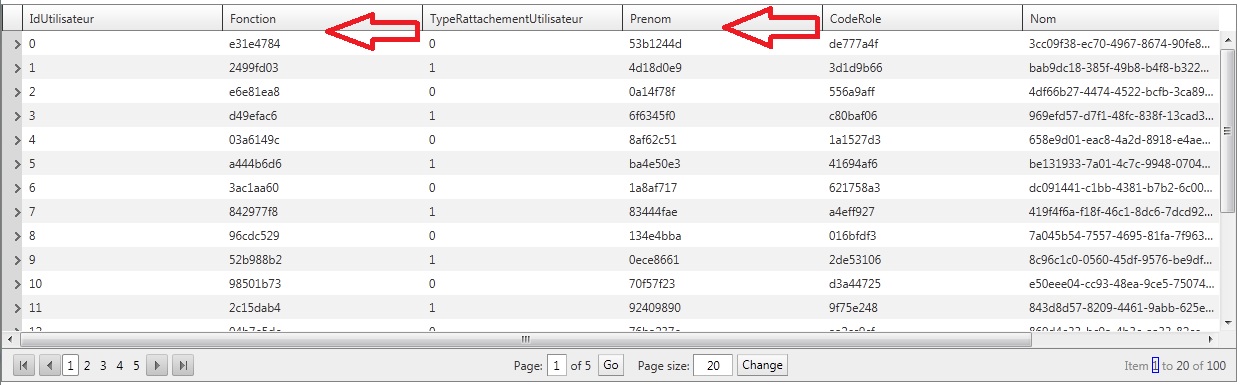

    I have the same issue (cf. print screen) with RadControls Q2 2012 (2012.2.607.40).
    I use the following ClientSettings :

    <ClientSettings AllowColumnsReorder="True" ColumnsReorderMethod="Reorder">
        <Resizing AllowColumnResize="True" ResizeGridOnColumnResize="True"></Resizing>
        <Scrolling AllowScroll="True" UseStaticHeaders="True" SaveScrollPosition="True" FrozenColumnsCount="2"></Scrolling>
    </ClientSettings>

    How to fix it ?

    Thank you in advance.
  26. Tsvetina
    Admin
    Tsvetina avatar
    2481 posts

    Posted 17 Jul 2012 Link to this post

    Hello Pierre,

    I tried to reproduce the issue on my side by copying your settings to a simple grid built using Q2 2012 but to no avail. Can you take a look at the sample attached to this message and let me know if there is anything missing in it?

    Regards,
    Tsvetina
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  27. Rock
    Rock avatar
    1 posts
    Member since:
    Jul 2012

    Posted 17 Jul 2012 Link to this post

    I can't still fix the horizantal scroll Disappears when window is at maximize beharior. I am using IE9 right. Can please help me?
  28. Pierre
    Pierre avatar
    2 posts
    Member since:
    Mar 2012

    Posted 17 Jul 2012 Link to this post

    Hi Tsvetina,

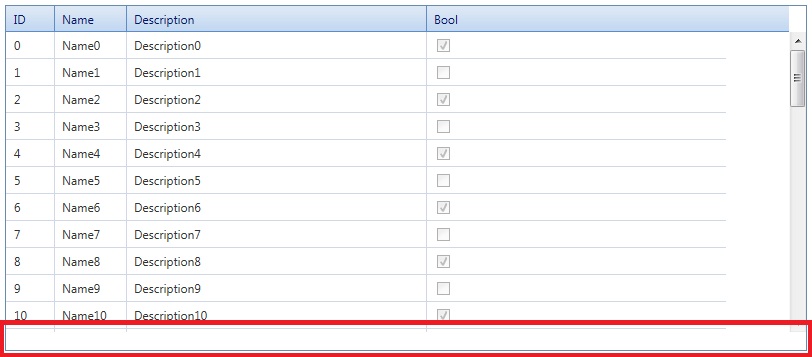

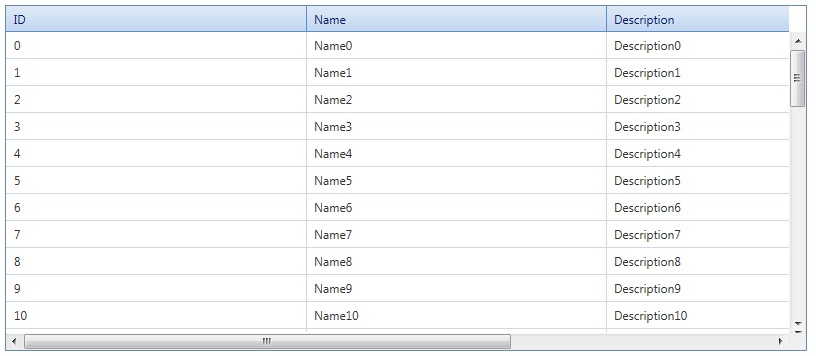

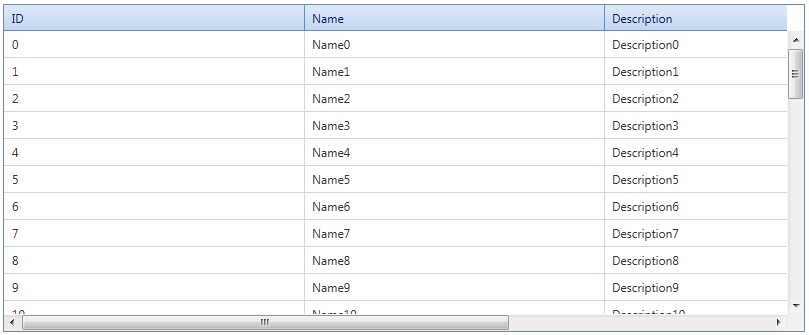

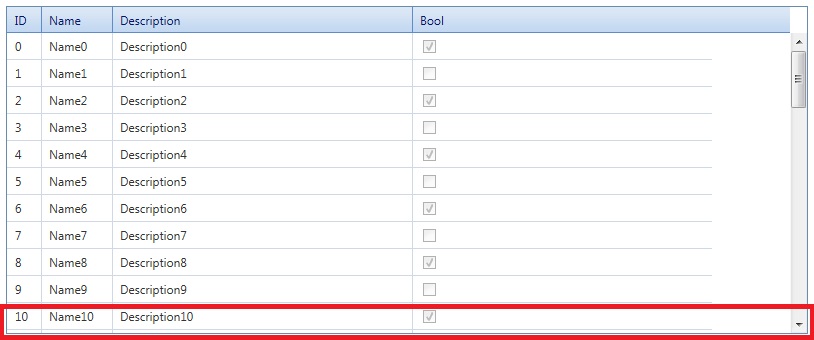

    I try to reproduce the issue with your sample and I succeed (cf. print screen).
    If FrozenColumnsCount have a value the bottom of grid isn't resize but if FrozenColumnsCount is missing it's fine.
  29. Richard
    Richard avatar
    3 posts
    Member since:
    Jul 2012

    Posted 18 Jul 2012 Link to this post

    Hi, I have the same problem as the original poster and I am using the latest version (2012.2.607.35).
    To reproduce:
    1. Run the app in a maximized window
    2. Make the window smaller so that the horizontal scroll bar appear
    3. Scroll to the right so that some columns are hidden
    4. Maximize the window: columns that were hidden are no longer visible

    I was able to reproduce it on IE 8 and IE 9 with compatibility view. On IE 9 without the compatibility view it seems to be better but there still was some strange display issue (when executing step #4 the columns that were hidden reappear but they are not aligned with the header). I could not reproduce it with Chrome and FireFox.

    I did a small project to reproduce the problem. Here is my code (there is no code on the server side):

    <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="GridResizeTest.WebForm1" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

    <head runat="server">
        <title></title>
        <script type="text/javascript" src="Scripts/jquery.js"></script>
        <script type="text/javascript">

            var props = null;

            function BindGridView() {

                var mtv = $find('RadGrid2').get_masterTableView();
                mtv.set_dataSource(props);
                mtv.dataBind();
            }


            function pageLoad(sender, args) {

                var propsStr =
                    '[{"Id":1000239080,"IsInternalProp":true,"MapReference":"A","Name":"Property 1","Type":"Mixed Use","Address":"Houston, TX, 77055","YearBuilt":"1926","YearReno":"N/A","Size":"72500","UnitsOfMeasure":"Sq Ft",' +
                        '"OccupancyPct":73.1034482758621,"OccupancyAsOfDate":"\/Date(1310446800000)\/","OriginationDate":"\/Date(1166076000000)\/","OriginalBalance":4900000,"CurrentBalance":4558242.42,"LTV":0.7538,' +
                        '"AppraisalDate":"\/Date(1199983239017)\/","MaturityDate":"06/11/2012","Status":"On Book (Funded)","Latitude":29.7970042,"Longitude":-95.4830243,"PropertyTypeId":1000000100,"QuotedMeasureId":0,"ActualStatus":"Funded/Watchlist"},' +
                    '{"Id":1011246890,"IsInternalProp":false,"MapReference":"B","Name":"Property 2","Type":"Mixed Use","Address":"4601 Washington Avenue, Houston, TX, 77007","YearBuilt":"2009","YearReno":"N/A","Size":"49461",' +
                        '"UnitsOfMeasure":"Sq Ft","OccupancyPct":88.94,"OccupancyAsOfDate":"\/Date(1314853200000)\/","OriginationDate":"\/Date(1320123600000)\/","OriginalBalance":10430021.66,"CurrentBalance":10878245.18,"LTV":0,' +
                        '"AppraisalDate":"\/Date(1320732000000)\/","MaturityDate":"11/05/2021","Status":"Active","Latitude":29.7703016,"Longitude":-95.4076239,"PropertyTypeId":1000000100,"QuotedMeasureId":0,"ActualStatus":"Performing"}]';
                props = $.parseJSON(propsStr);

                BindGridView();

            }

            function RadGrid2_Command(sender, args) {
            }

        </script>
    </head>

    <body>
        <form id="form1" runat="server">
        <asp:scriptmanager runat="server"></asp:scriptmanager>
        <div id="divGrid" style="width:100%">
            <telerik:RadGrid ID="RadGrid2" runat="server" Width="100%" >
                <MasterTableView DataKeyNames="ID" TableLayout="Fixed" Width="1275px">
                    <Columns>
                        <telerik:GridBoundColumn UniqueName="PropertyId" DataField="Id" Visible="false" />
                        <telerik:GridBoundColumn UniqueName="IsInternalProp" DataField="IsInternalProp" Visible="false" />
                        <telerik:GridImageColumn UniqueName="TreppIcon" SortExpression="IsInternalProp" HeaderText="Src" HeaderStyle-Width="30px" ImageUrl="~/images/clear.gif" />
                        <telerik:GridBoundColumn UniqueName="MapReference" DataField="MapReference" HeaderImageUrl="~/images/google-marker.png" SortExpression="MapReference" HeaderStyle-Width="30px" />
                        <telerik:GridImageColumn UniqueName="HideProperties" HeaderText="" HeaderStyle-Width="30px" ImageUrl="~/images/clear.gif" />
                        <telerik:GridBoundColumn UniqueName="Name" DataField="Name" HeaderText="Property" SortExpression="Name" HeaderStyle-Width="120px" />
                        <telerik:GridBoundColumn UniqueName="PropertyType" DataField="Type" HeaderText="Type" SortExpression="Type" HeaderStyle-Width="70px" />
                        <telerik:GridBoundColumn UniqueName="Address" DataField="Address" HeaderText="Address" SortExpression="Address" HeaderStyle-Width="140px" />
                        <telerik:GridBoundColumn UniqueName="YearBuilt" DataField="YearBuilt" HeaderText="Built" SortExpression="YearBuilt" HeaderStyle-Width="50px" />
                        <telerik:GridBoundColumn UniqueName="YearReno" DataField="YearReno" HeaderText="Reno" SortExpression="YearReno" HeaderStyle-Width="50px" />
                        <telerik:GridBoundColumn UniqueName="PropSize" DataField="Size" HeaderText="Size" SortExpression="Size" HeaderStyle-Width="80px" />
                        <telerik:GridBoundColumn UniqueName="OccPct" DataField="OccupancyPct" HeaderText="Occ %" SortExpression="OccupancyPct" HeaderStyle-Width="60px" DataFormatString="{0:N1}%" />
                        <telerik:GridBoundColumn UniqueName="OccupancyAsOfDate" DataField="OccupancyAsOfDate" HeaderText="Occ As Of" SortExpression="OccupancyAsOfDate" HeaderStyle-Width="80px" DataFormatString="{0:MM/dd/yyyy}" />
                        <telerik:GridBoundColumn UniqueName="OriginationDate" DataField="OriginationDate" HeaderText="Orig Date" SortExpression="OriginationDate" HeaderStyle-Width="80px" DataFormatString="{0:MM/dd/yyyy}"/>
                        <telerik:GridBoundColumn UniqueName="OriginalAmount" DataField="OriginalBalance" HeaderText="Orig Bal" SortExpression="OriginalBalance" HeaderStyle-Width="85px" DataFormatString="{0:C0}" />
                        <telerik:GridBoundColumn UniqueName="CurrentBalance" DataField="CurrentBalance" HeaderText="Curr Bal" SortExpression="CurrentBalance" HeaderStyle-Width="85px" DataFormatString="{0:C0}" />
                        <telerik:GridBoundColumn UniqueName="LTV" DataField="LTV" HeaderText="LTV" SortExpression="LTV" HeaderStyle-Width="65px" DataFormatString="{0:P1}" />
                        <telerik:GridBoundColumn UniqueName="AppraisalDate" DataField="AppraisalDate" HeaderText="Appraisal" SortExpression="AppraisalDate" HeaderStyle-Width="80px" DataFormatString="{0:MM/dd/yyyy}" />
                        <telerik:GridBoundColumn UniqueName="MaturityDate" DataField="MaturityDate" HeaderText="Maturity" SortExpression="MaturityDate" HeaderStyle-Width="80px" />
                        <telerik:GridBoundColumn UniqueName="LoanStatus" DataField="Status" HeaderText="Status" SortExpression="Status" HeaderStyle-Width="60px"/>
                    </Columns>
                </MasterTableView>
                <ClientSettings>
                    <ClientEvents OnCommand="RadGrid2_Command" />
                    <Scrolling AllowScroll="true" FrozenColumnsCount="6" UseStaticHeaders="true" />
                </ClientSettings>
            </telerik:RadGrid>

        </div>
        </form>
    </body>
    </html>

    Am I missing something?
    Thanks,
    Richard.
  30. Galin
    Admin
    Galin avatar
    526 posts

    Posted 23 Jul 2012 Link to this post

    Hi Pierre

    Following your scenario it seems that the scrollbar disappearing is expected. As you showed in the print screen, this happens without frozen columns too.
    However, the problem here is in the additional empty space; therefore I am forwarding this issue to our developers so they could further research on the presented issue.
    Thank you for reporting us this problem.

    Richard,

    On RadGrid resizing, there is no scrolling event and this is the reason for the new columns to not appear in the additional empty space.  This issue will also be forwarded to our dev team for further investigation.
    Thank you for your cooperation and reporting this to us.
    In the meantime, as a possible workaround I would suggest you to force scrolling on window resizing.
    I hope this helps.

    Regards,

    Galin
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
Back to Top
