Upload files inside a grid does not send files to controller

[Divya]

Hello,

I am using upload as an editor template inside grid. But the actual file selected is not being passed to the controller. The controller save method always shows 0 files. Am I missing something here?

Please find the code snippets below.

Grid:

@(Html.Kendo().Grid<DocumentViewEditModel>
    ().Name("Documents").Columns(c =>
    {
    c.Command(command => { command.Edit(); command.Destroy(); }).Width(220).Visible(@readOnlyForm);
    c.Bound(d => d.DocumentId).Hidden(true);
    c.Bound(d => d.ProjectId).Hidden(true);
    c.Bound(d => d.ScagdocumentId).Title("SCAG Document").Width(140);
    c.ForeignKey(d => d.DocumentCategoryId, (SelectList)ViewData["DocumentCategoryList"]).Title("Document Status *").Width(150);
    c.ForeignKey(d => d.NoticeTypeId, (SelectList)ViewData["NoticeTypeList"]).Title("Notice Type *").Width(220);
    c.ForeignKey(d => d.EirtypeId, (SelectList)ViewData["DocumentTypeList"]).Title("Document Type *").Width(250);
    c.Bound(d => d.DocumentDescription).Title("Project Description *").Width(350).HtmlAttributes(new { style = "white-space: pre-line;" });
    c.Bound(d => d.LogDate).Title("Date Received *").Format("{0: MM/dd/yyyy}").Width(170);
    c.Bound(d => d.DueDate).Title("Due Date for Comment").Format("{0: MM/dd/yyyy}").Width(180);
    c.Bound(d => d.DateModified).Title("Date Modified").Format("{0: MM/dd/yyyy}").Width(120);
    c.Bound(d => d.ModifiedBy).Title("Modified By").Width(130);
    c.Bound(d => d.DocumentUploadEditor).EditorTemplateName("DocumentUploadEditor").Title("Upload").ClientTemplate("#:Filename#").Width(150);
    c.Command(command => command.Custom("View").Click("navigateToOpen")).Width(190);
    })
    .DataSource(d => d
    .Ajax()
    .Events(events => events.Error("error_handler"))
    .Read(r => r.Action("GetDocuments", "Projects").Data("getAdditionalData"))
    .Update(u => u.Action("UpdateDocuments", "Projects"))
    .Destroy(x => x.Action("DeleteDocuments", "Projects"))
    .Create(c => c.Action("CreateDocuments", "Projects").Data("getAdditionalData"))
    .PageSize(10)
    .Model(m =>
    {
    m.Id(d => d.DocumentId);
    m.Field("DocumentCategoryId", typeof(int));
    m.Field("NoticeTypeId", typeof(int));
    m.Field("EirtypeId", typeof(int));
    m.Field(d => d.DocumentDescription);
    m.Field(d => d.LogDate);
    m.Field(d => d.DueDate);
    m.Field("ScagdocumentId", typeof(string)).Editable(false);
    m.Field(d => d.ModifiedBy).Editable(false);
    m.Field(d => d.DateModified).Editable(false);
    m.Field("ProjectId", typeof(int));
    })
    )
    .Pageable()
    .Sortable()
    .Scrollable(s => s.Virtual(GridVirtualizationMode.Columns).Height("auto"))
    .HtmlAttributes(new { style = "width:1420px" })
    .Editable(e => e.Mode(GridEditMode.InLine))
    .ToolBar(toolbar => { if (@readOnlyForm) { toolbar.Create(); } })
    )



Editor Template:

@(Html.Kendo().Upload()
        .Name("DocumentUploadEditor")
        .Async(a => a
            .Save("UploadNoticeObjects", "Projects")
            .AutoUpload(true)
        )

        .Events(e => e.Upload("onNoticeUpload")
                .Success("onSuccess"))

 )



Controller:

public async Task<IActionResult> UploadNoticeObjects(IEnumerable<IFormFile> DocumentUploadEditor, string noticeDocID, string projectNum, string projectTitle, string projectType, string documentType, string noticeType)
        {

            if (DocumentUploadEditor != null)
            {
                foreach (var file in DocumentUploadEditor)
                {
                    var fileContent = ContentDispositionHeaderValue.Parse(file.ContentDisposition);

                    // Some browsers send file names with full path. Only interested in the file name.
                    var fileName = Path.GetFileName(fileContent.FileName.ToString().Trim('"'));

                    using (var memoryStream = new MemoryStream())
                    {
                        await file.CopyToAsync(memoryStream);
                        await _uploadFilesManager.UploadNoticeToSharePoint(fileName, memoryStream, NoticesMetadata,"", "").ConfigureAwait(false);
                    }
                }
            }

            // Return an ok to signify success.
            return Ok();
        }

[Divya]

Second Approach worked for me.

Thanks!!

[Mihaela]

Hello Divya,

Since I have reviewed the described scenario and answered you in a support thread, I will post the same here in case someone else has the same question:

I examined the provided code snippets, and noticed that when uploading files for a specified Grid record, they are sent to the server as a complex object:

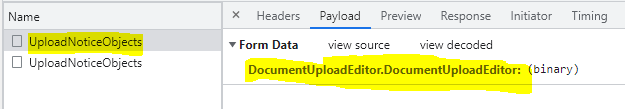

(the payload of the Upload request)

For this reason, the IEnumerable<IFormFile> DocumentUploadEditor collection is empty.

To access the uploaded files through the nested property, I would suggest any of the following approaches:

• Use the "Request.Form" to get the Form Data payload:


public async Task<IActionResult> UploadNoticeObjects(string noticeDocID, string projectNum, string projectTitle, string projectType, string documentType, string noticeType)
{
   var getFilesToUplaod = Request.Form;
  ...
}



• Create a property of type "IEnumerable<IFormFile>" and pass it in the Action method as per the example below:


public class GridUploadFiles
{
  public IEnumerable<IFormFile> DocumentUploadEditor { get; set; }
}

public async Task<IActionResult> UploadNoticeObjects(GridUploadFiles DocumentUploadEditor, string noticeDocID, string projectNum, string projectTitle, string projectType, string documentType, string noticeType)
{
  foreach (var file in DocumentUploadEditor.DocumentUploadEditor)
  {
    ...
   }
  ...
}

I hope any of these examples will help you to resolve the issue.



Regards, Mihaela Progress Telerik

[Mrudula]

how to send filename from controller back in .net core. I need to update models filename in onsucess method. Any nonblank return value results in File upload failure.

[Mihaela]

You could return a Json as per the example below:

public async Task<IActionResult> UploadNoticeObjects(GridUploadFiles DocumentUploadEditor, string noticeDocID, string projectNum, string projectTitle, string projectType, string documentType, string noticeType)
{
  string uploadedFileName = "";
  foreach (var file in DocumentUploadEditor.DocumentUploadEditor)
  {
    var fileContent = ContentDispositionHeaderValue.Parse(file.ContentDisposition);
    var fileName = Path.GetFileName(fileContent.FileName.ToString().Trim('"'));
    uploadedFileName = fileName;
    ...
   }
  return Json(new { status = "OK", FileName = uploadedFileName });
}

//View
<script>
    function onSuccess(e) {
        console.log(e.response.FileName);  // Get the name of the uploaded file.
    }
</script>

Let me know if this suggestions works for you.
