Trouble setting second level grouping across multiple fields

1 Answer 52 Views
Grouping Report Designer (standalone) Table
Stephen
Top achievements
Rank 1
Stephen asked on 15 Aug 2024, 04:05 PM

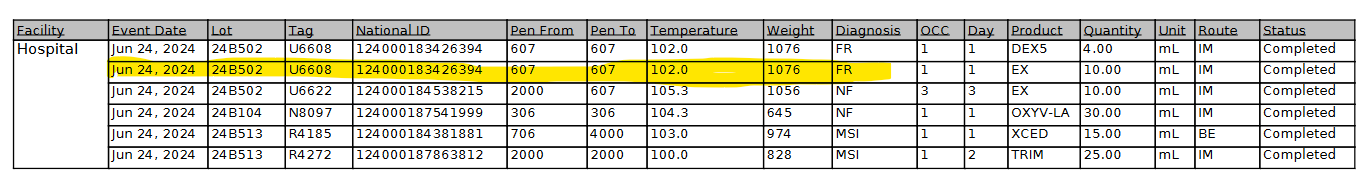

Please see attached image.  I'm having trouble setting second level grouping across multiple fields/columns.

I'm successfully grouping on the facility.  However, I need to group (not repeat) the highlighted values.

I'm able to do this be controlling the data to passed in to the report, but the result is just empty cells, so it looks like data is missing.

I need to achieve this through the report designer so the grid cell lines are not repeated for the second level grouping (like it does for the facility)?

How do I achieve this through the designer?  Step instructions please?

1 Answer, 1 is accepted

Sort by
1
Ivet
Telerik team
answered on 20 Aug 2024, 01:31 PM

Hello Stephen,

Thank you for the screenshot.

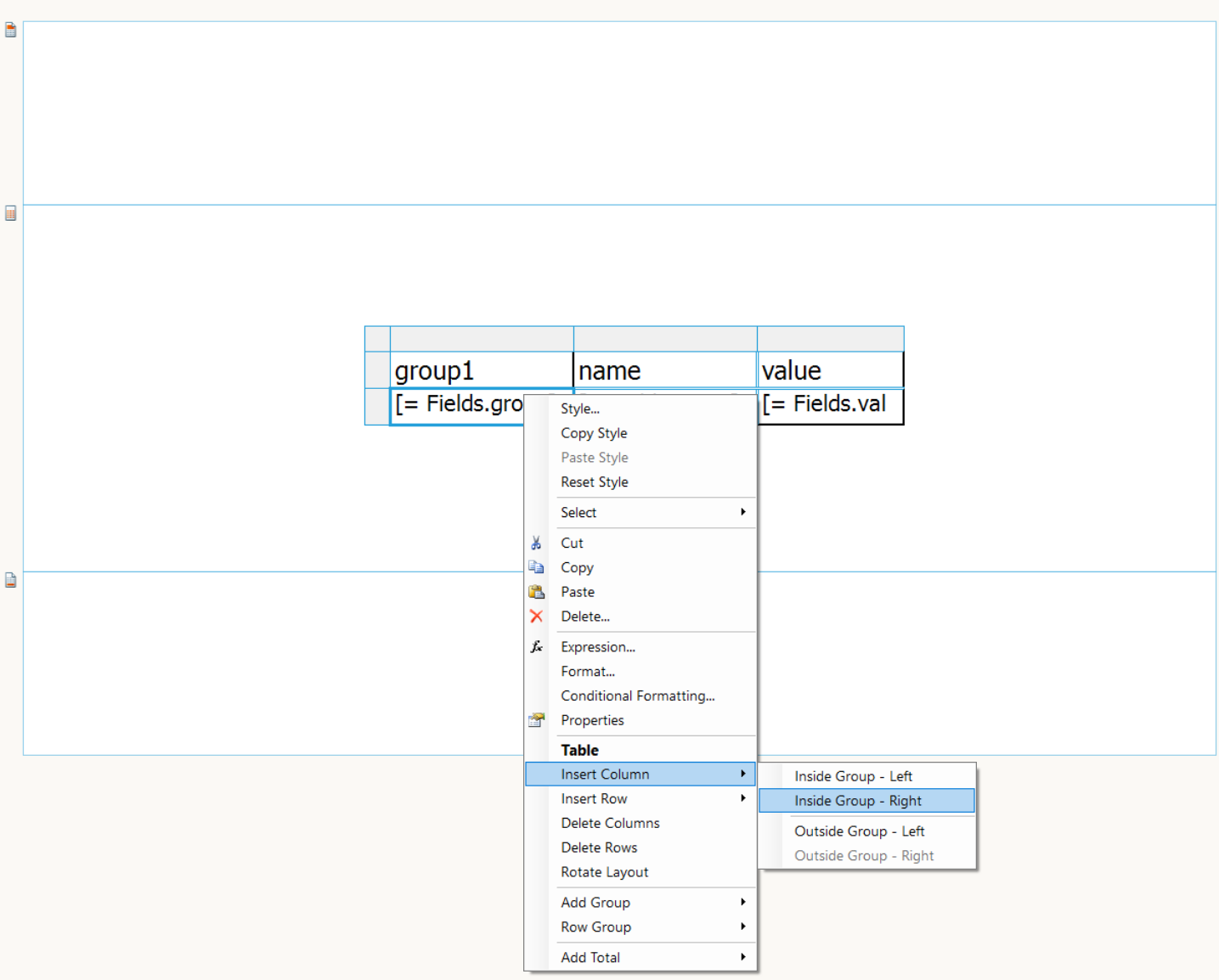

You need to re-add the columns you don't want to repeat in the table group that you have created like in the sample picture below:

If this group doesn't work for you, you can look at the following article for instructions on how to add more parent/child groups - Add a parent or child row/column group to a Table data item using Report Designer.

You may need to make a child row group of the original group and add the columns to it, whether that will be necessary depends on the data.

Regards,
Ivet
Progress Telerik
