[Solved] totals not visible in IE9 compatibility mode

8 Answers 129 Views

Grid

This is a migrated thread and some comments may be shown as answers.

MBEN asked on 27 Nov 2013, 12:17 AM



I have some hyperlinks in the footer of the radgrid.

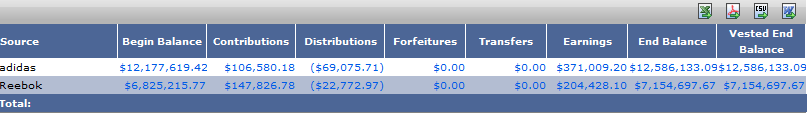

I am running IE 9. They show up fine in IE9 but when i run in compatibility mode they are no longer visible. This might be a problem for our users who are running older versions of IE.

Below is my grid declaration:

<telerik:radgrid id="rgBalances" runat="server" cellpadding="0" cellspacing="0" borderwidth="0"

gridlines="None" allowpaging="True" allowsorting="True" datasourceid="_dataSrcBalances"

pagesize="15" enablesortingandpagingcallbacks="false" autogeneratecolumns="false"

allowautomaticupdates="false" allowautomaticinserts="false" enablelinqexpressions="false"

allowfilteringbycolumn="false" onprerender="rgBalances_PreRender" onitemcommand="rgBalances_ItemCommand"

allowautomaticdeletes="false" skin="MBen" enableembeddedskins="false" onitemdatabound="rgBalances_ItemDataBound"

onitemcreated="rgBalances_ItemCreated" allowcustompaging="false" width="100%"

imagespath="../../App_Themes/MBen/Grid" showfooter="true">

<MasterTableView TableLayout="Fixed" HierarchyDefaultExpanded="true" CommandItemDisplay="Top"

Name="DivisionBalance" DataKeyNames="DivisionID" EnableNoRecordsTemplate="true"

PagerStyle-AlwaysVisible="true">

<CommandItemSettings ShowAddNewRecordButton="false" ShowRefreshButton="false" ShowExportToExcelButton="true"

ExportToExcelText="" ExportToCsvText="" ExportToPdfText="" ExportToWordText=""

ShowExportToPdfButton="true" ShowExportToWordButton="true" ShowExportToCsvButton="true" />

<NoRecordsTemplate>

<div style="color: Red; font-size: 12px; font-family: Verdana, Arial, Helvetica, sans-serif;

font-weight: bold">

<br />

Please select a plan to show activity for the specific plan.

</div>

</NoRecordsTemplate>

<HeaderStyle HorizontalAlign="Center" />

<ItemStyle HorizontalAlign="Right" />

<AlternatingItemStyle HorizontalAlign="Right" />

<Columns>

<telerik:GridTemplateColumn UniqueName="AccountName" HeaderText="Source" SortExpression="AccountName"

HeaderStyle-Width="15%" HeaderStyle-HorizontalAlign="Left" ItemStyle-HorizontalAlign="Left">

<ItemTemplate>

<%# Eval("AccountName")%>

</ItemTemplate>

<FooterTemplate>

<asp:Label ID="lblTotal" runat="server" Text="Total:" ForeColor="White" Font-Bold="true"></asp:Label>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="BeginBalance" HeaderText="Begin Balance"

ItemStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" HeaderStyle-Width="11%"

SortExpression="BeginBalanceDollars" AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkBeginBalance" runat="server" Text='<%# Eval("BeginBalanceDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkBeginBalanceTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Contributions" HeaderText="Contributions"

ItemStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" SortExpression="ContributionDollars"

HeaderStyle-Width="11%" AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkContributions" runat="server" Text='<%# Eval("ContributionDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkContributionsTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Distributions" HeaderText="Distributions"

ItemStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" SortExpression="DistributionDollars"

HeaderStyle-Width="11%" AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkDistributions" runat="server" Text='<%# Eval("DistributionDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkDistributionsTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Forfeitures" HeaderText="Forfeitures" ItemStyle-HorizontalAlign="Right"

FooterStyle-HorizontalAlign="Right" SortExpression="ForfeitureDollars" HeaderStyle-Width="10%"

AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkForfeitures" runat="server" Text='<%# Eval("ForfeitureDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkForfeituresTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Transfers" HeaderText="Transfers" ItemStyle-HorizontalAlign="Right"

FooterStyle-HorizontalAlign="Right" SortExpression="TransferDollars" HeaderStyle-Width="10%"

AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkTransfers" runat="server" Text='<%# Eval("TransferDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkTransfersTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Earnings" HeaderText="Earnings" ItemStyle-HorizontalAlign="Right"

FooterStyle-HorizontalAlign="Right" SortExpression="Earnings" HeaderStyle-Width="10%"

AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkEarnings" runat="server" Text='<%# Eval("Earnings")%>'></asp:HyperLink>

<div style="left: -100px;">

<asp:Panel ID="earningsDiv" runat="server" CssClass="hide">

<asp:Literal ID="earningsDivText" runat="server" /></asp:Panel>

</div>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkEarningsTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="EndBalance" HeaderText="End Balance" ItemStyle-HorizontalAlign="Right"

FooterStyle-HorizontalAlign="Right" HeaderStyle-Width="11%" SortExpression="EndBalanceDollars"

AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkEndBalance" runat="server" Text='<%# Eval("EndBalanceDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkEndBalanceTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="EndBalanceVested" HeaderText="Vested End Balance"

ItemStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" HeaderStyle-Width="11%"

SortExpression="EndBalanceVestedDollars" AllowFiltering="false">

<ItemTemplate>

<asp:HyperLink ID="linkEndBalanceVested" runat="server" Text='<%# Eval("EndBalanceVestedDollars")%>'></asp:HyperLink>

</ItemTemplate>

<FooterTemplate>

<asp:HyperLink ID="linkEndBalanceVestedGrandTotal" runat="server"></asp:HyperLink>

</FooterTemplate>

</telerik:GridTemplateColumn>

<telerik:GridBoundColumn UniqueName="Dividend" DataField="DividendDollars" Display="false">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn UniqueName="Appreciation" DataField="AppreciationDollars"

Display="false">

</telerik:GridBoundColumn>

</Columns>

</MasterTableView>

<ExportSettings ExportOnlyData="true" IgnorePaging="true" FileName="Activity" OpenInNewWindow="true">

<Pdf PaperSize="A4" PageLeftMargin="5px" PageRightMargin="5px" PageWidth="297mm"

PageHeight="210mm" />

</ExportSettings>

</telerik:radgrid>

8 Answers, 1 is accepted

answered on 27 Nov 2013, 12:33 AM


Update: I forgot to add that I recently upgraded to the latest telerik controls and that's whn i started seeing the issue.
I don't know if this helps but with the earlier controls I had all the columns that have Display="false" set as Visible="false". I started running into issues with that so I had to change the visible property to display and set that to false instead.

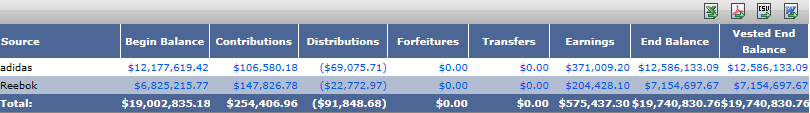

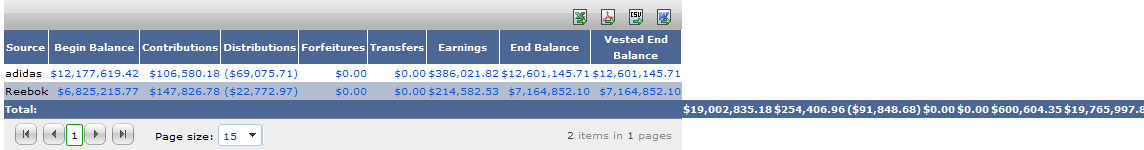

When I view the css in the developer toold I noticed that the footer for the first column is spanning across 9 columns of the grid that are displayed (colspan="9"). I have not specified that anywhere. Why is it spanning across 9 cells? If I change my TableLayout="Auto" then I see the footers as in the attached screenshot.
Please help...I need to fix this!

answered on 29 Nov 2013, 09:34 PM

sample-footer.zip

Hello,

I followed your scenario and prepared a sample runnable project using dummy data and it is working without problems. Give it a try and see how it goes on your end.

Regards,
Pavlina
Telerik

If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.

answered on 10 Mar 2014, 10:41 PM



attachements not going in earlier posts.

answered on 14 Apr 2014, 06:23 PM

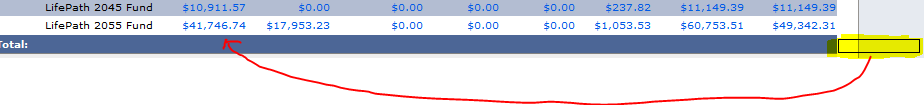

I upgraded to latest controls ie, 2014 controls but I am still facing the issue.
