TimelineView Horizontal Scrolling

12 posts, 1 answers
  1. Paige Cook
    Paige Cook avatar
    57 posts
    Member since:
    Sep 2007

    Posted 04 Jun 2008 Link to this post

    Is it possible to enable horizontal scrolling of the RadScheduler in TimelineView. For example, I would like to setup the TimelineView with 24 slots each with a 1 hour duration and then be able to set the width property on the RadScheduler such that the first 10 hours appear and the user would need to scroll to see the remaining 14 hours in the day.

    I tried to put the RadScheduler inside of a parent div with a specified width (900px) and set the width of the RadScheduler wider (1400px) , but the Timeline table was not contained within the parent div. Is it possible to do this?

    Thanks.
  2. T. Tsonev
    Admin
    T. Tsonev avatar
    2817 posts

    Posted 05 Jun 2008 Link to this post

    Hello Paige,

    Unfortunately, horizontal scrolling is not supported "out of the box" just yet. Regarding the workaround with the containing div, I believe that you need to add overflow-x:scroll to the div style:

    <div style="width: 400px; overflow-x: scroll;">...</div>

    Sincerely yours,
    Tsvetomir Tsonev
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  3. Paige Cook
    Paige Cook avatar
    57 posts
    Member since:
    Sep 2007

    Posted 10 Jun 2008 Link to this post

    Thanks Tsvetomir,

    However, I can only make this work within your Live Demos. If I add the style to the div that surrounds the RadScheduler control on the Timeline example (Live Demos\Scheduler\Examples\TimelineView\DefaultCs.aspx) It works as expected. If I apply this to another page with only a RadScheduler it does not work. For example I used the DragAndDrop demo app from this post and when I wrapped a div with a style="width:100px; overflow-x:scroll;" property around the control it did not work.

    I cannot seem to figure out what is the difference. Any help would be appreciated.

    Thanks.
  4. Answer
    T. Tsonev
    Admin
    T. Tsonev avatar
    2817 posts

    Posted 13 Jun 2008 Link to this post

    Hi,

    This is actually a bug in IE. The div needs to be positioned to work around this. For example:

    <div style="float: left;"
        <div style="width:200px; overflow-x:scroll; position: relative;"
            <telerik:RadScheduler ID="RadScheduler1" runat="server" ProviderName="TestSchedulerProvider" Width="700px"
            </telerik:RadScheduler>
        </div>
    </div>


    Best wishes,
    Tsvetomir Tsonev
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  5. Paige Cook
    Paige Cook avatar
    57 posts
    Member since:
    Sep 2007

    Posted 17 Jun 2008 Link to this post

    Positioning the div worked. Thank You.
  6. Paige Cook
    Paige Cook avatar
    57 posts
    Member since:
    Sep 2007

    Posted 26 Jun 2008 Link to this post

    Just noticed that this does not work in IE7 or FF3. Works just fine in IE6 however, which is what I was originally using.

    - Paige
  7. Peter
    Admin
    Peter avatar
    6637 posts

    Posted 26 Jun 2008 Link to this post

    Hi Paige,

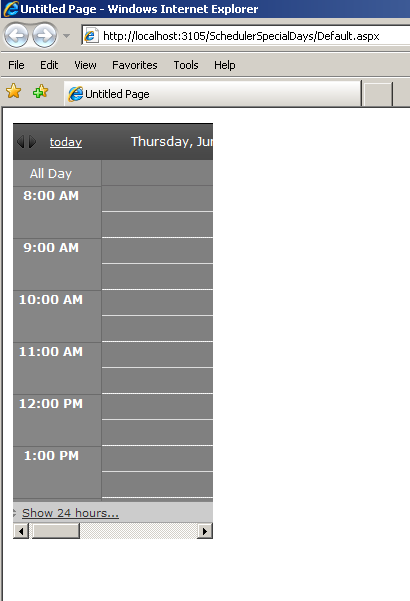

    That's strange. The suggested approach worked as expected on our side (please, see the attached screenshot). What could we be missing?

    Regards,
    Peter
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  8. Paige Cook
    Paige Cook avatar
    57 posts
    Member since:
    Sep 2007

    Posted 26 Jun 2008 Link to this post

    Peter,

    I do not see a screen shot attachment to your last message. But I will try this out with one of the live demo pages, as I am guessing it probably something related to the markup I am using on my current test page.

    Thanks.
  9. Peter
    Admin
    Peter avatar
    6637 posts

    Posted 27 Jun 2008 Link to this post


    Apologies for the missing screenshot. It should be attached now. Also, let us know how your testing goes with this case.


    Regards,
    Peter
    the Telerik team

    Instantly find answers to your questions at the new Telerik Support Center
  10. Paige Cook
    Paige Cook avatar
    57 posts
    Member since:
    Sep 2007

    Posted 24 Jul 2008 Link to this post

    Sorry for the long delay. I was able to get this working with IE7 and FF. It was an issue with my markup.

    Thank you for the assistance.
  11. Joe
    Joe avatar
    3 posts
    Member since:
    Jul 2011

    Posted 22 Jul 2011 Link to this post

    I cannot find a way to implement horizontal scrolling in timeline view. is this possible yet?
  12. Peter
    Admin
    Peter avatar
    6637 posts

    Posted 24 Jul 2011 Link to this post

    Hi Joe,

    Try setting the ColumngWidth property (in pixels) and let me know if this helps.

    Best wishes,
    Peter
