Timeline resources vertical formatting issue

6 posts, 0 answers
  1. Daniel Tharp
    Daniel Tharp avatar
    13 posts
    Member since:
    May 2006

    Posted 19 Apr 2011 Link to this post

    Please refer to the demo link below and do the following.

    http://demos.telerik.com/aspnet-ajax/scheduler/examples/resourceheadertemplates/defaultcs.aspx

    Set Grouping direction: Vertical
    Select the Timeline View

    As you can see, the formatting of the table cells and rows get all screwed up after just 2 resources. I am in currently in firefox. Is there a way to fix this. This has been an issue for a long time with the RadScheduler and I was wondering if it is ever going to be addressed. It is the only thing holding me back from using this control in my application. It seems to be a pretty standard piece of functionality since you can accomplish this horizontally.
  2.
  3. Veronica
    Admin
    Veronica avatar
    1213 posts

    Posted 22 Apr 2011 Link to this post

    Hi Daniel Tharp,

    Thank you for finding this bug in our demo. We'll do the needful to fix this.

    I've added points to your collection for finding the issue.

    Greetings,
    Veronica Milcheva
    the Telerik team

    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.

  5. Daniel Tharp
    Daniel Tharp avatar
    13 posts
    Member since:
    May 2006

    Posted 26 Apr 2011 Link to this post

    Is there a list I can be added to that will notify me when this issue is fixed or is there a hot fix you can send me so I don't have to find a new control.

    thanks
  7. Veronica
    Admin
    Veronica avatar
    1213 posts

    Posted 29 Apr 2011 Link to this post

    Hello Daniel Tharp,

    I'll contact to notify you as soon as the issue is solved.

    Best wishes,
    Veronica Milcheva
    the Telerik team

    Browse the vast support resources we have to jump start your development with RadControls for ASP.NET AJAX. See how to integrate our AJAX controls seamlessly in SharePoint 2007/2010 visiting our common SharePoint portal.

  8.
  9. MFitzpatrick
    MFitzpatrick avatar
    24 posts
    Member since:
    Jul 2010

    Posted 08 Dec 2011 Link to this post

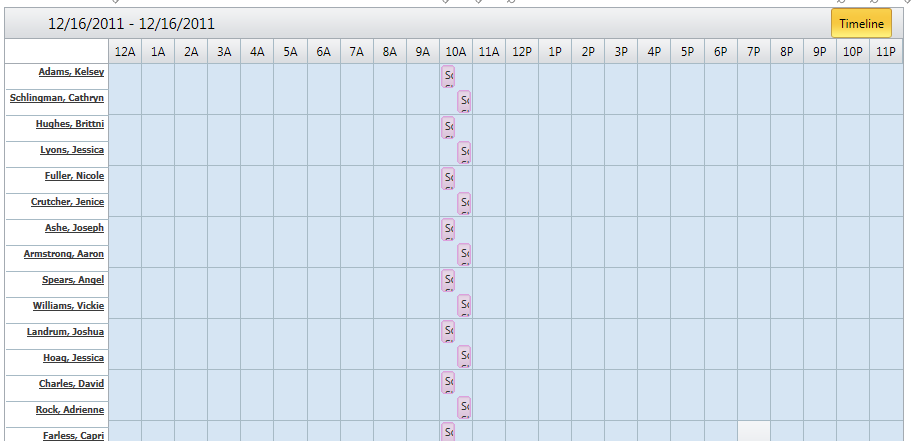

    Has this issue been addressed? I am running into a similar issue. You can see in the attached image that the resource headers do not line up with their associated appointments.

    Thanks

    Mike
  11. Plamen
    Admin
    Plamen avatar
    3049 posts

    Posted 12 Dec 2011 Link to this post

    Hi Mfitzpatrick,

    This bug has not been fixed yet but here is a possible workaround with jQuery that is improving the misalignment and can work for you as a temporary solution:
    function pageLoad() {
          var $ = $telerik.$;
          var rsVerticalHeaderTableTD = $(".rsVerticalHeaderTable th");
          var rsAllDayTableTD = $(".rsAllDayTable tr");
          var index = 0;
          rsAllDayTableTD.each(function(a) {

              var h = $(this).height()-1;

              rsVerticalHeaderTableTD[index].style.cssText ="height:"+h+"px";
              index++;
          });
      }

    Hope this will help.

    Kind regards,
    Plamen Zdravkov
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
