Timeline Resource Grouping

[Timothy Kruszewski]

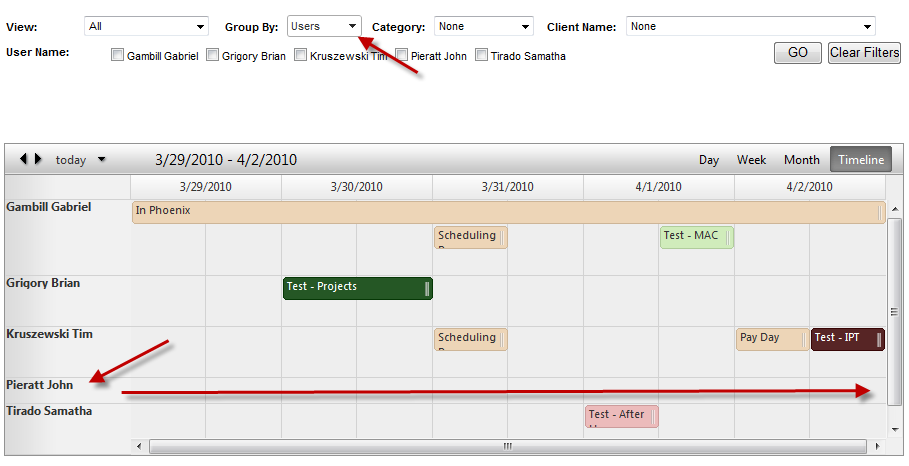

I want to know if it's possible to exclude resources when doing a group by if there are no appointments present for a particular resource.  Please see the attched file where resource user John Pieratt has no appointments scheduled for the week.  I do not want to see him when I group by users unless he has appointments for the given view.

[T. Tsonev]

Hello Timothy,

You can handle the RadScheduler OnDataBound event, enumerate the appointments and remove unused resources from the Resources collection.

I hope this helps.

Regards,
Tsvetomir Tsonev
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Timothy Kruszewski]

I'n not sure how to do this, could you provide a code example please?

[Peter]

Hi Timothy,

Please, try the following approach:

protected void RadScheduler1_DataBound(object sender, EventArgs e)
   {
       //Clear all resources of type 'user':
       foreach (Resource res in RadScheduler1.Resources.GetResourcesByType("User"))
       {
           RadScheduler1.Resources.Remove(res);
       }
       //Add resources of type 'user' that are in use for the visible range of RadScheduler:
       foreach (Appointment a in RadScheduler1.Appointments.GetAppointmentsInRange(RadScheduler1.VisibleRangeStart, RadScheduler1.VisibleRangeEnd))
       {
           RadScheduler1.Resources.Add(a.Resources.GetResourceByType("User"));
       }
   }

All the best,
Peter
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Timothy Kruszewski]

Worked like a charm.  Thank you

[Timothy Kruszewski]

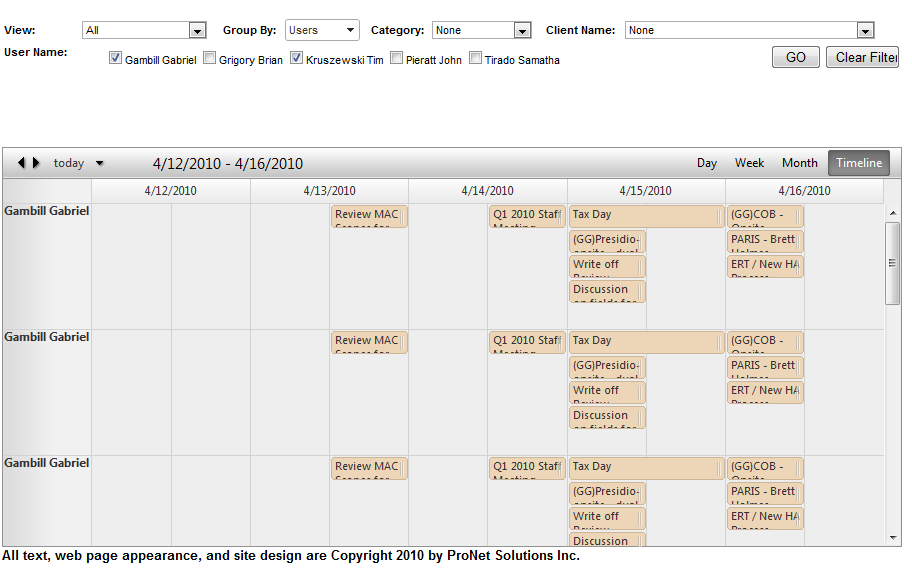

After doing more testing I've noticed a problem with the code example I was provided.  It appears that for evey entry by a particular user for the given date range it adds that user to the group by view.  So in the screen shot I provided Gabe has 9 entries for the week and he is showing up 9 times in the group by view.  Here is the code I'm using

protected void RadScheduler1_OnDataBound(object sender, EventArgs e)
    {
       //Clear all resources of type 'user':
        foreach (Resource res in RadScheduler1.Resources.GetResourcesByType("User Name"))
        {
            RadScheduler1.Resources.Remove(res);
        }
       //Add resources of type 'user' that are in use for the visible range of RadScheduler:
        foreach (Telerik.Web.UI.Appointment a in RadScheduler1.Appointments.GetAppointmentsInRange(RadScheduler1.VisibleRangeStart, RadScheduler1.VisibleRangeEnd))
        {
            RadScheduler1.Resources.Add(a.Resources.GetResourceByType("User Name"));
        }
    }

[Timothy Kruszewski]

Any word on this yet?  I've been waiting 5 days now..

[Peter]

Hi Timothy,

Indeed, the code I sent you does not take into consideration that some resources could be added more than once. To prevent this, please modify the code as follows:

protected void RadScheduler1_DataBound(object sender, EventArgs e)
   {
       //Clear all resources of type 'user':
       foreach (Resource res in RadScheduler1.Resources.GetResourcesByType("User"))
       {
           RadScheduler1.Resources.Remove(res);
       }
       //Add resources of type 'user' that are in use for the visible range of RadScheduler:
       foreach (Appointment a in RadScheduler1.Appointments.GetAppointmentsInRange(RadScheduler1.VisibleRangeStart, RadScheduler1.VisibleRangeEnd))
       {
           if(a.Resources.GetResourceByType("User") != null){
               if(!RadScheduler1.Resources.Contains(a.Resources.GetResourceByType("User")))
                   RadScheduler1.Resources.Add(a.Resources.GetResourceByType("User"));
           }
       }
   }

Regards,
Peter
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Timothy Kruszewski]

Thanks Peter, thats working great now but I discovered another hiccup with the code.  Lets say my user resource list contains 30 users but only 10 of them have scheduled items for the particular date range I'm looking at.  Those 10 users show up in the scheduler just fine but If I want to add someone who is not currently on the scheduler when I go into the form view to add them they are not in the user drop down list, only the 10 current users on the schedule are in the list.  So to sum it up is there a way to only display users with appointments in the scheduler but still have the ability to sidedly users who currently do not have appointments?

Thanks, Tim

[Peter]

I see what you mean. I tried to workaround this 'hiccup' with code, but it led to complications. I wonder if it is plausible option for you to instruct users to use different view if they want to be able to choose from the entire list of resources. In terms of code you need just one extra check in the DataBound handler:

protected void RadScheduler1_DataBound(object sender, EventArgs e)
   {
       if (RadScheduler1.SelectedView == SchedulerViewType.TimelineView)
       {
           Session["ResUserList"] = RadScheduler1.Resources.GetResourcesByType("User");
           //Clear all resources of type 'user':
           foreach (Resource res in RadScheduler1.Resources.GetResourcesByType("User"))
           {
               RadScheduler1.Resources.Remove(res);
           }
           //Add resources of type 'user' that are in use for the visible range of RadScheduler:
           foreach (Appointment a in RadScheduler1.Appointments.GetAppointmentsInRange(RadScheduler1.VisibleRangeStart, RadScheduler1.VisibleRangeEnd))
           {
               if (a.Resources.GetResourceByType("User") != null)
               {
                   if (!RadScheduler1.Resources.Contains(a.Resources.GetResourceByType("User")))
                       RadScheduler1.Resources.Add(a.Resources.GetResourceByType("User"));
               }
           }
       }
   }

Let me know what you think of this approach.


Greetings,
Peter
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Timothy Kruszewski]

That approach worked great but I need to be able to sort the resources users before they are added back to the list.  Can you provide a sample of how to do that please?

if (ddlUserView.SelectedValue == "1")
        {
            Session["ResUserList"] = RadScheduler1.Resources.GetResourcesByType("User Name");
            //Clear all resources of type 'user':
            foreach (Resource res in RadScheduler1.Resources.GetResourcesByType("User Name"))
            {
                RadScheduler1.Resources.Remove(res);
            }

            //Add resources of type 'user' that are in use for the visible range of RadScheduler:
            foreach (Telerik.Web.UI.Appointment a in RadScheduler1.Appointments.GetAppointmentsInRange(RadScheduler1.VisibleRangeStart, RadScheduler1.VisibleRangeEnd))
            {
                if (a.Resources.GetResourceByType("User Name") != null)
                {
                    if (!RadScheduler1.Resources.Contains(a.Resources.GetResourceByType("User Name")))
                        RadScheduler1.Resources.Add(a.Resources.GetResourceByType("User Name"));
                }
            }
        }

[T. Tsonev]

Hello Timothy,

The resource collection doesn't allow for easy sorting, so you'll need to populate the resource in a List<Resource>, sort it and transfer the resources in the scheduler.

Something like this:

List<Resource> list = new List<Resource>();
foreach (Appointment a in RadScheduler1.Appointments.GetAppointmentsInRange(RadScheduler1.VisibleRangeStart, RadScheduler1.VisibleRangeEnd))
{
    Resource userName = a.Resources.GetResourceByType("User Name");
    if (userName != null && !list.Contains(userName))
    {
        list.Add(userName);
    }
}

list.Sort(delegate(Resource resA, Resource resB)
{
    return resA.Text.CompareTo(resB.Text);
});

RadScheduler1.Resources.AddRange(list);

I hope this helps.

Kind regards,
Tsvetomir Tsonev
the Telerik team
