Gökhan asked on 21 Nov 2016, 01:52 PM

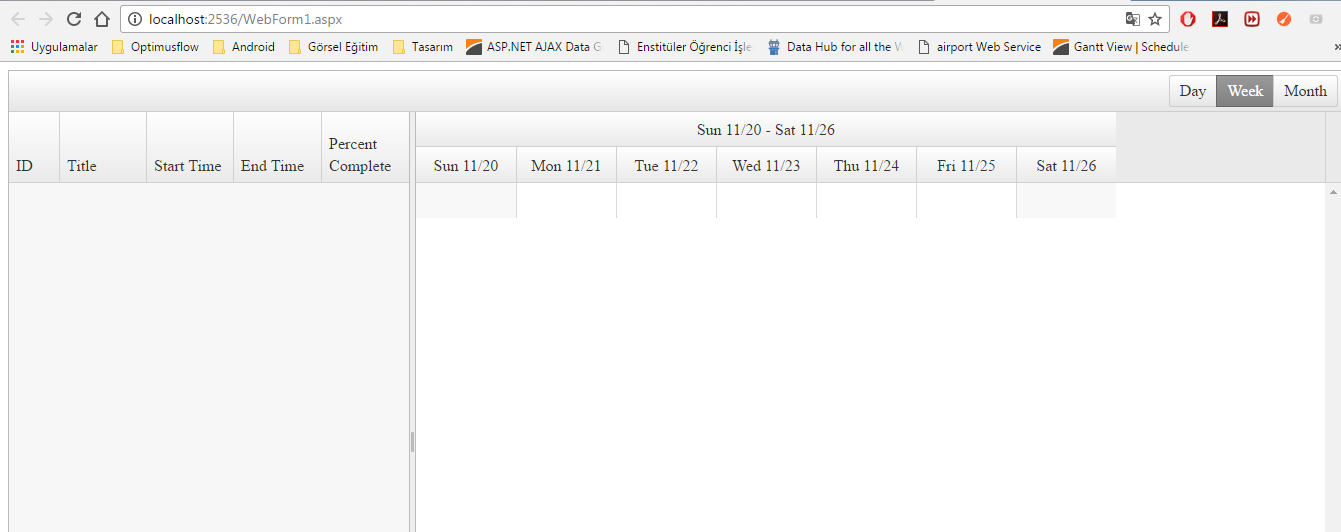

We interested your radgant product but we don't achive to show taski in grand.Also we tried every thing explained in telerik demo cenrter.

In this case how can help you to us.

I have attached the test project.

thanks.

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="WebApplication3.WebForm1" %>

<%@ Register assembly="Telerik.Web.UI" namespace="Telerik.Web.UI" tagprefix="telerik" %>
<%@ Register assembly="Telerik.Web.UI" namespace="Telerik.Web.UI.Gantt" tagprefix="cc1" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns='http://www.w3.org/1999/xhtml'>
<head id="Head1" runat="server">
<title>Telerik ASP.NET Example</title>
</head>
<body>
<form id="form1" runat="server">
<telerik:RadScriptManager runat="server" ID="RadScriptManager1" />
<telerik:RadSkinManager ID="RadSkinManager1" runat="server" ShowChooser="false" />

<div class="demo-container no-bg">
<telerik:RadGantt RenderMode="Lightweight" ID="RadGantt1"
runat="server"
DataSourceID="SqlDataSource1"
DependenciesDataSourceID="SqlDataSource2"
ReadOnly="true"
SelectedView="WeekView">
<DataBindings>
<TasksDataBindings IdField="ID" ParentIdField="ParentID" StartField="Start" OrderIdField="OrderID" SummaryField="Summary" ExpandedField="Expanded" EndField="End" TitleField="Title"
PercentCompleteField="PercentComplete" />
<DependenciesDataBindings TypeField="Type" IdField="ID" PredecessorIdField="PredecessorID" SuccessorIdField="SuccessorID" />
</DataBindings>
</telerik:RadGantt>
</div>

<asp:SqlDataSource runat="server" ID="SqlDataSource1" SelectCommand="SELECT * FROM [GanttTasks]" ConnectionString="<%$ ConnectionStrings:FLOWPOTAConnectionString %>"/>
<asp:SqlDataSource runat="server" ID="SqlDataSource2" SelectCommand="SELECT * FROM [GanttDependencies]" ConnectionString="<%$ ConnectionStrings:FLOWPOTAConnectionString %>"/>

</form>
</body>
</html>

1 Answer, 1 is accepted

answered on 22 Nov 2016, 10:06 AM

Gantt.zip

Hello Gökhan,

I attached you a sample website with a RadGantt bound to a Database provider. At my side the tasks are displayed correctly.

In order to run the website please place Telerik.Web.UI.dll and Telerik.Web.UI.Skins.dll into the bin folder of the project.

Regards,
Anton
