Telerik reports huge chart print issue

3 Answers 179 Views

General Discussions

This is a migrated thread and some comments may be shown as answers.

Kiran asked on 02 Feb 2012, 07:28 AM


Dear Telerik team ,

I have implemented the below code for external print button functionality in silverlight with a report having more than 20 pages. I have tested this using XPS printer I have found few of the pages are not printed correctly. Out of 20 pages I have found 2 pages are printing partially every time.(Page 7 and page 14). if the chart size increase it is becoming more worse.
Is is possible to show a progress bar before print dialog appears.

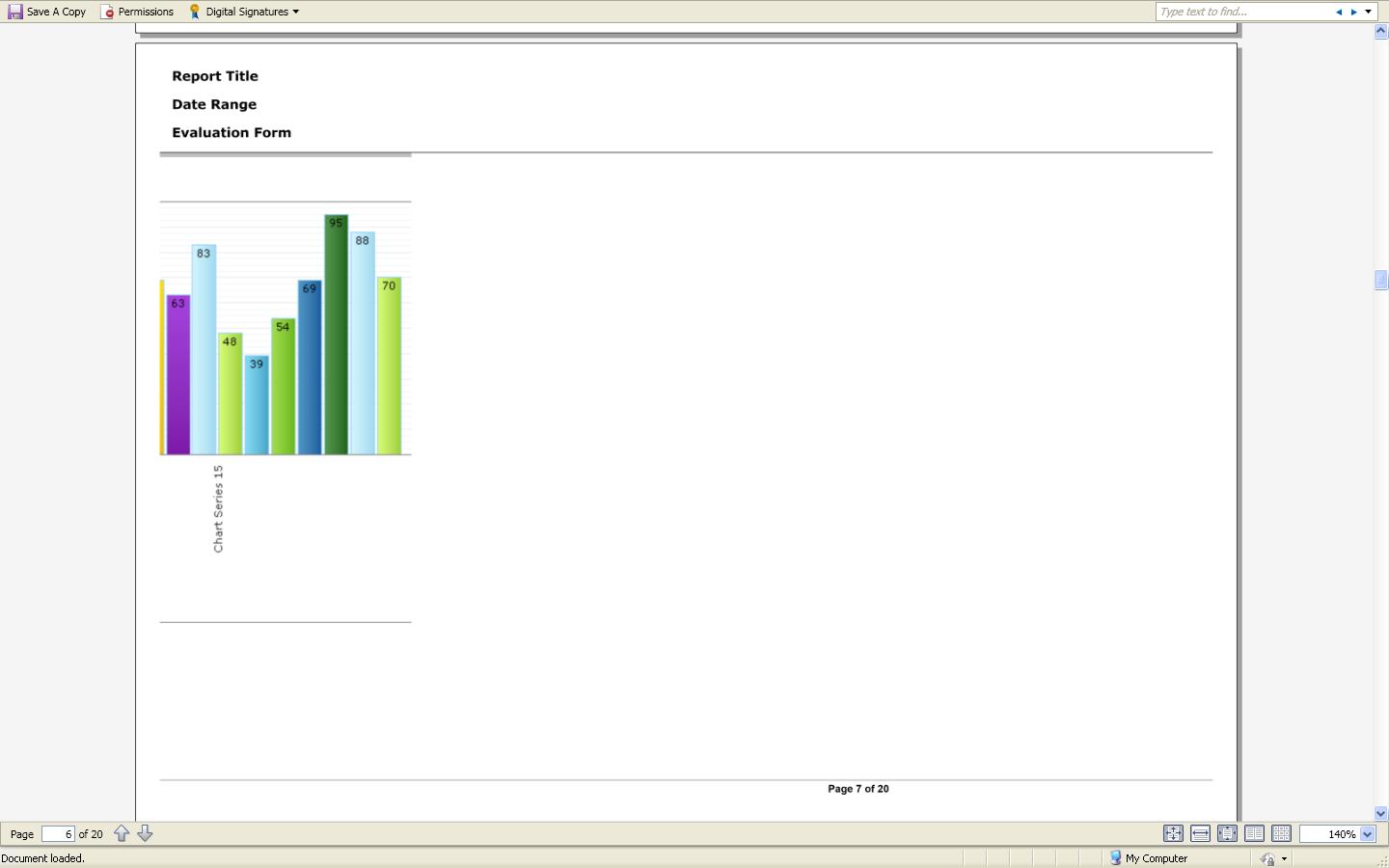

I have attached the screen shot for your reference. Please help on this issue.

MainPage.cs

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using System.Windows.Navigation;

using Telerik.ReportViewer.Silverlight;

using Telerik.Reporting.Service.SilverlightClient;

using System.ServiceModel;

using Telerik.Reporting.Service;

using System.Runtime.Serialization;

using System.IO;

using System.Text;

using System.Windows.Printing;

using System.Windows.Media.Imaging;

using System.Windows.Markup;

using System.Collections.ObjectModel;

namespace ReportsSample

{

public partial class MainPage : UserControl, IReportServiceClientFactory

{

public MainPage()

{

InitializeComponent();

this.rptViewer.ReportServiceClientFactory = this;

this.rptViewer.RenderBegin += new RenderBeginEventHandler(rptViewer_RenderBegin);

}

ReportViewerModel viewerModel;

ReportViewerModel ViewerModel

{

get

{

if (viewerModel == null && VisualTreeHelper.GetChildrenCount(this.rptViewer) > 0)

{

var layoutRoot = (FrameworkElement)VisualTreeHelper.GetChild(this.rptViewer, 0);

viewerModel = (ReportViewerModel)layoutRoot.DataContext;

}

return viewerModel;

}

void rptViewer_RenderBegin(object sender, RenderBeginEventArgs args)

{

this.rptViewer.RenderBegin -= this.rptViewer_RenderBegin;

this.ViewerModel.PropertyChanged += this.ViewerModel_PropertyChanged;

}

void ViewerModel_PropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)

{

//if (e.PropertyName == "State" && IsReadyToPrint())

//{

// this.ViewerModel.PropertyChanged -= this.ViewerModel_PropertyChanged;

// this.PrintReport();

//}

}

bool IsReadyToPrint()

{

return this.ViewerModel.State == ReportViewerStates.ViewerPage;

}

void PrintReport()

{

this.viewerModel.PrintReportCommand.Execute(null);

}

#region IReportServiceClientFactory Members

ReportServiceClient IReportServiceClientFactory.Create(System.Uri remoteAddress)

{

// remoteAddress = new Uri("../Reports/ReportService.svc", UriKind.RelativeOrAbsolute);

var binding = new BasicHttpBinding()

{

MaxBufferSize = int.MaxValue,

MaxReceivedMessageSize = int.MaxValue,

ReceiveTimeout = new TimeSpan(0, 15, 0),

SendTimeout = new TimeSpan(0, 15, 0)

};

var endpointAddress = new EndpointAddress(remoteAddress);

return new ReportServiceClient(binding, endpointAddress);

}

#endregion

Collection<Canvas> pagesList;

string instanceID;

private void btnPritNew_Click(object sender, RoutedEventArgs e)

{

try

{

this.ViewerModel.PropertyChanged -= this.ViewerModel_PropertyChanged;

this.PrintReport();

}

catch(Exception ex)

{

}

public class ReportSettingsMaster

{

public int CodeId { get; set; }

public string CodeName { get; set; }

public string CodeKey { get; set; }

}

Report.cs

#region [Assemblies References]

using System;

using Telerik.Reporting;

using Telerik.Reporting.Drawing;

using System.Data;

using System.Collections.Generic;

using Telerik.Reporting.Charting;

using Telerik.Reporting.Charting.Styles;

using System.Runtime.Serialization;

using System.IO;

using System.Text;

using System.Drawing;

using System.Linq;

#endregion

namespace Telstrat.Reports

{

/// <summary>

/// Summary description for Report1.

/// </summary>

public partial class SampleEvaluationsReport : Telerik.Reporting.Report

{

DataTable dtResults = new DataTable();

#region [Constructor]

public SampleEvaluationsReport()

{

//Providing the DataSource event for the report

InitializeComponent();

for (int i = 0; i < 15; i++)

{

dtResults.Columns.Add(" Column " + i.ToString(), i == 0 ? typeof(string) : typeof(int));

}

for (int i = 0; i < 70; i++)

{

Random r = new Random();

dtResults.Rows.Add(new object[] { "Chart Series "+i.ToString(),

r.Next(100),

r.Next(100) }

);

}

generateChart(dtResults,1,2);

}

#endregion

#region [generateChart]

private float _standardHeight = 11.7f;

private double _reportMargin = 0;

private int formatedLabelmaxlength = 0;

private int formatedLabelmaxdepth = 0;

private string formatTextWrap(string sourceText)

{

int divider = 80;

string[] sourceTextlist = sourceText.Split(' ');

int lineCount = 0;

string strResultText = string.Empty;

string strLine = string.Empty;

foreach (string strWord in sourceTextlist)

{

if (strLine.Length < divider)

{

strLine += strWord + " ";

formatedLabelmaxlength = formatedLabelmaxlength < strLine.Length ? strLine.Length : formatedLabelmaxlength;

}

else

{

formatedLabelmaxlength = formatedLabelmaxlength < strLine.Length ? strLine.Length : formatedLabelmaxlength;

lineCount++;

strResultText += strLine + "\n";

strLine = string.Empty;

}

if (strLine.Length > 0)

{

strResultText += strLine;

}

formatedLabelmaxdepth = formatedLabelmaxdepth < lineCount ? lineCount : formatedLabelmaxdepth;

return strResultText;

}

private void generateChart(DataTable dtResults, int chartType, int GraphType)

{

ChartSeriesType CurrentChartType = ChartSeriesType.Bar;

ChartSeriesOrientation ChartOrientation = ChartSeriesOrientation.Vertical;

float reportWidth = 5;

float reportHeight = 5;

float xAxisMargin = 0f;

float xAxisLableMargin = 0f;

int xAxisRotationAngle = 0;

AlignedPositions xAxisTextAlignedPositions = AlignedPositions.Left;

AlignedPositions xAxisLabelAlignedPositions = AlignedPositions.Top;

AlignedPositions xAxisAxisLabel = AlignedPositions.Top;

#region Format Data

for (int i = 0; i < dtResults.Rows.Count; i++)

{

dtResults.Rows[i][0] = formatTextWrap(dtResults.Rows[i][0].ToString());

}

#endregion

#region Graph Type

switch (chartType)

{

case 1://Column

CurrentChartType = ChartSeriesType.Bar;

ChartOrientation = ChartSeriesOrientation.Vertical;

xAxisTextAlignedPositions = AlignedPositions.Left;

xAxisLabelAlignedPositions = AlignedPositions.Top;

xAxisAxisLabel = AlignedPositions.Top;

xAxisRotationAngle = 270;

break;

case 2: //Bar

CurrentChartType = ChartSeriesType.Bar;

ChartOrientation = ChartSeriesOrientation.Horizontal;

xAxisTextAlignedPositions = AlignedPositions.Left;

xAxisLabelAlignedPositions = AlignedPositions.Right;

xAxisAxisLabel = AlignedPositions.Left;

xAxisRotationAngle = 0;

#region Reverse the Data

DataTable clonedtResults;

clonedtResults = dtResults.Clone();

for (int intRow = dtResults.Rows.Count - 1; intRow >= 0; intRow--)

{

clonedtResults.ImportRow(dtResults.Rows[intRow]);

}

dtResults.Rows.Clear();

foreach (DataRow dr in clonedtResults.Rows)

{

dtResults.ImportRow(dr);

}

#endregion

break;

case 3: //Line

CurrentChartType = ChartSeriesType.Line;

ChartOrientation = ChartSeriesOrientation.Vertical;

xAxisTextAlignedPositions = AlignedPositions.Left;

xAxisLabelAlignedPositions = AlignedPositions.Top;

xAxisAxisLabel = AlignedPositions.Top;

xAxisRotationAngle = 270;

break;

default: break;

}

#endregion

int totalBarCount = dtResults.Rows.Count * (dtResults.Columns.Count - 1);

int maxXAxisTextlength = formatedLabelmaxlength > 80 ? 80 : formatedLabelmaxlength;

GetChartProperties(ChartOrientation, totalBarCount, maxXAxisTextlength, ref reportWidth, ref reportHeight, ref xAxisMargin, ref xAxisLableMargin);

#region Chart Formating

this.chartGeneric.Skin = "Mac";

this.chartGeneric.AutoLayout = false;

this.chartGeneric.AutoTextWrap = false;

this.chartGeneric.BitmapResolution = 96F;

this.chartGeneric.ImageFormat = System.Drawing.Imaging.ImageFormat.Png;

this.chartGeneric.ChartTitle.Visible = false;

this.chartGeneric.PlotArea.Appearance.Position.X = 0;

this.chartGeneric.PlotArea.Appearance.Position.Y = 0;

this.chartGeneric.PlotArea.Chart.Appearance.Position.X = 0;

this.chartGeneric.PlotArea.Chart.Appearance.Position.Y = 0;

this.chartGeneric.PlotArea.EmptySeriesMessage.TextBlock.Text = "There is nothing to display";

this.chartGeneric.PlotArea.XAxis.AxisLabel.Visible = true;

this.chartGeneric.PlotArea.YAxis.AxisLabel.Visible = true;

this.chartGeneric.SeriesOrientation = ChartOrientation;

this.chartGeneric.PlotArea.XAxis.AxisLabel.Appearance.Dimensions.Margins = new ChartMargins(0);

this.chartGeneric.PlotArea.XAxis.AxisLabel.Appearance.Dimensions.Paddings = new ChartPaddings(0);

this.chartGeneric.PlotArea.XAxis.AutoShrink = false;

this.chartGeneric.PlotArea.XAxis.AutoScale = false;

this.chartGeneric.PlotArea.XAxis.Appearance.TextAppearance.MaxLength = 255;

this.chartGeneric.PlotArea.XAxis.Appearance.TextAppearance.AutoTextWrap = AutoTextWrap.False;

this.chartGeneric.Appearance.TextQuality = TextQuality.SystemDefault;

this.chartGeneric.PlotArea.XAxis.Appearance.Color = Color.Black;

this.chartGeneric.PlotArea.XAxis.LayoutMode = ChartAxisLayoutMode.Between;

this.chartGeneric.DefaultType = CurrentChartType;

this.chartGeneric.PlotArea.XAxis.AxisLabel.TextBlock.Text = dtResults.Columns[0].ColumnName;

this.chartGeneric.PlotArea.YAxis.AxisLabel.TextBlock.Text = "(in numbers) ";

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Top = 50;

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Right = 250;

this.chartGeneric.Appearance.BarWidthPercent = totalBarCount > 5 ? 100 : 20;

this.chartGeneric.Appearance.BarOverlapPercent = -10;

this.chartGeneric.PlotArea.XAxis.AxisLabel.Appearance.Dimensions.Margins.Left = new Telerik.Reporting.Charting.Styles.Unit(5);

this.chartGeneric.PlotArea.XAxis.Appearance.TextAppearance.Position.AlignedPosition = xAxisTextAlignedPositions;

this.chartGeneric.PlotArea.XAxis.Appearance.LabelAppearance.Position.AlignedPosition = xAxisLabelAlignedPositions;

this.chartGeneric.PlotArea.XAxis.AxisLabel.Appearance.Position.AlignedPosition = xAxisAxisLabel;

this.chartGeneric.PlotArea.XAxis.Appearance.LabelAppearance.RotationAngle = xAxisRotationAngle;

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Left = 50;

if (ChartOrientation == ChartSeriesOrientation.Vertical)

{

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Left = 50;

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Bottom = xAxisMargin;

this.chartGeneric.PlotArea.XAxis.Appearance.TextAppearance.Dimensions.Margins.Bottom = xAxisLableMargin;

}

else

{

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Left = xAxisMargin;

this.chartGeneric.PlotArea.Appearance.Dimensions.Margins.Bottom = 50;

this.chartGeneric.PlotArea.XAxis.Appearance.TextAppearance.Dimensions.Margins.Left = xAxisLableMargin;

}

#endregion

#region Legend Formating

this.chartGeneric.Legend.Appearance.Position.AlignedPosition = AlignedPositions.TopRight;

this.chartGeneric.Legend.Appearance.Dimensions.Margins = new ChartMargins(5);

this.chartGeneric.Legend.Appearance.Dimensions.Paddings = new ChartPaddings(5);

this.chartGeneric.Legend.Appearance.Overflow = Overflow.Column;

this.chartGeneric.Legend.Appearance.Dimensions.Width = 75;

this.chartGeneric.Legend.Appearance.ItemTextAppearance.AutoTextWrap = AutoTextWrap.True;

this.chartGeneric.Legend.Appearance.Location = LabelLocation.OutsidePlotArea;

this.chartGeneric.Legend.Appearance.ItemTextAppearance.Position.AlignedPosition = AlignedPositions.Top;

#endregion

#region Chart Series

chartGeneric.Series.Clear();

chartGeneric.DataSource = dtResults;

List<ChartSeries> chartSeries = new List<ChartSeries>();

chartGeneric.PlotArea.XAxis.DataLabelsColumn = dtResults.Columns[0].ColumnName.Trim();

for (int counter = 1; counter < dtResults.Columns.Count; counter++)

{

ChartSeries series = new ChartSeries()

{

DataYColumn = dtResults.Columns[counter].ColumnName,

Name = dtResults.Columns[counter].Caption,

YAxisType = ChartYAxisType.Primary,

Type = chartGeneric.DefaultType

};

//series.Appearance.FillStyle.FillType = FillType.Gradient;

series.Appearance.LabelAppearance.LabelLocation = Telerik.Reporting.Charting.Styles.StyleSeriesItemLabel.ItemLabelLocation.Inside;

//series.Appearance.TextAppearance.FillStyle.MainColor = Color.White;

//series.Appearance.TextAppearance.FillStyle.FillType = FillType.Solid;

if (ChartOrientation == ChartSeriesOrientation.Vertical)

{

series.Appearance.LabelAppearance.Position.AlignedPosition = AlignedPositions.Top;

}

else

{

series.Appearance.LabelAppearance.Position.AlignedPosition = AlignedPositions.Right;

}

series.Appearance.BarWidthPercent = 90;

series.Appearance.TextAppearance.TextProperties.Color = Color.Black;

series.Appearance.TextAppearance.Dimensions.Margins = new ChartMargins(0);

series.Appearance.TextAppearance.Dimensions.Paddings = new ChartPaddings(0);

//series.Appearance.TextAppearance.TextProperties.Font = new System.Drawing.Font(FontFamily.GenericSansSerif, 12, GraphicsUnit.Pixel);

chartSeries.Add(series);

}

// add the series to the chart, chart to page.

chartGeneric.Series.AddRange(chartSeries.ToArray());

#endregion

#region Chart Dimensions

this.chartGeneric.Docking = DockingStyle.None;

this.chartGeneric.Appearance.Position.AlignedPosition = AlignedPositions.Center;

this.chartGeneric.Location = new PointU(new Telerik.Reporting.Drawing.Unit(0), new Telerik.Reporting.Drawing.Unit(0));

this.chartGeneric.Width = new Telerik.Reporting.Drawing.Unit(reportWidth, Telerik.Reporting.Drawing.UnitType.Inch);

this.chartGeneric.Height = new Telerik.Reporting.Drawing.Unit(reportHeight, Telerik.Reporting.Drawing.UnitType.Inch);

//this.chartGeneric.Width = new Telerik.Reporting.Drawing.Unit(8, Telerik.Reporting.Drawing.UnitType.Inch);

//this.chartGeneric.Height = new Telerik.Reporting.Drawing.Unit(10, Telerik.Reporting.Drawing.UnitType.Inch);

#endregion

#region Page Dimensions

this.PageSettings.PaperKind = System.Drawing.Printing.PaperKind.Custom;

this.PageSettings.Landscape = true;

this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(8.27, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(11.69f, Telerik.Reporting.Drawing.UnitType.Inch));

//this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(reportWidth + 0.5, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(reportHeight + 1.0 + this.pageHeaderSection1.Height.Value, Telerik.Reporting.Drawing.UnitType.Inch));

//this.PageSettings.PaperKind = System.Drawing.Printing.PaperKind.Custom;

//Setting the page Width and Height

// this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(7.0f + 0.5, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(10.25f, Telerik.Reporting.Drawing.UnitType.Inch));

//if (GraphType == 2)

//{

//    this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(reportWidth + 0.5, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(_standardHeight, Telerik.Reporting.Drawing.UnitType.Inch));

//}

//else

//{

//    this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(_standardHeight, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(reportHeight + 1.0 + this.pageHeaderSection1.Height.Value, Telerik.Reporting.Drawing.UnitType.Inch));

//}

//this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(10, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(12, Telerik.Reporting.Drawing.UnitType.Inch));

// this.PageSettings.Landscape = true;

//            this.PageSettings.PaperSize = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(10, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(reportHeight + 1.0 + this.pageHeaderSection1.Height.Value, Telerik.Reporting.Drawing.UnitType.Inch));

#endregion

}

private void GetChartProperties(ChartSeriesOrientation objChartOrientation, int totalBarCount, int maxXAxisTextlength, ref float reportWidth, ref float reportHeight, ref float xAxisMargin, ref float xAxisLableMargin)

{

if (objChartOrientation == ChartSeriesOrientation.Horizontal)

{

float tempwidth = reportWidth;

reportWidth = reportHeight;

reportHeight = tempwidth;

}

xAxisMargin = (maxXAxisTextlength * 7) + 60;

xAxisLableMargin = (maxXAxisTextlength * 6) + 10;

if (objChartOrientation == ChartSeriesOrientation.Vertical)

{

if (maxXAxisTextlength > 50)

{

reportHeight += (float)(6 - (reportWidth - (maxXAxisTextlength * 0.0625)));

}

if (formatedLabelmaxdepth < totalBarCount)

{

if (totalBarCount > 5)

{

//reportWidth += (float)reportWidth + (totalBarCount - 3) / 9;

reportWidth += (float)reportWidth + (totalBarCount * .3f);

}

else

{

if (formatedLabelmaxdepth > 3)

{

reportWidth += (float)reportWidth + (formatedLabelmaxdepth * .1f);

}

else

{

if (maxXAxisTextlength > 50)

{

reportWidth += (float)(8 - (reportWidth - (maxXAxisTextlength * 0.0625)));

}

if (formatedLabelmaxdepth < totalBarCount)

{

if (totalBarCount > 5)

{

// reportHeight += (float)reportHeight + (totalBarCount - 5) / 9;

reportHeight += (float)reportHeight + (totalBarCount * .3f);

}

else

{

if (formatedLabelmaxdepth > 3)

{

reportHeight += (float)reportHeight + (formatedLabelmaxdepth * .1f);

}

reportHeight = reportHeight > 300 ? 300 : reportHeight;

reportWidth = reportWidth > 300 ? 300 : reportWidth;

}

#endregion

}

Thanks.

regards,
Kiran

3 Answers, 1 is accepted

answered on 06 Feb 2012, 05:58 PM

Report-PDF.zip

Hello Kiran,

We were not able to reproduce such problem on our end. Find attached the report we used and the exported PDF file. If you're still having problems, we would appreciate if you open a support ticket and attach a sample project (the whole thing) so we can run it as is. You can also upload it to a free file hosting and provide a link here.

Kind regards,
Steve
the Telerik team

Sharpen your .NET Ninja skills! Attend Q1 webinar week and get a chance to win a license! Book your seat now >>
