Telerik Reporting Style For Angular Cli

2 posts, 0 answers
  1. Hanaa
    Hanaa avatar
    1 posts
    Member since:
    Apr 2018

    Posted 20 Mar Link to this post

    Prerequisites:

    Test Case:

    • Display Report  without MultiSelect.
    • Display Report with MultiSelect in the same page.

    Expected: MultiSelect should display fine besides Telerik Report.

    Actual: MultiSelect Displayed with corrupted style.

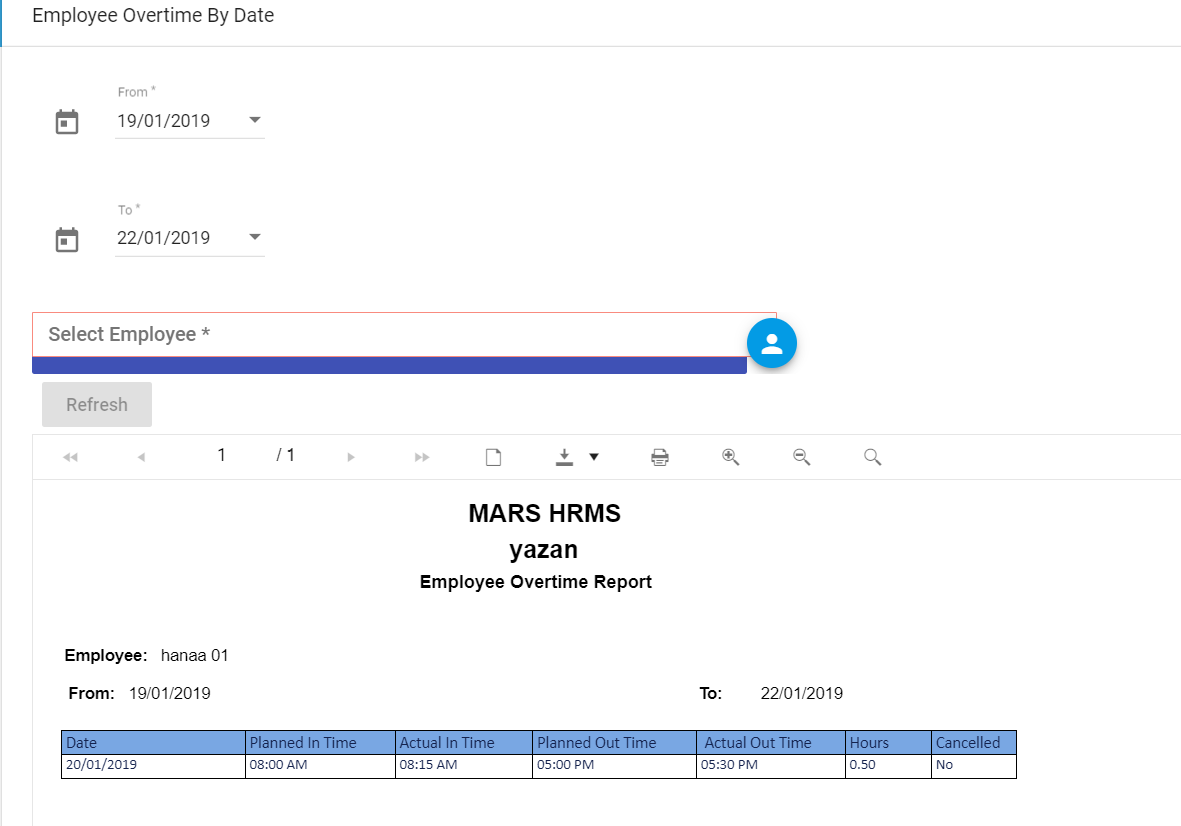

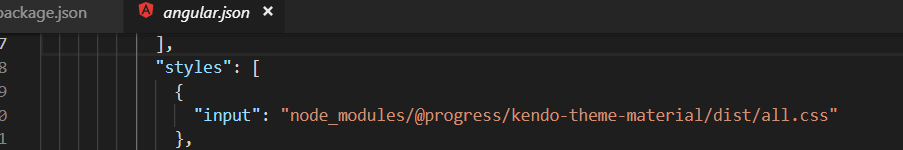

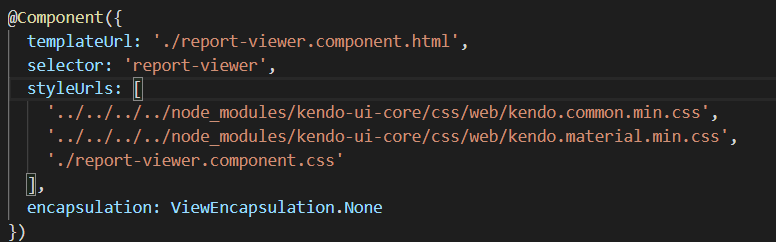

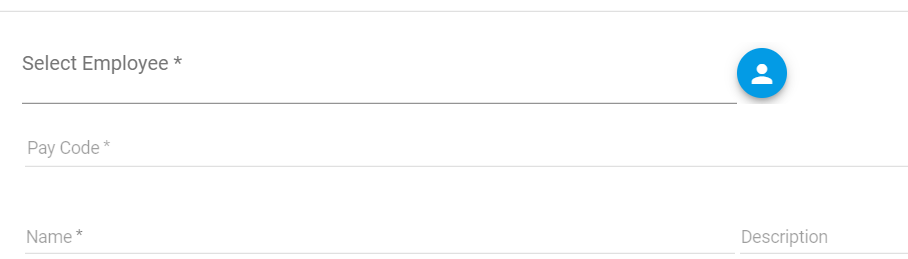

    You can check and review my screen shoots for packages used and multiselect with report and without display.

  2. Silviya
    Admin
    Silviya avatar
    350 posts

    Posted 25 Mar Link to this post

    Hi Hanaa,

    Based on the provided information and the screenshots, we assume that you have custom report parameters UI, which is Kendo MultiSelect widget. However, on the reporthtml.png, I noticed that there are no available parameter values in the dropdown. This help article explains step-by-step how to use custom parameters UI to update the report parameters instead of using the report viewer's default implementation of the parameters area: How To: Pass Values to Report Parameters.

    Please note that as of R1 2019 we provide out-of-the-box editors that allow the user to defined parameters options for the report parameters. In Angular project to set up a Kendo MultiSelect widget for multivalued parameters, you should add the following code snippet in the viewer's initialization file:
    <tr-viewer #viewer1
        [reportSource]="{
            report: 'Testing/Report1',
            parameters: {}
        }"
    ...
        [parameters]="{
            editors: {
               // singleSelect: 'COMBO_BOX', for single-value parameters
                multiSelect: 'COMBO_BOX' //for multi-value parameters
            }
        }">

    If the issue still persists, we would like to review the problematic project. Please open a new support ticket where you could attach the project for further investigation.

    Best Regards,
    Silviya
    Progress Telerik
