Telerik Reporting Cross tab report - "MaxDepth of 64 has been exceeded" while adding more columns to row group

[Aneesh]

We have a Telerik HTML5  report designer integrated in a .net 4.8 MVC application . Our requirement is to design cross tab reports. Data is populated from  stored procedures.  Around 40 - 45 columns need to be added in the row group of cross tab.  The issue is, after adding 30 columns, getting the below error message. Also it does not allow to save report.

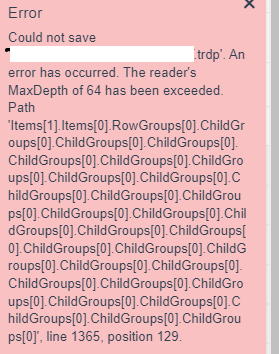

Could not save 'Reportxxx.trdp'. An error has occurred. The reader's MaxDepth of 64 has been exceeded.

Any option to set max depth in .net 4.8?

Screenshot given below.

[Momchil]

Hi Aneesh,

This error is most likely thrown by the Newtonsoft.Json package as we use it for report serialization (see the Getting "The reader's MaxDepth of 64 has been exceeded" error Stack Overflow thread for reference).

In .NET Core applications, setting the MaxDepth can be done where the services are configured (see the How can I increase the JSON deserialization MaxDepth limit in ASP.NET Core Stack Overflow thread).

However, I am not sure how the same can be done in .NET Framework applications. Perhaps an approach analogical to the one described in the Setting Library Parameter Globally Stack Overflow thread could work.

I hope this helps.

Best Regards,
Momchil
Progress Telerik
